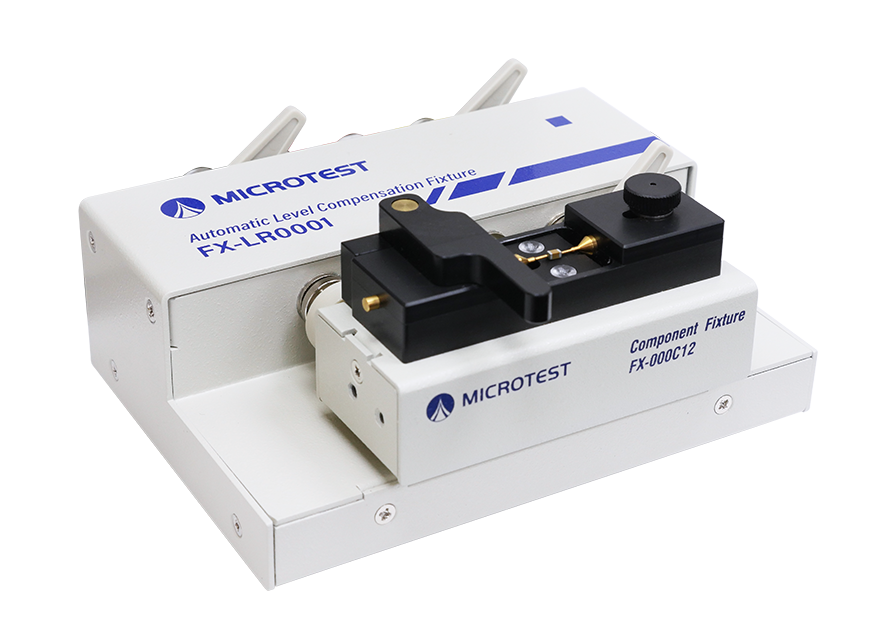

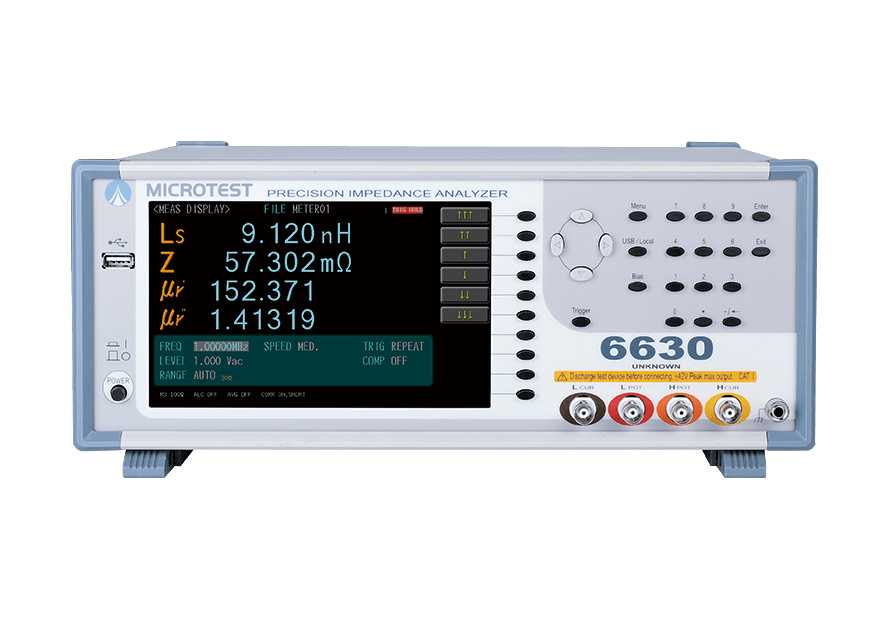

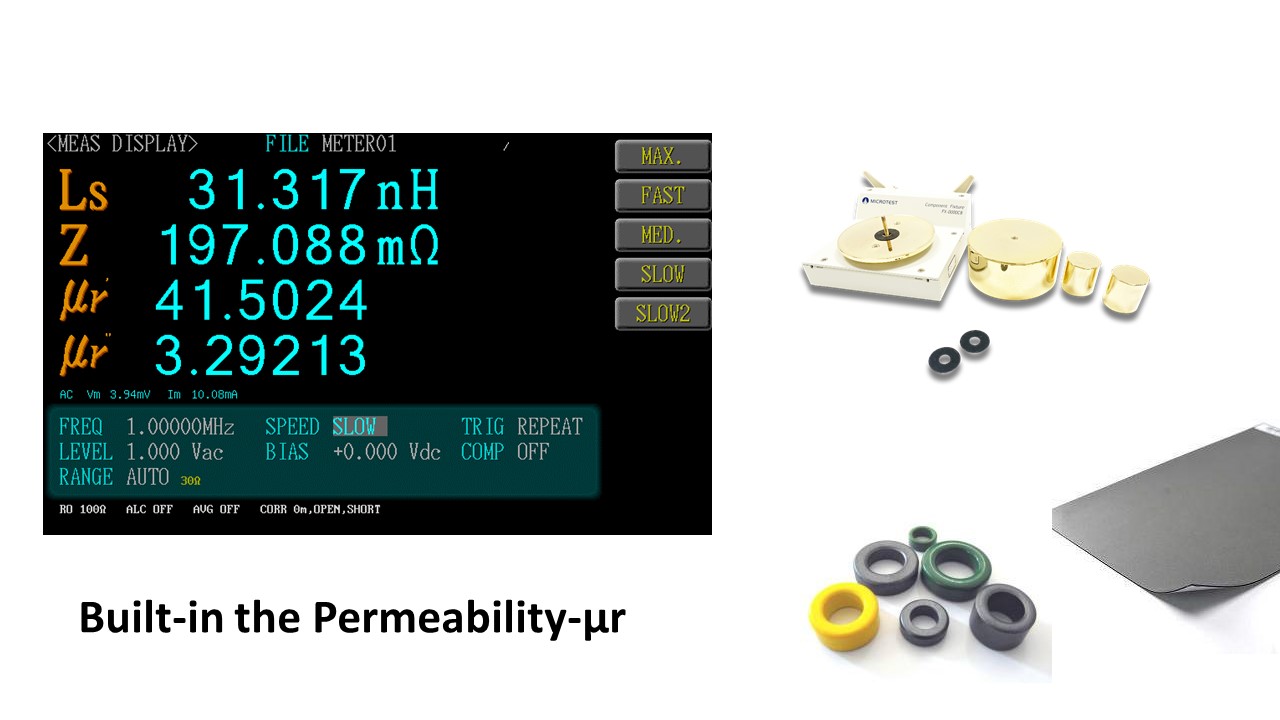

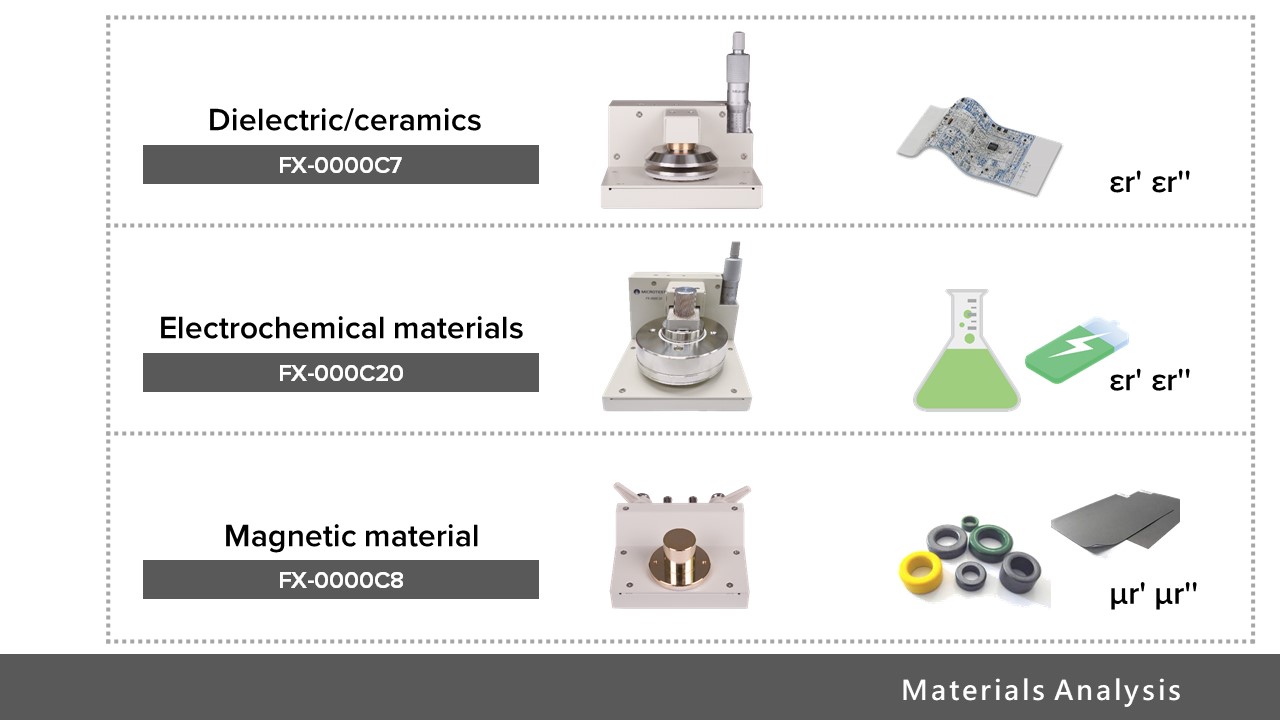

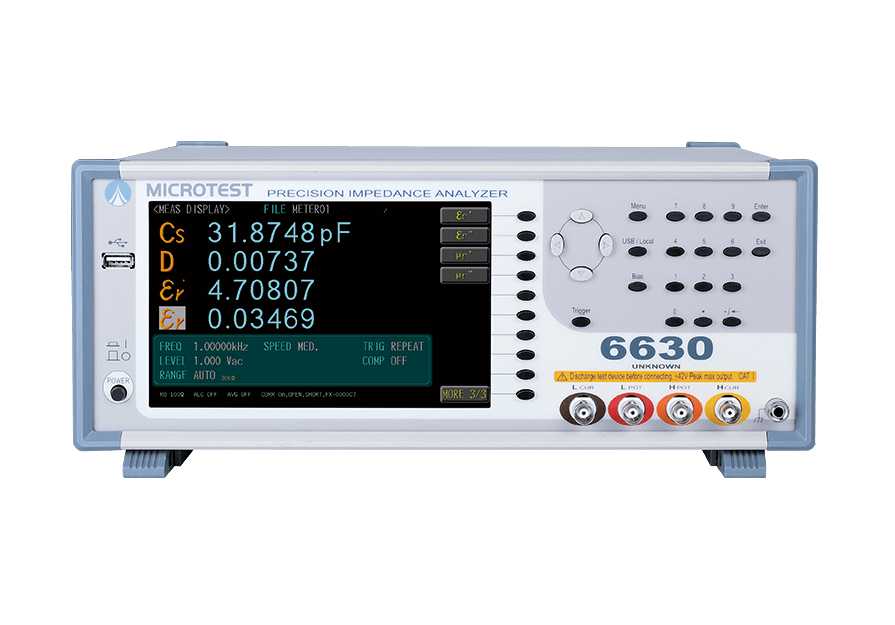

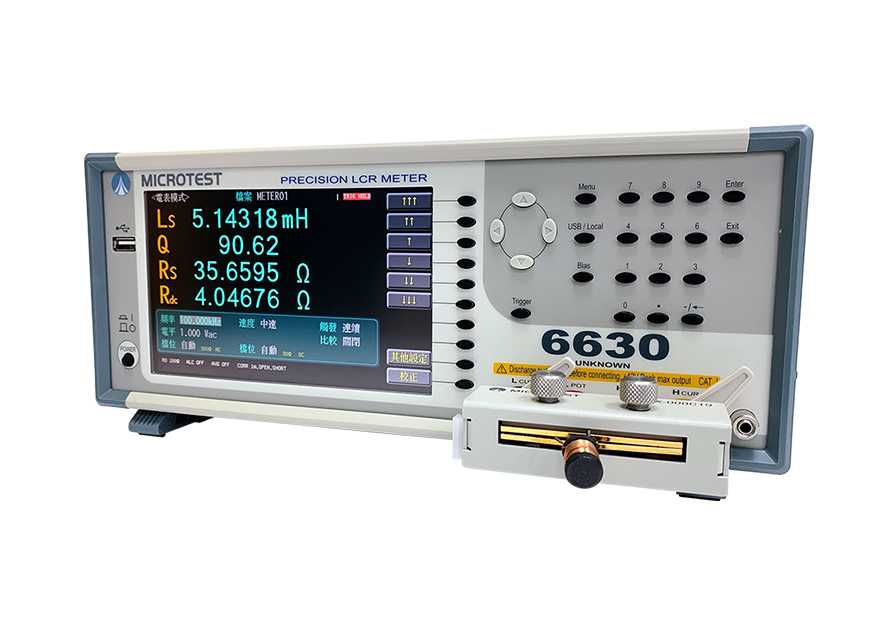

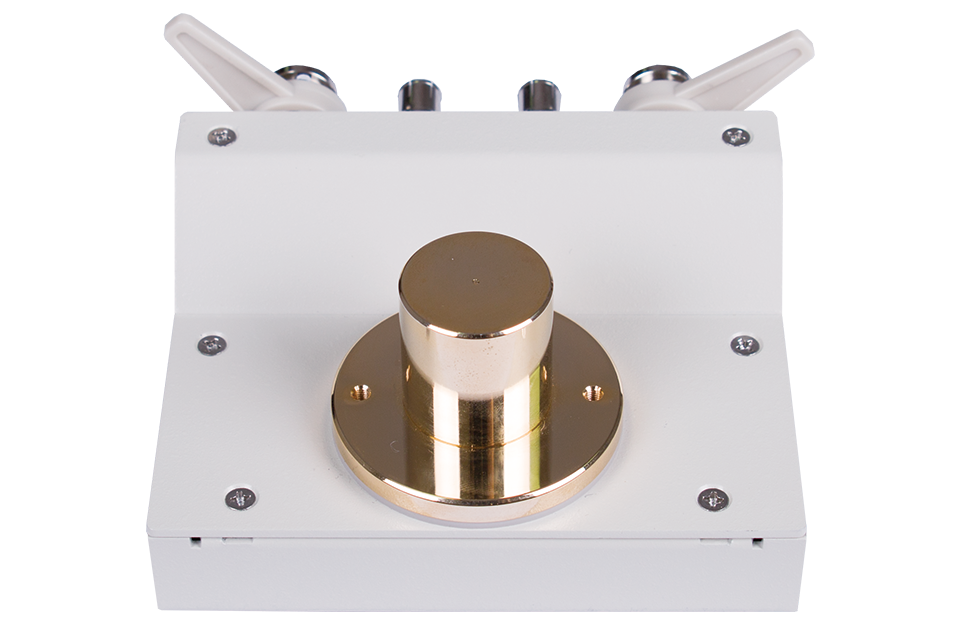

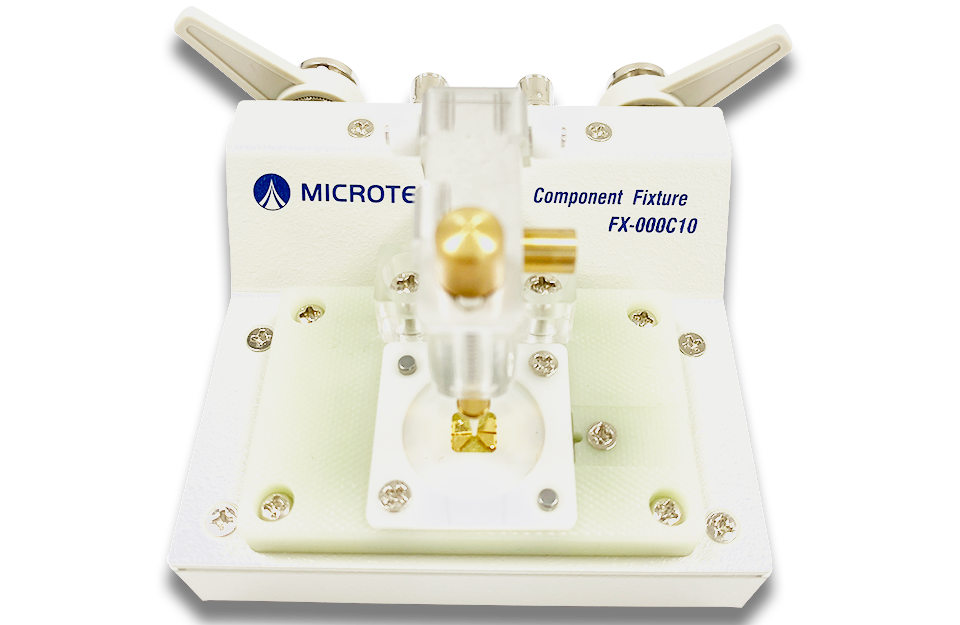

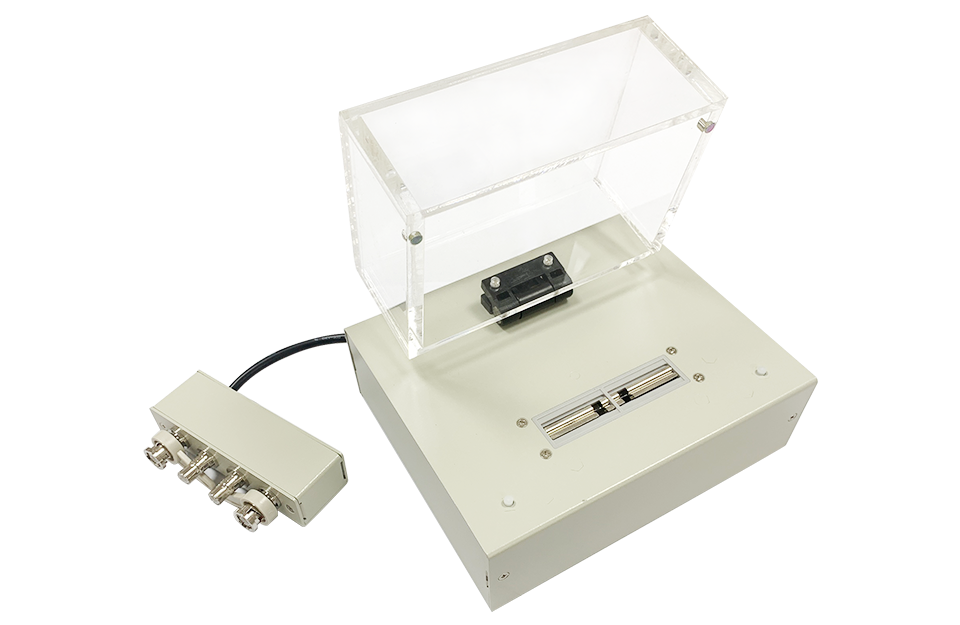

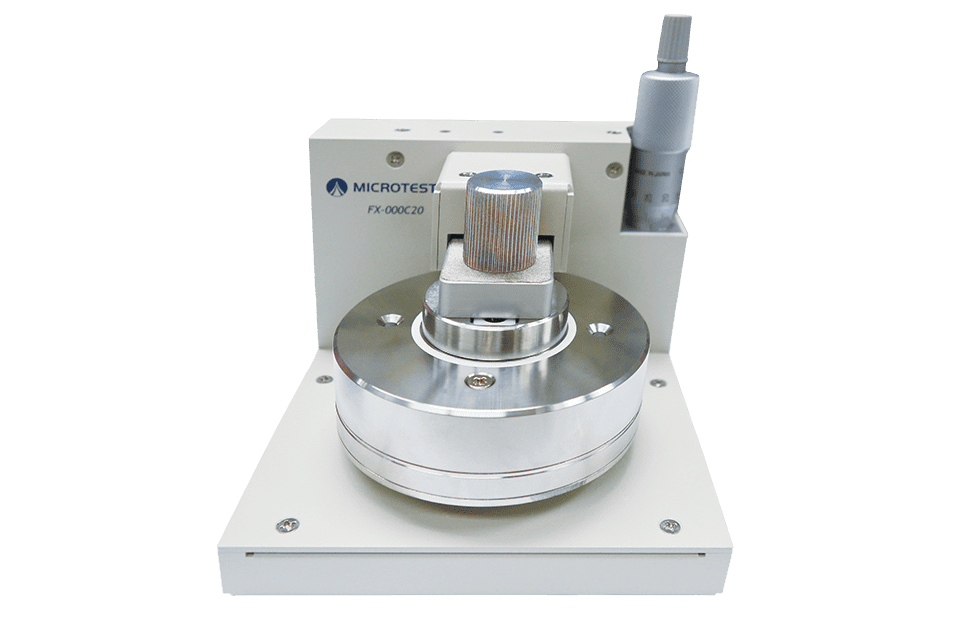

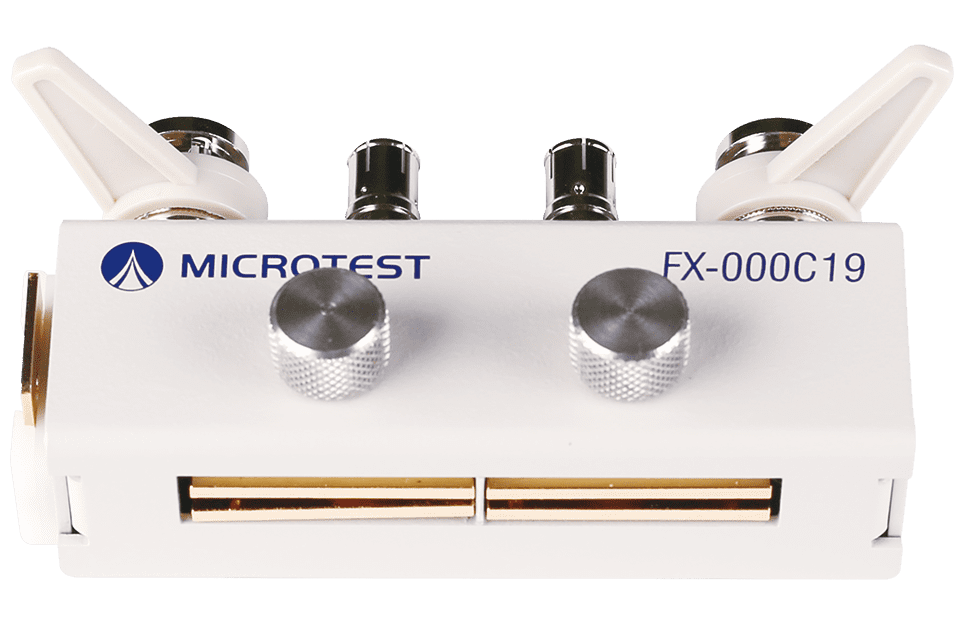

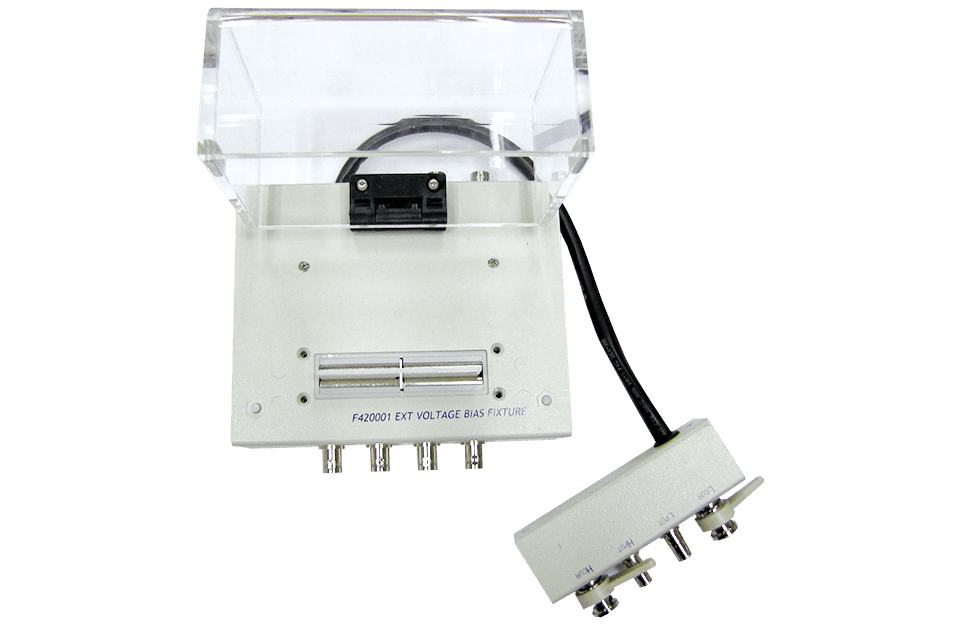

MICROTEST 6630 LCR Tester provides a wide frequency range of 10Hz to 50MHz for measuring the impedance characteristics of components and materials. The measured parameters include |Z| (impedance), |Y| (admittance), θ (phase angle), X (reactance), R (series/parallel resistance), G (conductance), B (susceptance), L (inductance), D (dissipation factor), Q (quality factor), DCR (DC resistance), C (capacitance), ESR (equivalent series resistance), ε (relative permittivity), and μr (relative permeability). With a measurement speed of up to 3mS, it is an excellent choice for automated inductor testing. It supports LAN/USB Host/USB Device/RS-232 communication interfaces, making it compatible with automation equipment or human-machine interfaces (PLC).
Selection
| 6630 Series | |||||||
| Model | 6630-1 | 6630-3 | 6630-5 | 6630-10 | 6630-20 | 6630-30 | 6630-50 |
| Frequency |
10Hz- 1MHz |
10Hz- 3MHz |
10Hz- 5MHz |
10Hz- 10MHz |
10Hz- 20MHz |
10Hz- 30MHz |
10Hz- 50MHz |
SPEC
| Model | 6630 | |
| Frequency Range | 10Hz-50MHz | |
| Frequency Setting | Continuity | |
| Frequency Resolution | ±0.01% | |
| Frequency Output Accuracy | 100mHz, 6-bit Frequency Input | |
| Basic Accuracy | typical ±0.05% | |
| AC Drive Level | Test Signal Voltage Level |
10mV - 2Vrms(100Ω) 10mV - 1Vrms(25Ω) |
| Voltage Minimum Resolution | 1mV | |
| Accuracy |

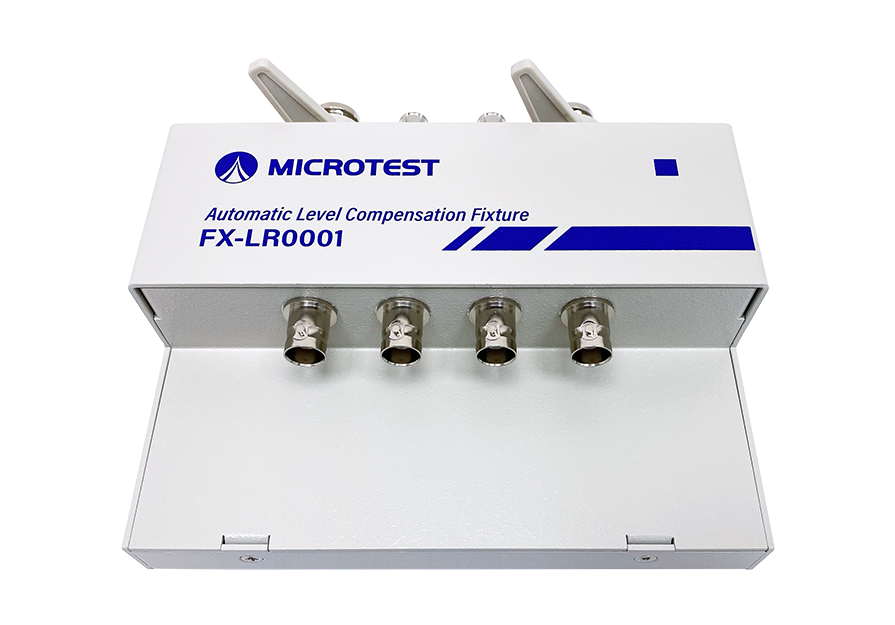

ALC ON：6％ * Voltage ±2mV ALC OFF：10％ * Voltage ±2mV |
|
| Test Signal Current Level | 200µA - 20mArms | |
| Current Minimum Resolution | 10µA | |
| Accuracy |
ALC ON：6％ * Current ± 20µA ALC OFF：10％ * Current ± 20µA |
|

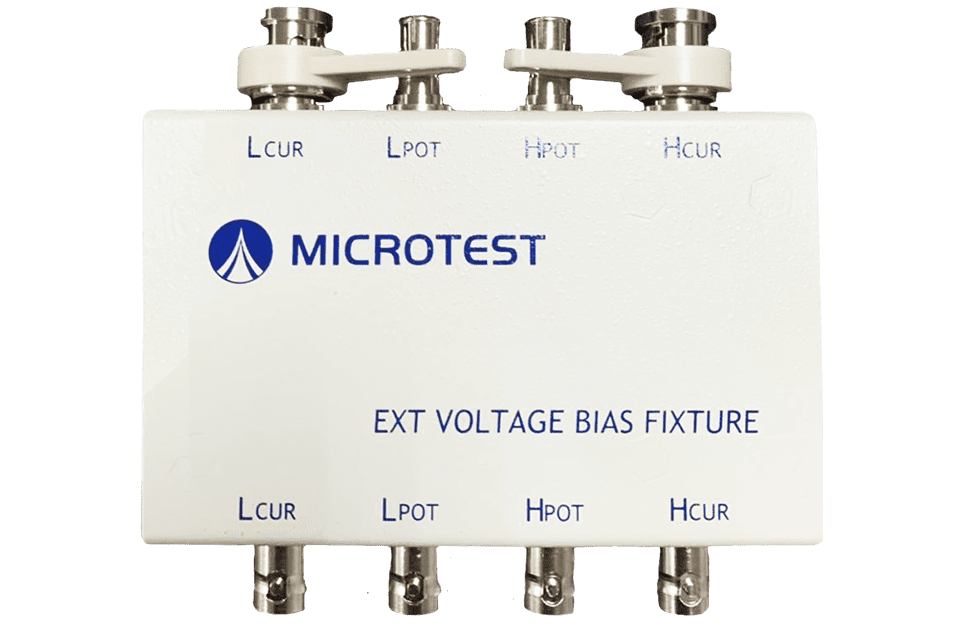

| DC Drive Level | 1V (fixed) | |
| Output Impedance | 25Ω/100Ω (switchable) | |

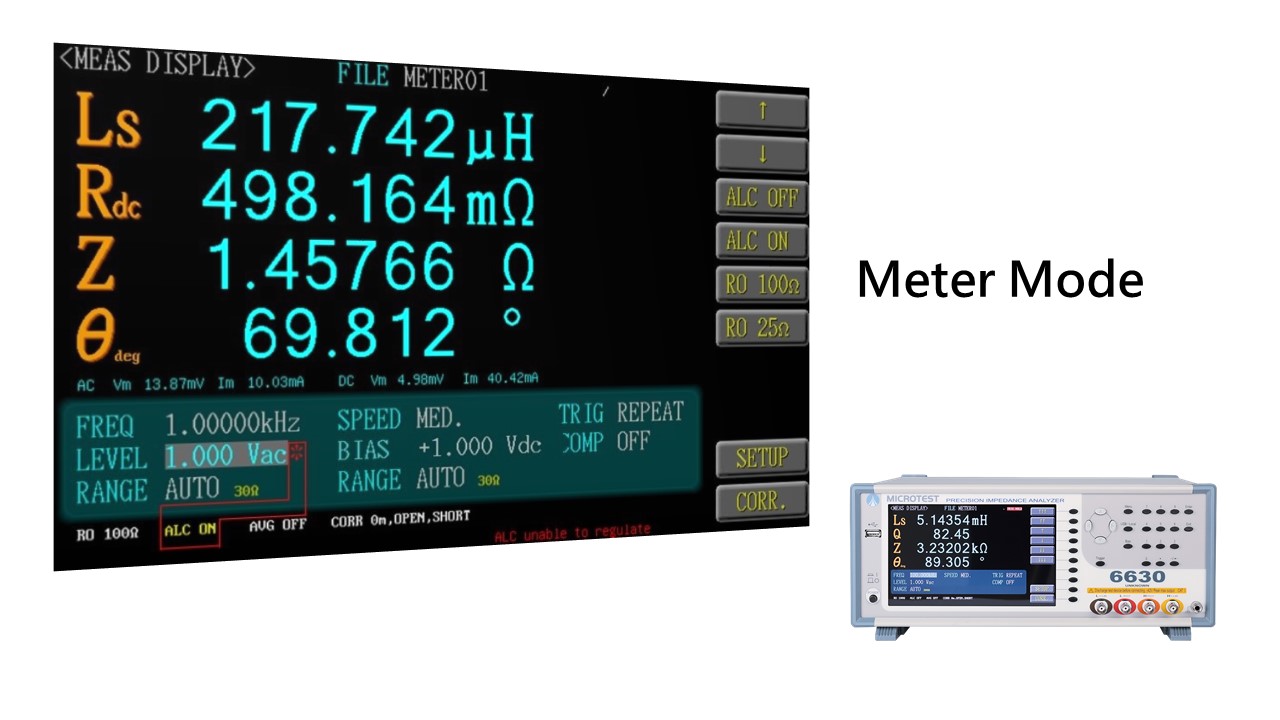

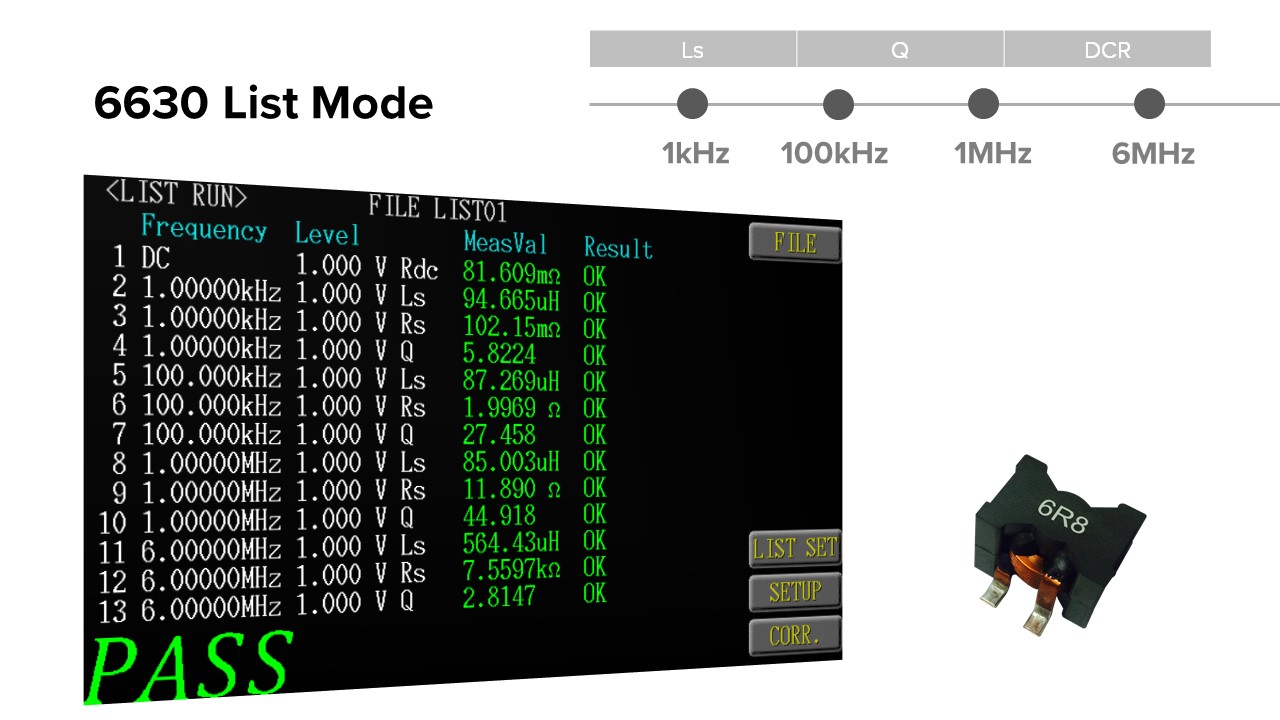

| Measurement Mode | Meter mode, list mode | |
| Measurement Parameters |
|Z|、|Y|、θ、X、R、G、B、L、D、Q、DCR、C、ε and μr |
|

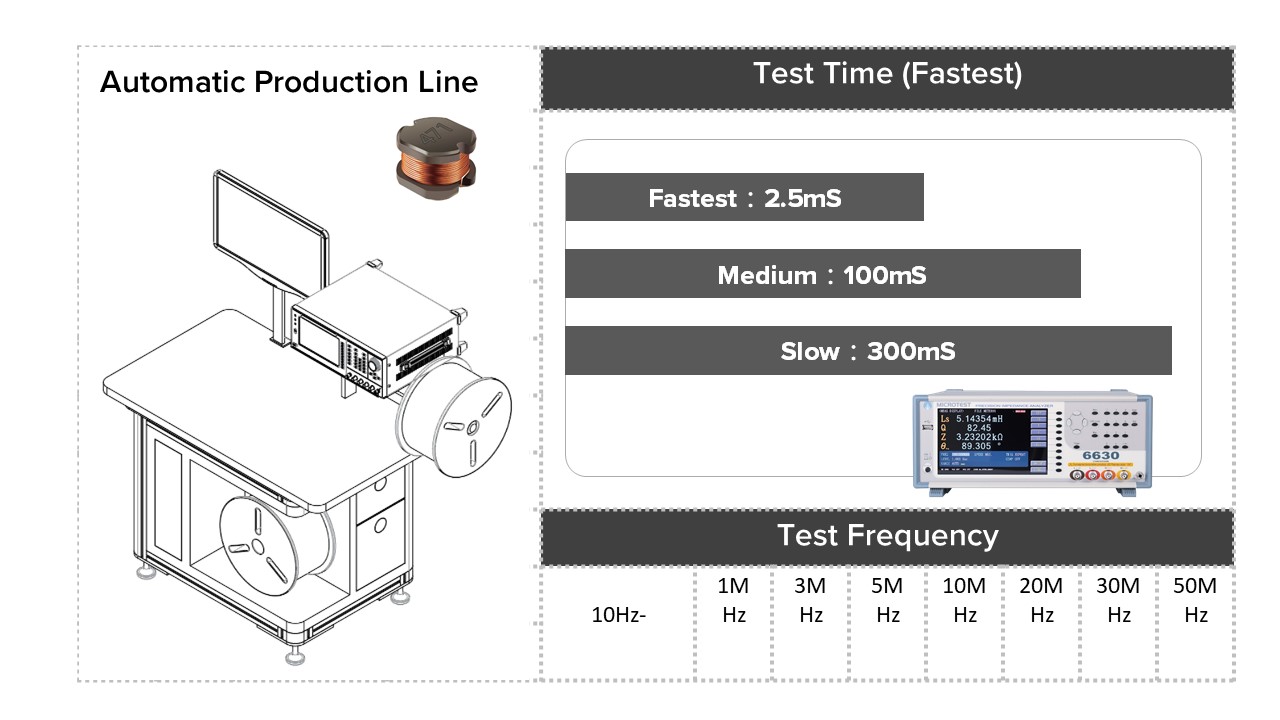

| Test Time (Fastest) | < 3mS | |

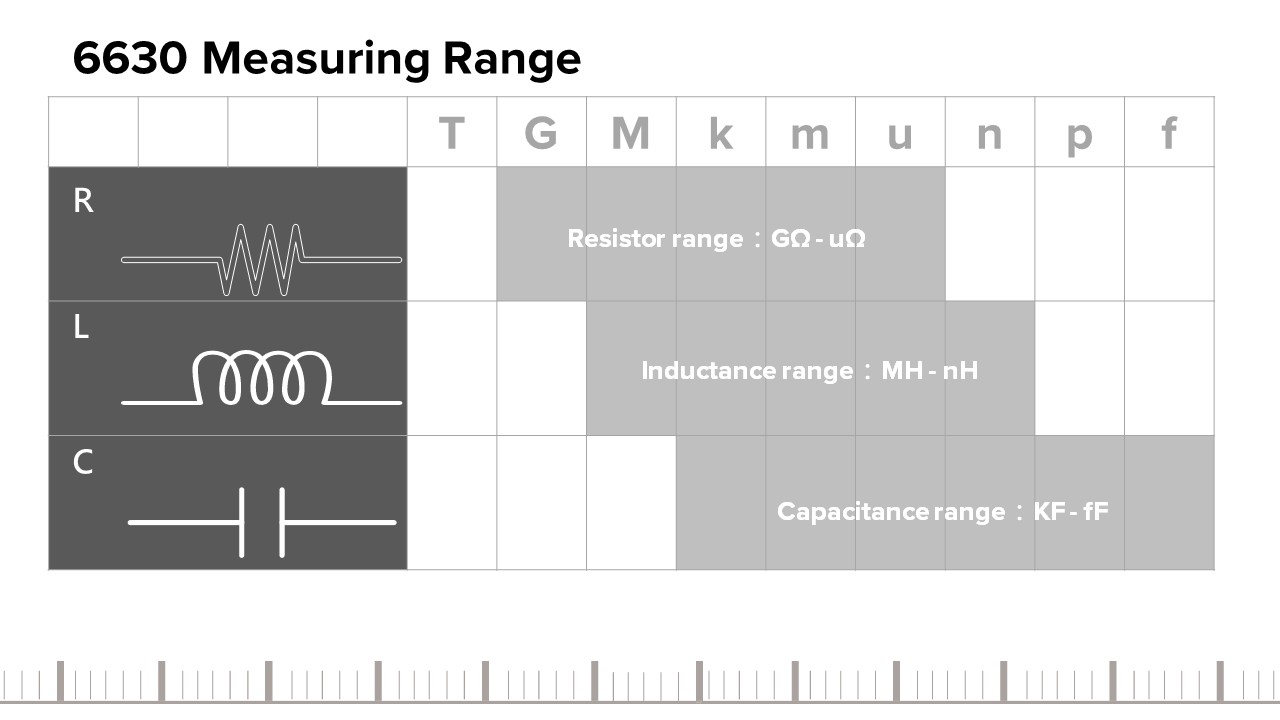

Measurement Parameters

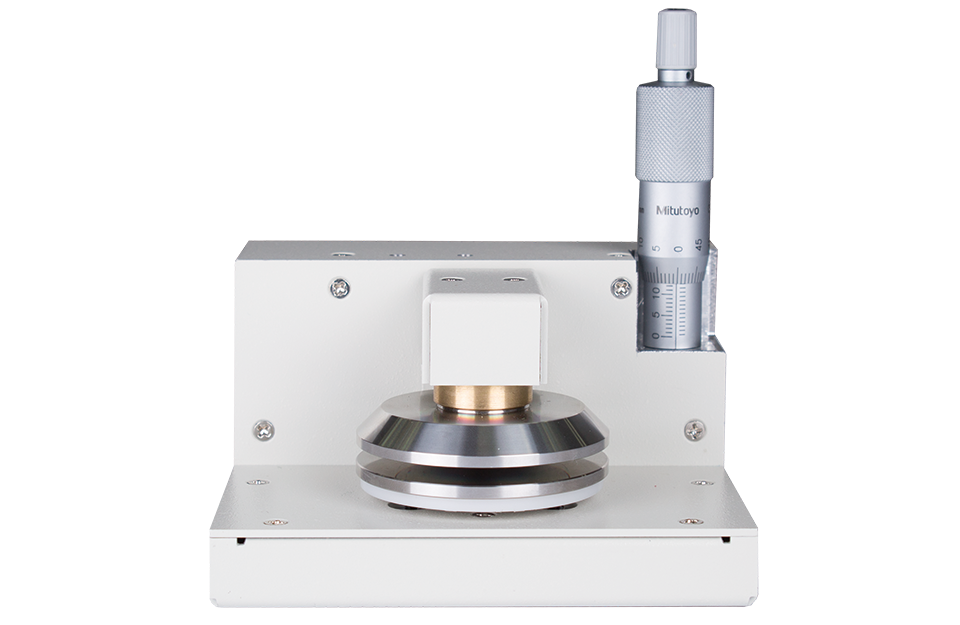

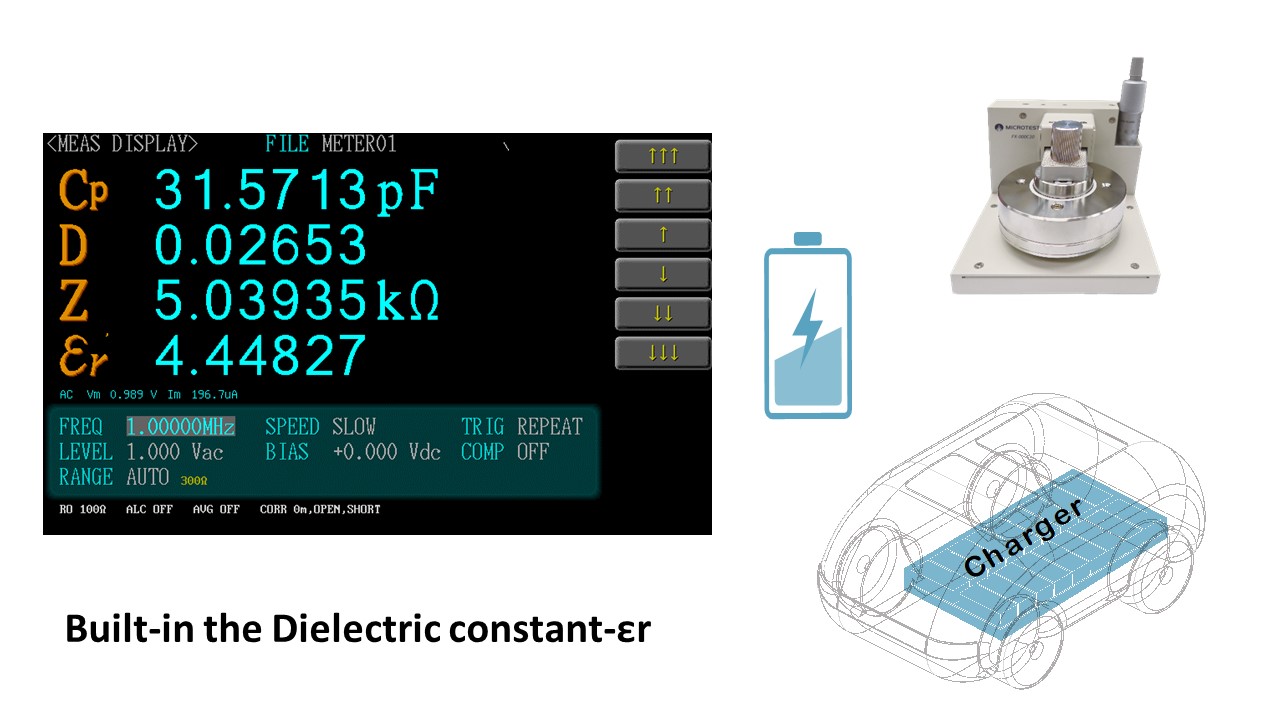

| Parameters | Range |
| |Z| | 0.000 mΩ to 9999.99 MΩ |
| R, X | ± 0.000 mΩ to 9999.99 MΩ |
| |Y| | 0.00000 μS to 999.999 kS |
| G, B | ± 0.00000 μS to 999.999 kS |
| θRAD | ± 0.00000 to 3.14159 |
| θDEG | ± 0.000° to 180.000° |
| Cs, Cp | ± 0.00000 pF to 9999.99 F |
| Ls, Lp | ± 0.00 nH to 9999.99 kH |
| D | 0.00000 to 9999.99 |
| Q | 0.00 to 9999.99 |
| Δ | ± 0.00% to 9999.99% |
| Rdc | 0.00 mΩ to 99.9999 MΩ |
| εr' εr'' | 0 to 100000 |
| μr' μr'' | 0 to 100000 |
System

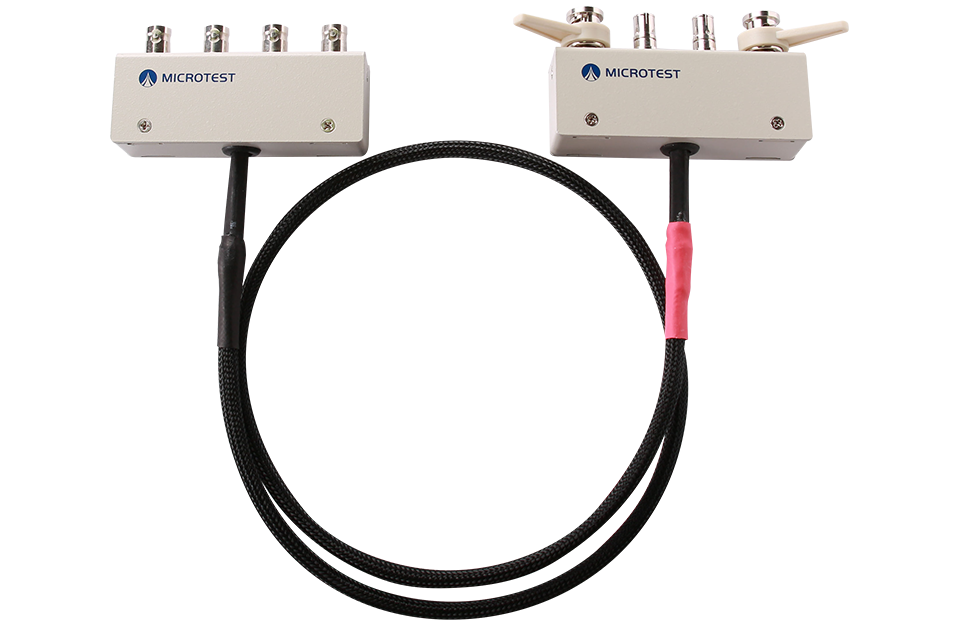

| Measurement Circuit | Series/Parallel |
| Correction | Open Circuit/Short Circuit/Load correction |
| Cable Compensation | 0 / 0.5 / 1 /2 (m) |
| BIN | ABS、ΔABS、Δ%、OFF |
| Comparator | 9 |
| List Mode | 50 groups of Multi-steps setting (Each group contains up to 15 steps) |
| Bulit-in Storge | 100 sets LCR setting documents, 50 groups of list mode setting |
| USB Host Storge | LCR setting documents, list mode setting document, BMP graphics, Sweep screen and test result data |
| Trigger Test | Auto, manual, RS-232, Handler |
| Power Supply | Voltage：90-264Vac |
| Frequency：47-63Hz | |
| Power consumption | 30VA |
| Environment | Temperature：10℃-40℃ |
| Humidity：20-90%RH | |
| Dimension | 336x147x340 mm (W*H*D) |
| Weight | 3 Kg |

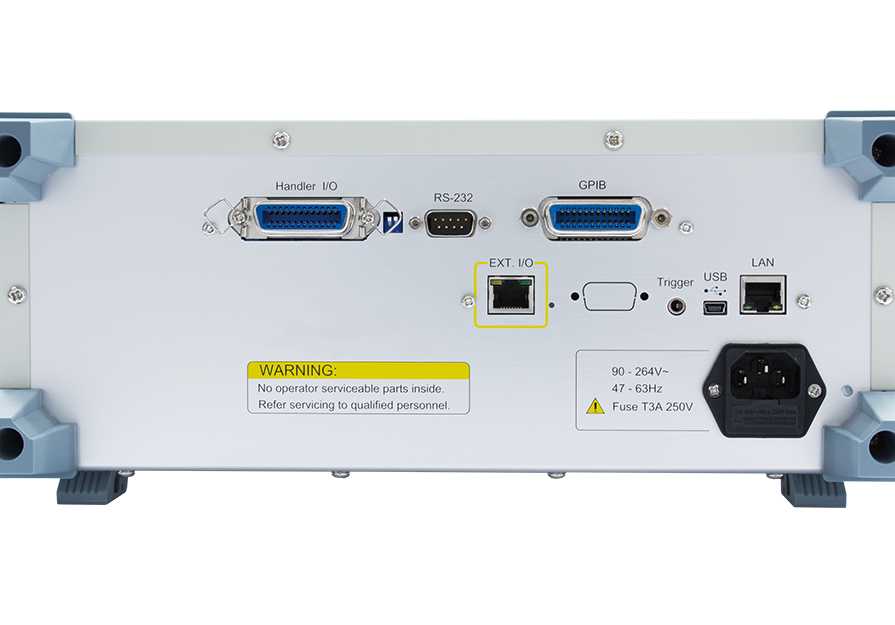

| Interface | RS-232、Handler、LAN、USB Host、USB Device |
| Display | Color Screen, 7" TFT (800*480) |
Starting July 1, 2025, the 6630 and 6360 series will no longer include GPIB as a standard interface.
Please consider using LAN, USB, or RS-232 for control. We appreciate your understanding.
