2-Wire Cable Harness Tester

8740/8740K series employs two-wire measurement technology, providing a comprehensive set of testing functions including continuity impedance, open/short circuit, safety withstand voltage insulation, and component (resistor/capacitor/diode) testing for assessing the electrical quality of wire harnesses and connectors.

MICROTEST 8740 series offers testing points of 128/256/512 points, with AC withstand voltage up to 1000V and DC withstand voltage up to 1500V.

MICROTEST 8740K series provides testing points of 1024 points, with AC withstand voltage up to 700V and DC withstand voltage up to 1000V.
2-Wire Cable Harness Tester

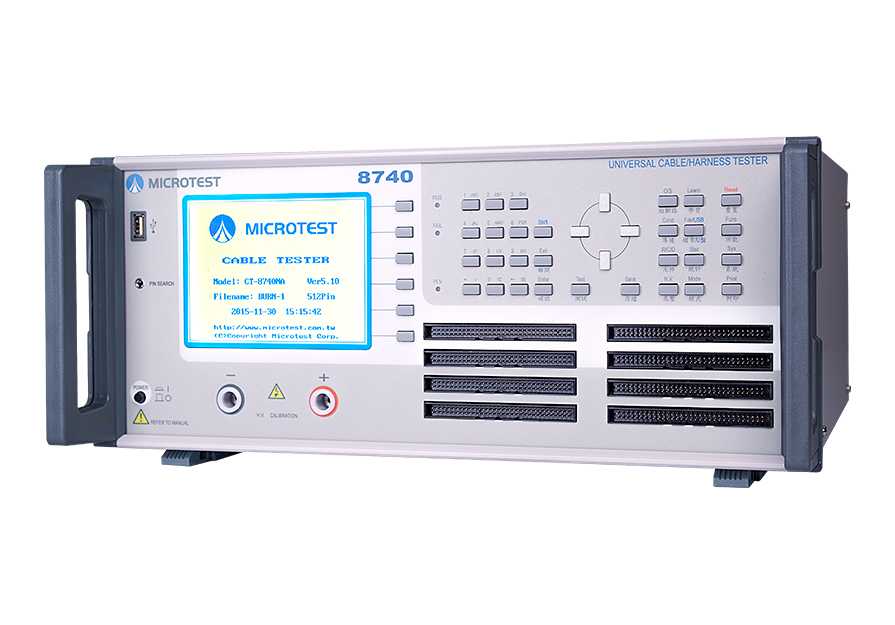

Cable Tester 8740 Series|8740FA/8740NA/8740N
Cable Tester 8740 Series
8740FA/8740NA/8740N
  • Test pin 128/256/512
  • Number of test file up to 500 sets
  • Open/Short
  • Cond. Resistance test
  • AC/DC Hipot Test
  • DC insulation
  • Quick conductance
  • Multiple DUT test
  • Support bar code scan and print function
  • Automatically identify the normal or reverse plugin of wire or connectors
Inquiry Compare
Cable Tester 8740K Series|8740NAK/8740NK
Cable Tester 8740K Series
8740NAK/8740NK
  • Test pin 1024
  • Number of test file up to 500 sets
  • Open/Short
  • Cond. Resistance test
  • AC/DC Hipot Test
  • DC insulation
  • Quick conductance
  • Multiple DUT test
  • Support bar code scan and print function
  • Automatically identify the normal or reverse plugin of wire or connectors
Inquiry Compare
