4-Wire Cable Harness Tester

8761 4-wire cable or connector tester has 64、128 and 256 test pin.The measurement circuit is using 4-Wire design, avoiding the resistance issues caused from adapting the fixture wires, making the on-state measurement more accurate. To achieve the resolution of the on-state resistance of 1mΩ, the multiple filter line at the power supply is used, which reduces thermal consumption and external power interference, giving the tester more measuring stability.

The measurement items of 8761 cable or harness tester have (1) Open/Short;(2) Conductance; (3) Components; (4) AC Hipot; (5) DC insulation/ Hipot; (6) Quick conductance (7) Intermittence O/S, and (8) Quick Intermittence open circuit. It supports RS-232, USB Host, Print, Remote interfaces.
Cable Harness Tester 4-Wire Cable Harness Tester 2-Wire Cable Harness Tester USB Type-C Cable Tester

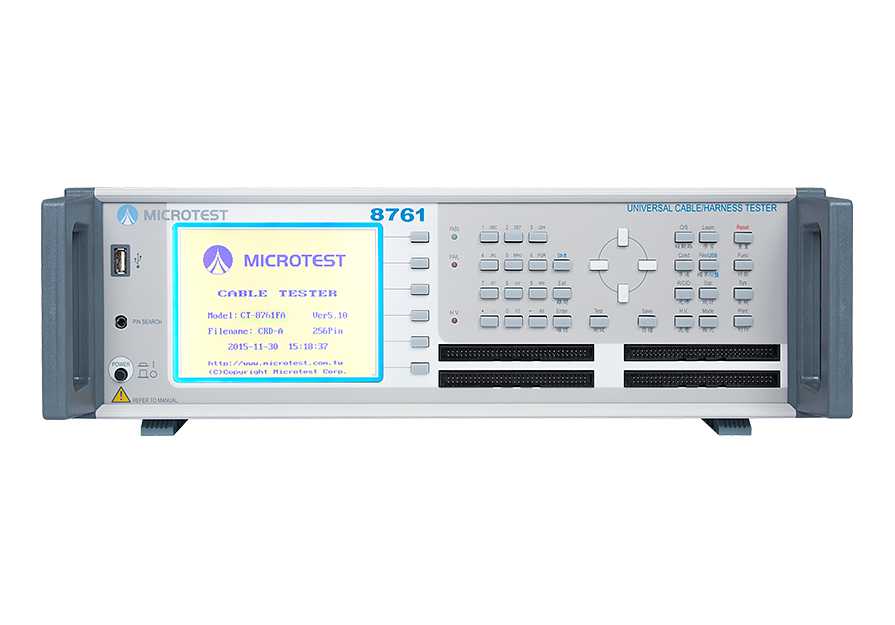

8761 Cable Tester-4 Wire
  • 4-wire measurement conductance 1mΩ-52Ω
  • Test pin 64/128/256
  • Number of test file up to 500 sets
  • Open/Short
  • Conductance
  • AC/DC Hipot Test
  • DC insulation
  • Quick conductance
  • Multiple DUT test
  • Support bar code scan and print function
  • Automatically identify the normal or reverse plugin of wire or connectors
