Impedance Analyzer

The Precision Impedance Analyzer 6632 has seven frequency options(10Hz to 1/3/5/10/20/30/50MHz). The equivalent circuit analysis function supports 7 different parameter models (three-element, four-element), it can help customers model the impedance versus frequency characteristics. 6632 Built-in DC Bias voltage ±12V, it can measurement of piezoelectric element admittance circle, and can measure DC bias characteristic of capacitance value. 6632 can use with DC bias current test system. Support RS-232、GPIB、Handler、LAN、USB Host/Device interfaces, PC connection software capabilities to improve the design and test efficiency significantly.

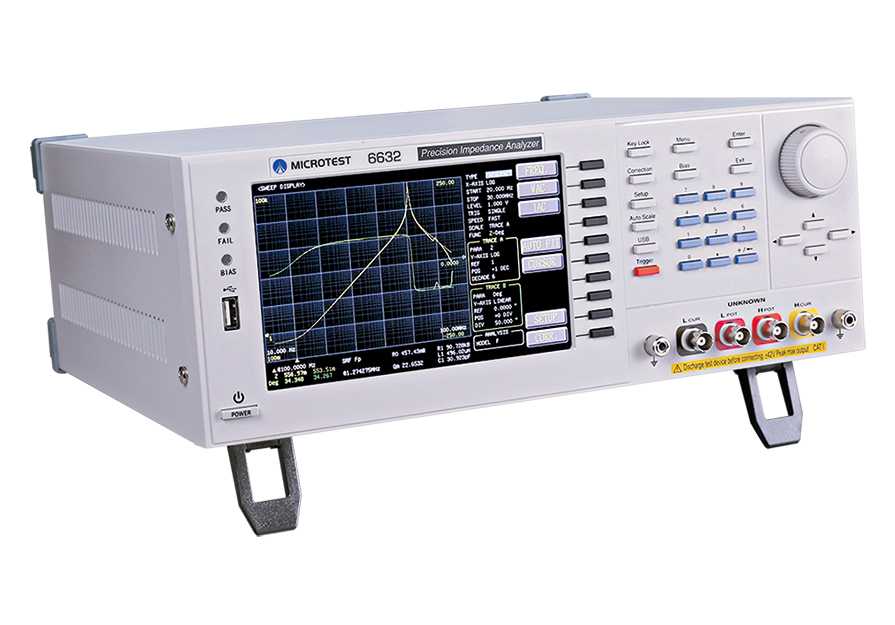

6632 Impedance Analyzer
  • Frequency range: DC, 10Hz to 1/3/5/10/20/30MHz/50MHz
  • Basic accuracy up to ±0.08% (typical ±0.05% )
  • Automatic Level Control (ALC)
  • Output impedance 25Ω/100Ω, switchable
  • Support meter mode and list mode, sweep mode
  • Equivalent Circuit Analysis
  • Built-in DC Bias voltage ±12V
  • Ultra-high measuring speed < 3ms
  • Open circuit/short circuit/load correction function
  • Comparator function
  • BIN classification function
  • Built-in the Permeability-μr
  • Built-in the Dielectric constant-εr
