Cable Harness Tester

MICROTEST Cable Harness Tester is an all-in-one unit that combines continuity impedance, open/short circuit, resistance value, safety compliance withstand voltage insulation, and component testing functions. It supports test channels with options for 64/128/256/512/1024 points, with a maximum AC withstand voltage of 1000V and DC withstand voltage of up to 1500V. This versatile tool is used for testing electrical characteristics of wires, connectors, PCB/FPC, and more, and it comes with PC connectivity software.

8761/8761K series employs four-wire testing technology to measure the continuity between connector points, avoiding measurement errors caused by excessive fixture wiring.

8740/8740K series uses two-wire testing technology to measure the continuity between connector points.

8761NAC is a specialized testing solution for USB Type-C products. It supports connector loop orientation recognition, facilitating short-circuit testing for USB Type-C connectors. It can test protective components such as RA resistors and filter capacitors to ensure the stability of E-Marker ICs. It comes with a 2-in-1 current source expansion box FX-000C28 for performing 5A voltage drop tests and reading E-Marker IC VDO Codes.
Cable Harness Tester

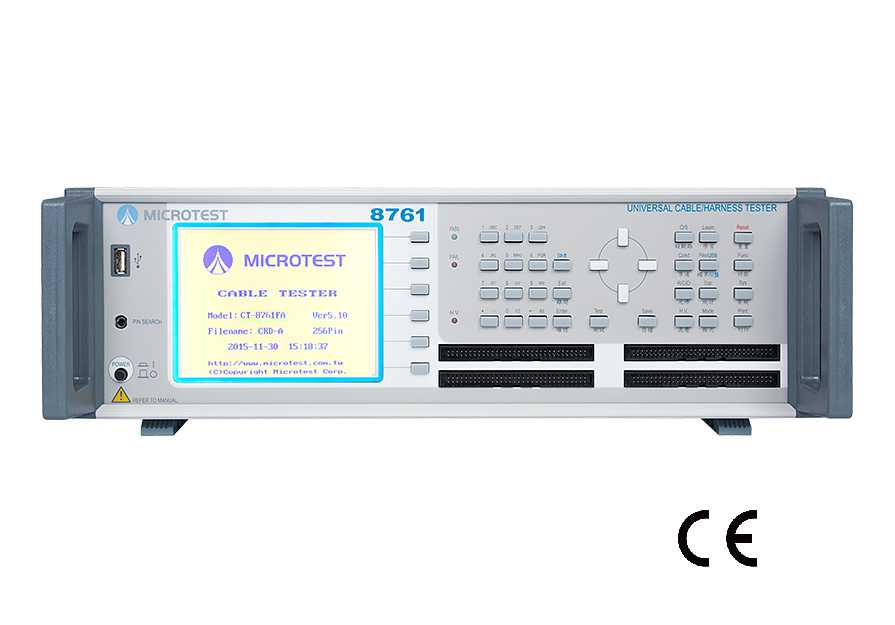

Cable Tester 8761 Series|8761FA/8761NA/8761N
Cable Tester 8761 Series
8761FA/8761NA/8761N
  • 4-wire measurement conductance 1mΩ-52Ω
  • Test pin 64/128/256
  • Number of test file up to 500 sets
  • Open/Short
  • Cond. Resistance Test
  • AC/DC Hipot Test
  • DC insulation
  • Quick conductance
  • Multiple DUT test
  • Support bar code scan and print function
  • Automatically identify the normal or reverse plugin of wire or connectors
Inquiry Compare
Cable Tester 8761K Series|8761NAK/8761NK
Cable Tester 8761K Series
8761NAK/8761NK
  • 4-wire measurement Cond. Resistance 1mΩ-52Ω
  • Low Resistance Scanning Test 10mΩ-52Ω
  • Test pin 512
  • Number of test file up to 500 sets
  • Open/Short
  • Cond. Resistance Test
  • AC/DC Hipot Test
  • DC insulation
  • Support bar code scan and print function
Inquiry Compare

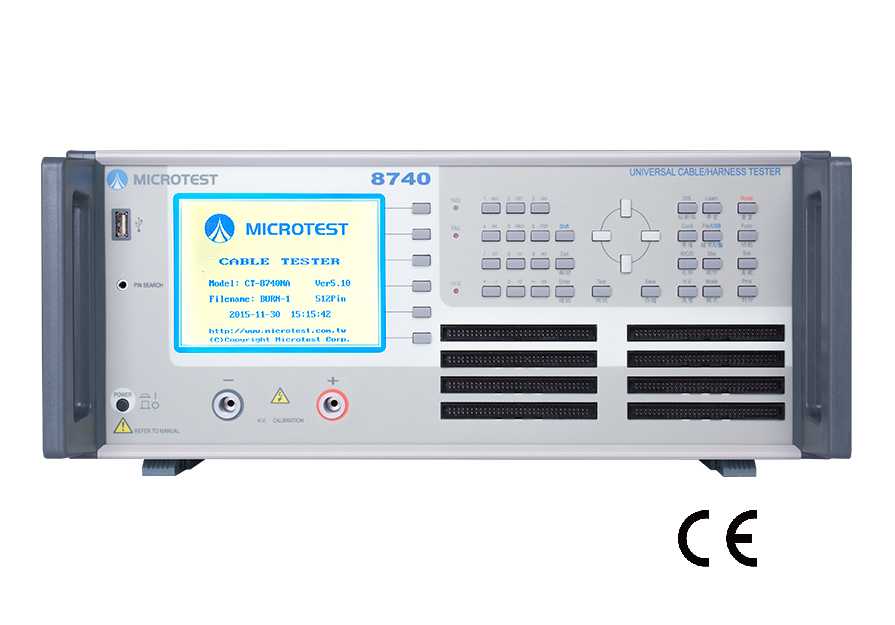

Cable Tester 8740 Series|8740FA/8740NA/8740N
Cable Tester 8740 Series
8740FA/8740NA/8740N
  • Test pin 128/256/512
  • Number of test file up to 500 sets
  • Open/Short
  • Cond. Resistance test
  • AC/DC Hipot Test
  • DC insulation
  • Quick conductance
  • Multiple DUT test
  • Support bar code scan and print function
  • Automatically identify the normal or reverse plugin of wire or connectors
Inquiry Compare

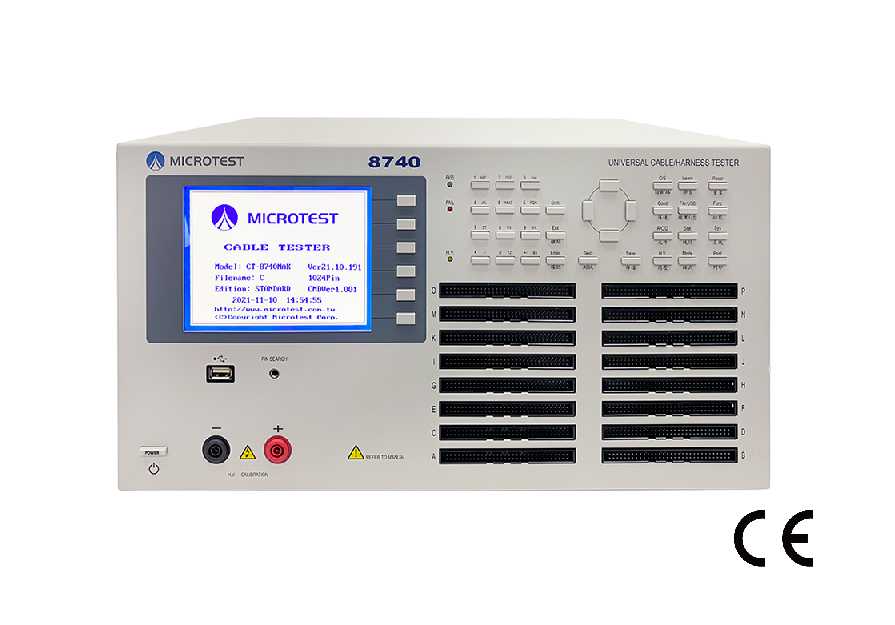

Cable Tester 8740K Series|8740NAK/8740NK
Cable Tester 8740K Series
8740NAK/8740NK
  • Test pin 1024
  • Number of test file up to 500 sets
  • Open/Short
  • Cond. Resistance test
  • AC/DC Hipot Test
  • DC insulation
  • Quick conductance
  • Multiple DUT test
  • Support bar code scan and print function
  • Automatically identify the normal or reverse plugin of wire or connectors
Inquiry Compare

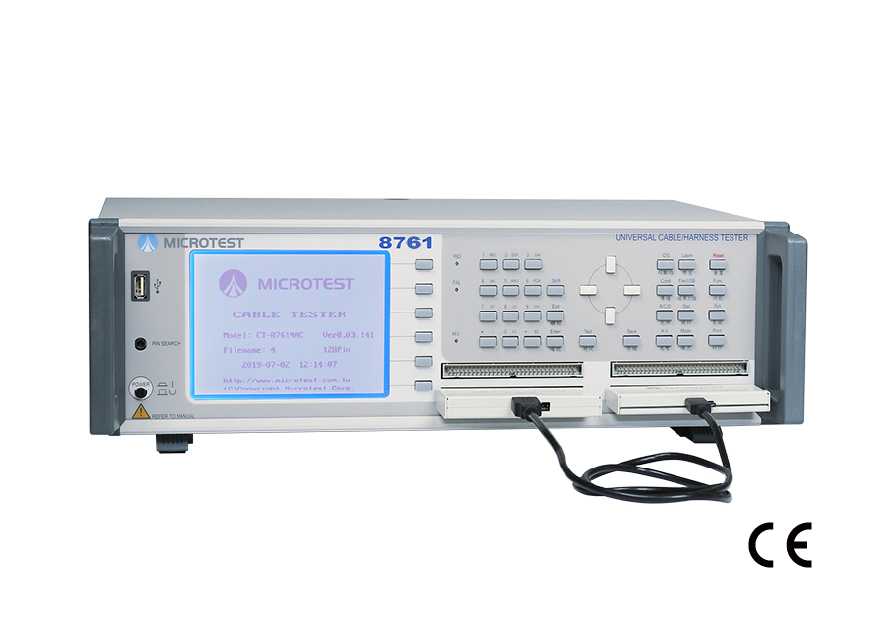

USB Type-C Tester|8761NAC
USB Type-C Tester
8761NAC
  • 4-wire measurement conductance 1mΩ-52Ω
  • Test pin 64/128
  • E-Marker IC Test
  • Voltage Drop Test (5A)
  • Open/Short
  • Cond. Resistance test
  • AC/DC Hipot Test
  • DC insulation
  • Support bar code scan and print function
  • Automatically identify the normal or reverse plugin of wire or connectors
Inquiry Compare
