MICROTEST 7130 is designed for single-phase AC/DC power measurement, featuring a 0.2Hz–100kHz bandwidth, 500kSPS sampling rate, and ±0.05% accuracy in a compact design with a 4.3” TFT LCD. It supports 800V/30A direct input, 50th-order harmonic analysis, and simultaneous harmonic and integration measurements. The built-in graphical display and basic oscilloscope function allow real-time voltage and current waveform observation. USB Host enables direct waveform capture and data logging—no external oscilloscope needed. For standby power testing, it offers a 5mA range, 10μW resolution, and Meter mode displays 4, 8, or 16 parameters with real-time min/max tracking. Comparison mode provides PASS/FAIL evaluation, optimizing R&D, production, and quality control.
Selection
| Model | 7140 Powar Analyzer | 7130 Power Meter |
| Frequency Range | D C , 0 . 2H z~10 0 k H z | D C , 0 . 2H z~10 0 k H z |
| Basic Measurement Accuracy | ±0 . 0 5 % | ±0 . 0 5 % |
| Sampling Rate | 5 0 0 k SP S | 5 0 0 k SP S |
| Meter Mode | ● | ● |
| Harmonic Analysis | 100th-order harmonic | 50th-order harmonic |
| Voltage and Current Waveform Display | ● | ● |
| Power Trend Graph | ● | — |
| Harmonic Bar Char t | ● | — |
Extensive Parameter Measurement
| Voltage (VRMS/ VDC/ V+PK/ V-PK) | Apparent Power（S） |
| Current (IRMS/ IDC/ I+PK/ I-PK) | Reactive Power ( Q ) |
| Frequency (VHZ/ IHZ) | Phase Angle (DEG) |
| Power（P） | Total Harmonic Distortion (THDV/ THDI/ THDW) |
| Crest Factor (CFV/ CFI) | Maximum Current Ratio (MCR) |
| Power Factor（PF） | Displacement Power Factor (DPF) |
Input
| Input | |||
| Measurement range |
Voltage |
Crest factor 3: 15V/ 30V/ 60V/ 150V/ 300V/ 600V | |
| Crest factor 6: 7.5V/ 15V/ 30V/ 75V/ 150V/ 300V | |||
| Current: Direct input | Crest factor 3: 5mA/10mA/20mA/50mA/100mA/200mA/0.5A/1A/2A/5A/10A/20A(Max30A) Crest factor 6: 2.5mA/5mA/10mA/25mA/50mA/100mA/0.25A/0.5A/1A/2.5A/5A/10A |
||
| Current External current sensor input |
Crest factor 3: 500mV/ 1V/ 2V/ 5V/ 10V | ||
| Input impedance | Voltage | Input resistance: Approx. 1.66MΩ Input capacitance:Approx. 13pF (Parallel with the resistance) |
|
| Current Direct input |
Crest factor 3: 5mA/10mA/20mA/50mA/100mA/200mA Crest factor 6: 2.5mA/5mA/10mA/25mA/50mA/100mA |
Input resistance:Approx. 500mΩ+10mΩ(wire) Input inductance:Approx. 0.1μH |
|
| Crest factor 3: 0.5A/1A/2A/5A/10A/20A Crest factor 6: 0.25A/0.5A/1A/2.5A/5A/10A |
Input resistance: Approx. 5mΩ + 3mΩ(wire) Input inductance: Approx. 0.1μH |
||
| Current External current sensor input |
Crest factor 3: 0.5V/1V/2V/5V/10V | Input resistance: Approx. 10kΩ | |
| Continuous maximum allowable input |
BNC | Max AC 10V | |
| Voltage | Peak value 1131V | ||
| Current | Crest factor 3: 5mA/10mA/20mA/50mA/100mA/200mA Crest factor 6: 2.5mA/5mA/10mA/25mA/50mA/100mA |
Maximum current: 0.9A | |
| Crest factor 3: 0.5A/1A/2A/5A/10A/20A Crest factor 6: 0.25A/0.5A/1A/2.5A/5A/10A |
Maximum current: 30A | ||
| Line filter | Select OFF or ON(cutoff frequency at 500Hz/5kHz/100kHz), THD ON(cutoff frequency at 500Hz/ 5kHz) | ||
| Frequency filter | Select OFF or ON(cutoff frequency at 500Hz) | ||
| A/D converter | Simultaneous conversion of voltage and current inputs Resolution: 16bits, Maximum conversion rate: 500kSPS |
||
Voltage/ Current/ Active Power Accuracy
| Voltage/ Current/ Active Power Accuracy | |||
|
Voltage and Current |
Accuracy | DC | DC Accuracy ±0.05% reading ± 0.05% of range |
| 0.2Hz f < 45Hz | ±(0.1% of reading + 0.1% of range) | ||
| 45Hz f 66Hz | ±(0.05% of reading + 0.05% of range) | ||
| 66Hz < f 1kHz | (0.1% of reading + 0.1 % of range) | ||
| 1kHz < f 10kHz | ±([{0.07×(f)}% of reading] + 0.3% of range ) | ||
| 10kHz < f 100kHz | ±(0.4 % of reading + 0.4 % of range)±[{0.04×(f–10)}% of reading] | ||
| Frequency range |
Data update interval | Measurement Frequency Range | |
| 0.05s | 40Hz ~ 100kHz | ||
| 0.1s | 20Hz ~ 100kHz | ||
| 0.2s | 10Hz ~ 100kHz | ||
| 0.25s | 8Hz ~ 100kHz | ||
| 0.5s | 5Hz ~ 100kHz | ||
| 1s | 2Hz ~ 100kHz | ||
| 2s | 1.5Hz ~ 100kHz | ||
| 5s | 0.5Hz ~ 100kHz | ||
| 10s~60mins | 0.2Hz ~ 100kHz | ||
|
Active Power Accuracy |
Requirements | Same as the conditions for voltage and current. Power factor: 1 | |
| Accuracy | DC | ±(0.05% reading ± 0.05% of range) | |
| 0.1Hz f< 45Hz | ±(0.2% of reading + 0.2% of range) | ||
| 45Hz f 66Hz | ±(0.05% of reading + 0.05% of range) | ||
| 66Hz <f 1kHz | ±(0.1% of reading + 0.1 % of range) | ||
| 1kHz <f 10kHz | ±(0.1% of reading + 0.2% of range)± [{0.06×(f)}% of reading] | ||
| 10kHz < f 100kHz | ±(0.4 % of reading + 0.4 % of range)±[{0.07×(f–10)}% of reading] | ||
Integration
| Integration | |
| Mode | Manual integration mode |
| Timer | Automatically stop integration by setting a timer Selectable range: 0h00m00s ~ 9999h59m59s(0h00m00s, automatically sets to manual integration mode) |
| Count overflow | WP: 999999MWh/-99999MWh, q: 999999MAh/-99999MAh |
| Accuracy | ±(Power accuracy (or current accuracy) + 0.05% of reading) (fixed range) *In auto-range mode, measurement is not performed during range switching. The first measurement after switching and the non-measurement period are included in calculations |
| Range setting | Auto range or fixed range for Integration is available. *Refer to the "Voltage, Current, and Power Measurement" section for range switching. |
| Valid Frequency Ranges for Integration | Active power: DC to 100 kHz Current: DC to 100 kHz |
| Timer accuracy | ±0.02% |
Harmonic
| Harmonic | ||
| Measured item | 1~50 {Voltage, Current, Power, Voltage Ratio, Current Ratio, Power Ratio, Voltage Phase Angle, Current Phase Angle}, and all measurement items when THD is not enabled |
|
| Method | PLL synchronization method with Discrete Fourier Transform for harmonic analysis | |
| Frequency range | Fundamental frequency of the PLL source is in the range of 20Hz ~ 480Hz | |
| PLL source | Select voltage or current of each input element | |
| DFT data length | 4096 | |
| Accuracy | 20Hz f < 45Hz | ±(0.2% of reading + 0.2% of range) |
| 45Hz f 66Hz | ±(0.05% of reading + 0.05% of range) | |
| 66Hz < f 1kHz | ±(0.1% of reading + 0.1 % of range) | |
| 1kHz < f 10kHz | ±(0.1% of reading + 0.2% of range)± [{0.06×(f)}% of reading] | |
| 10kHz < f 48kHz | ±(0.4 % of reading + 0.4 % of range)±[{0.07×(f–10)}% of reading] | |
External Current Sensor Input
Measurement range：Crest factor 3: 0.5V/ 1V/ 2V/ 5V/ 10V
MICROTEST 7130 provides a maximum input of 800V and 30A. For current measurement needs exceeding 30A, voltage input-type current
clamps or current sensors can be purchased for testing.
| High Current Measurement Solution | |
| Clamp- on Tr ans f ormer | Cur r ent Sensor |
|
|
|
| AC 100A/ 1V | AC 500A/ 4V |
| Bandwidth 5kHz | Bandwidth 50kHz |
System
| Supply voltage | 100VAC~240VAC, 50~60 Hz |
| Power consumption | 30VA MAX |
| Display | 4.3"TFT, 800*480 |

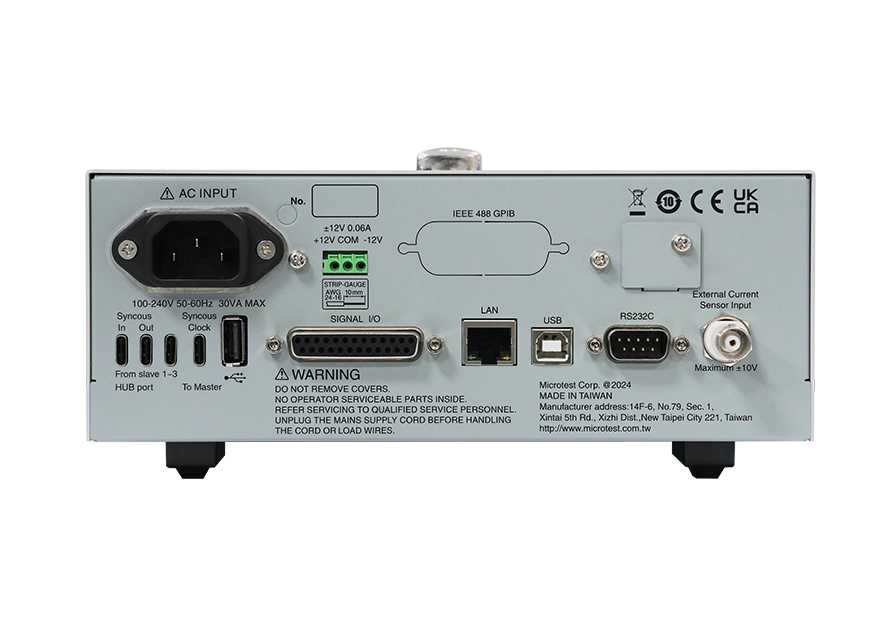

| Remote Control Input/Output Signal | USB、RS-232、ETHERNET 10/100M |
| Memory | USB disk、Embed flash |
| Operating environment | Temperature: 13°C to 40°C Humidity: < 80%RH |
| Weight | 2.9kg |
| Dimensions | 214x115x300mm |
Up to 50-Order Harmonic Analysis with Odd and Even Harmonics Display
MICROTEST 7130 Power Meter complies with IEC 61000-4-7 harmonic measurement standards and supports up to 50th-order harmonic analysis. Measurement results are displayed numerically, providing precise analysis of key harmonic parameters, including voltage, current, power, voltage distortion percentage, power distortion percentage, voltage phase angle, and current phase angle.
In harmonic analysis mode, engineers can choose to display odd-order harmonics or even-order harmonics.
Focusing on odd-order harmonics helps quickly identify issues such as nonlinear loads or voltage distortion, allowing for precise pinpointing of factors affecting power quality.
Filtering evenorder harmonics is effective for diagnosing potential risks such as load imbalance or equipment aging, simplifying data analysis and enabling engineers to quickly get to the root of the issue.
｜Displaying Odd-Order Harmonic Analysis
Harmonics with Even Multiples of the Rated Frequency (Even-Order Harmonics)
Identifying Potential Asymmetry or Specific Equipment Issues
｜Even Harmonic Analysis Display
Harmonics at Odd Multiples of the Rated Frequency (Fundamental Frequency)
Evaluating the Impact of Non-Linear Loads on the System
The instrument uses independent measurement modules, allowing engineers to simultaneously perform harmonic analysis and integration, enabling real-time monitoring and analysis.
Power Integration Mode
In Power Integration Mode, the MICROTEST 7130 accurately measures current integration (Ah) and energy (Wh) over a time range of up to 10,000 hours. It allows for long-term monitoring of equipment's energy consumption and current demand, making it ideal for durability testing of motors/rotating machinery. The instrument also supports data storage via the standard USB Host communication.
With its independent measurement modules, the instrument can simultaneously perform harmonic analysis and integration in any screen background, enabling real-time evaluation of harmonic effects in the system.

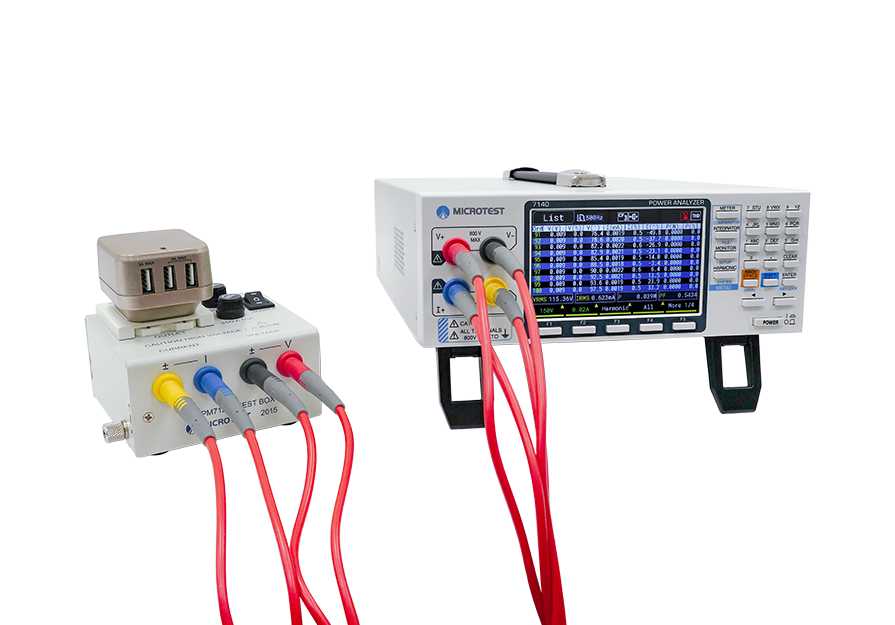

Front-Facing Voltage/Current Input Terminals for Easy Connection
The voltage/current measurement input terminals adopt a front-facing design, enabling quick and convenient connection with the F71201 fixture box. The F71201 connection cables can be directly connected to the 7130 Power Meter, allowing DUTs (such as AC plugs) to be plugged into the fixture box for plug-and-play functionality, eliminating the hassle of manual wiring.
Support Switching Between High and Low Current Measurement Modes –Eliminating Manual Wiring
Most power measurement instruments cannot automatically adjust wiring to compensate for the internal resistance of current and voltage meters, which affects power consumption measurements. Engineers typically need to use the correct wiring method (U-I / I-U wiring) to ensure precise standby power measurement.
The MICROTEST 7130 supports manual switching between high and low current measurement modes (when used with the F71201 test fixture and for currents below 15A), eliminating the need for manual rewiring and improving measurement efficiency.
｜High-Current Mode
When measuring high-current products, the F71201 test fixture allows switching to high-current mode. The voltage measurement point is directly connected to the DUT (Device Under Test) to prevent voltage drop in the wiring loop, ensuring accurate power measurement without underestimation caused by high-current load conditions.
｜Low-Current Mode
When measuring low standby power products, switching to small current mode automatically compensates for the 7130 voltage input internal resistance of 1.66MΩ, ensuring that the measured power approaches 0W. This feature is particularly useful for standby power evaluation, providing high accuracy in ultra-low power measurements.
In Meter Mode, up to 4/8/16 sets of parameters can be displayed at once
MICROTEST 7130 features a 4.3”TFT LCD display with 5-digit measurement readout. In Meter mode, it can simultaneously show 4/8/16 sets of parameters.
It offers ultra-high precision for voltage, current, and power measurements, achieving an accuracy of ±0.05% of the reading ±0.05% of the range.
Automatic PASS/FAIL Judgment
MICROTEST 7130 supports Comparison Mode, allowing users to set upper and lower limit values. This feature is ideal for production line testing, where it can automatically perform PASS/FAIL judgment for multiple parameters, such as voltage, current, and power, based on the defined
limit values.
Simultaneous Monitoring of Maximum and Minimum Values for 4/8 Parameters
MICROTEST 7130 is capable of simultaneously monitoring 4 or 8 parameters, displaying their maximum and minimum values. This helps engineers efficiently track fluctuations and variations in power-related parameters. Additionally, it supports graphical display and features a simple oscilloscope function to observe voltage and current waveforms. With its USB Host storage interface, users can directly capture waveform screenshots and record values without the need for an external oscilloscope.
Effective Analysis of AC Power Parameters with DC Characteristics in Voltage/Current
Due to grid fluctuations, the waveform of AC power may not always be a perfect sine wave. When measuring AC parameters, the MICROTEST 7130 can simultaneously display the DC component within the AC voltage and current data. This provides a more comprehensive view of power quality, assisting engineers in optimizing and analyzing power supply designs.
Circuit and Frequency Filtering Function
With the MICROTEST 7130 supporting filtering functions, unwanted frequencies in the signal can be filtered out during measurement, leaving only the signals within the target frequency range. This results in cleaner waveforms and more precise measurements of important power-related parameters in power systems.
Current Sensor Input
MICROTEST 7130 provides a maximum input of 800V and 30A. For current measurement needs exceeding 30A, voltage input-type current clamps or current sensors can be purchased for testing.
| High Current Measurement Solution | |
| Clamp- on Tr ans f ormer | Cur r ent Sensor |
|
|
|
| AC 100A/ 1V | AC 500A/ 4V |
| Bandwidth 5kHz | Bandwidth 50kHz |
Ordering Information
| Base Unit | 7130 Power Meter (50th-order harmonic) | |
| Standard | ||
| Power Cord | ||
 |
TL-PM0001 | Test Cable-Red (100cm) |
 |
TL-PM0002 | Test Cable-Black (100cm) |
 |
TL-PM0003 | Test Cable-Blue (100cm) |
 |
TL-PM0004 | Test Cable-Yellow (100cm) |
| Optional | ||
 |
F71201 | Test Box |
 |
TL-000006 | Ethernet Cable (150cm) |
 |
TL-000007 | USB Cable (180cm I Type-A TO Type-B) |
 |
AX-PM0001 | Test Probe-Red |
 |
AX-PM0002 | Test Probe-Black |
 |
AX-PM0003 | Alligator Clips-Yellow |
 |
AX-PM0004 | Alligator Clips-Blue |
 |
TL-000014 | D-Sub Cable-25M TO 25M (180cm) |
 |
Grove Hall Sensor | (AC 500A/ 4V) |
 |
Current Transformer | (AC 100A/ 1V) |
