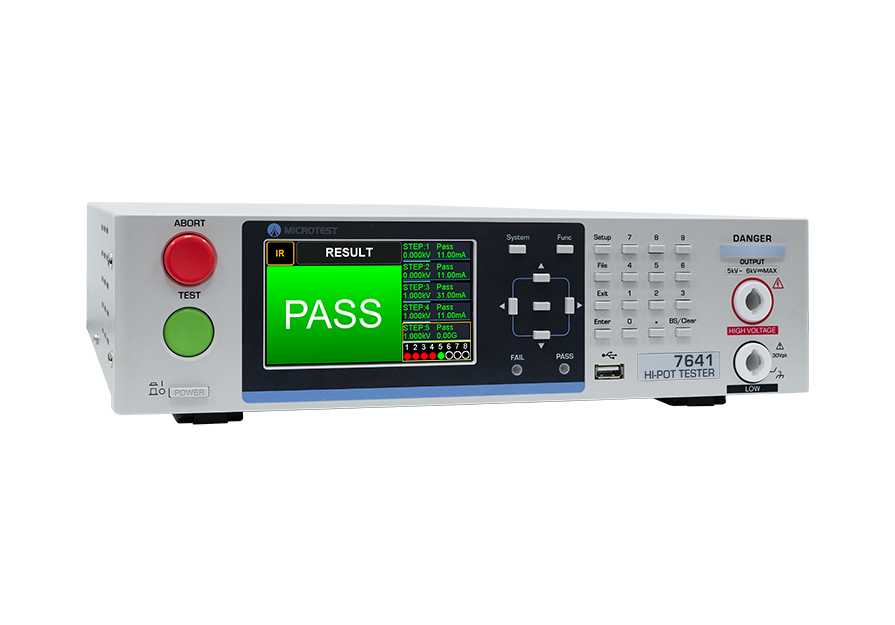

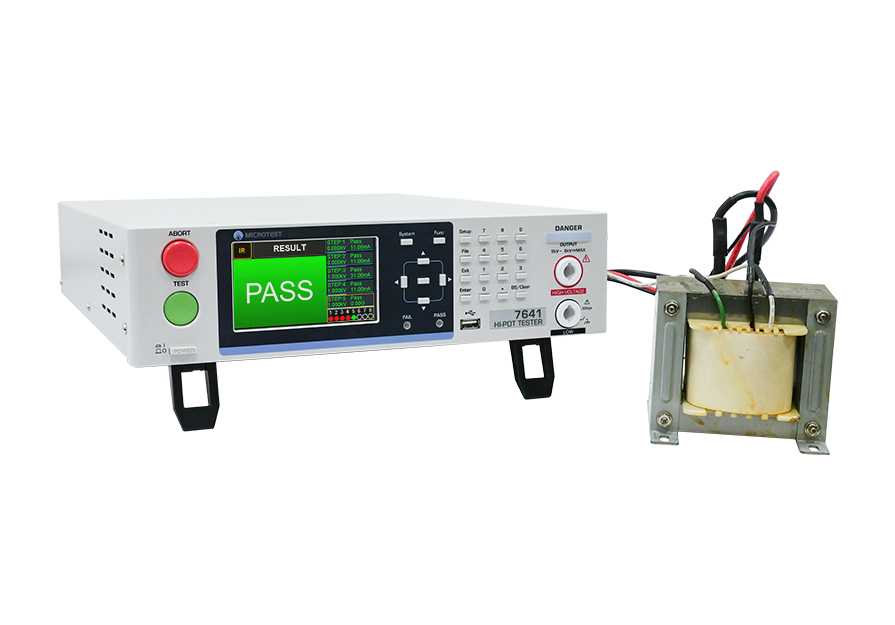

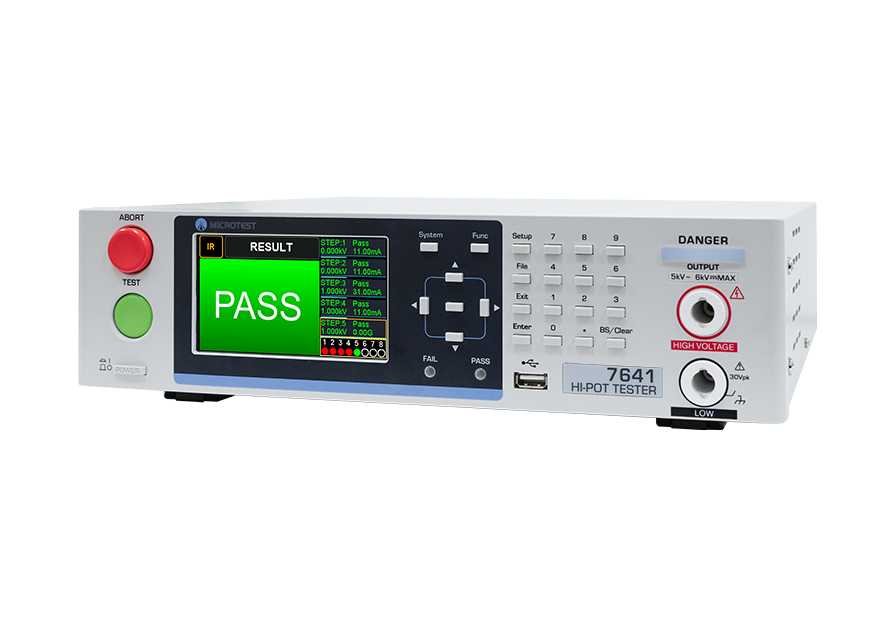

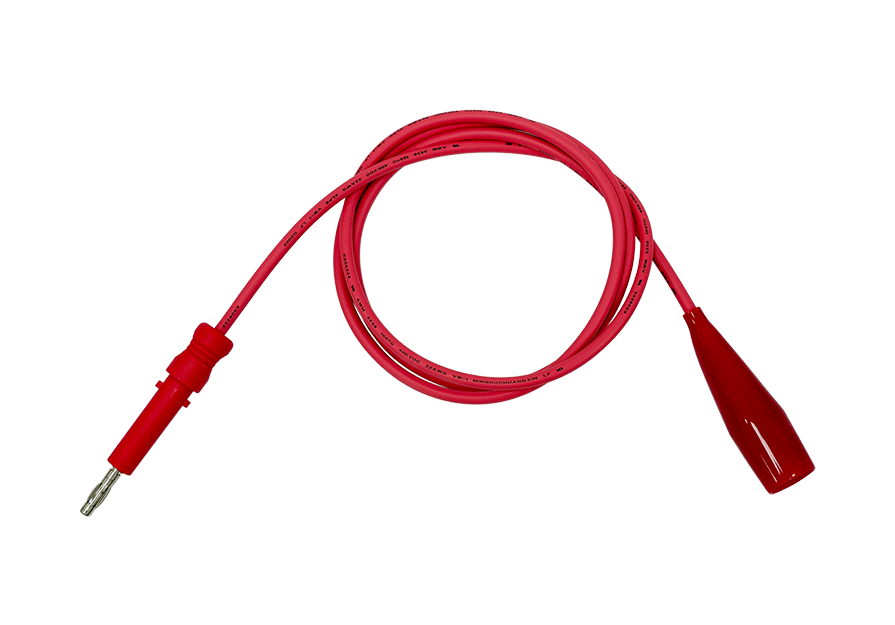

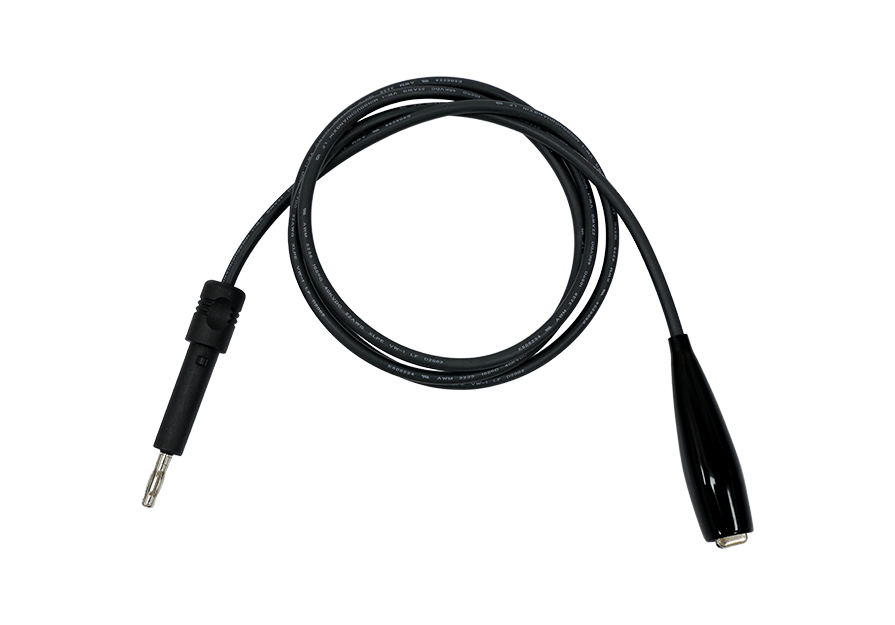

Hi pot Tester
7641 (8 Channel)

Hi pot Tester|7641 (8 Channel)
Features
Datasheet Inquiry
  •  AC Withstand Voltage up to 5000V
  •  DC Withstand Voltage up to 6000V
  •  Insulation Resistance up to 100GΩ
  •  Supports up to 72-Channel Test (7508A / 7516A)

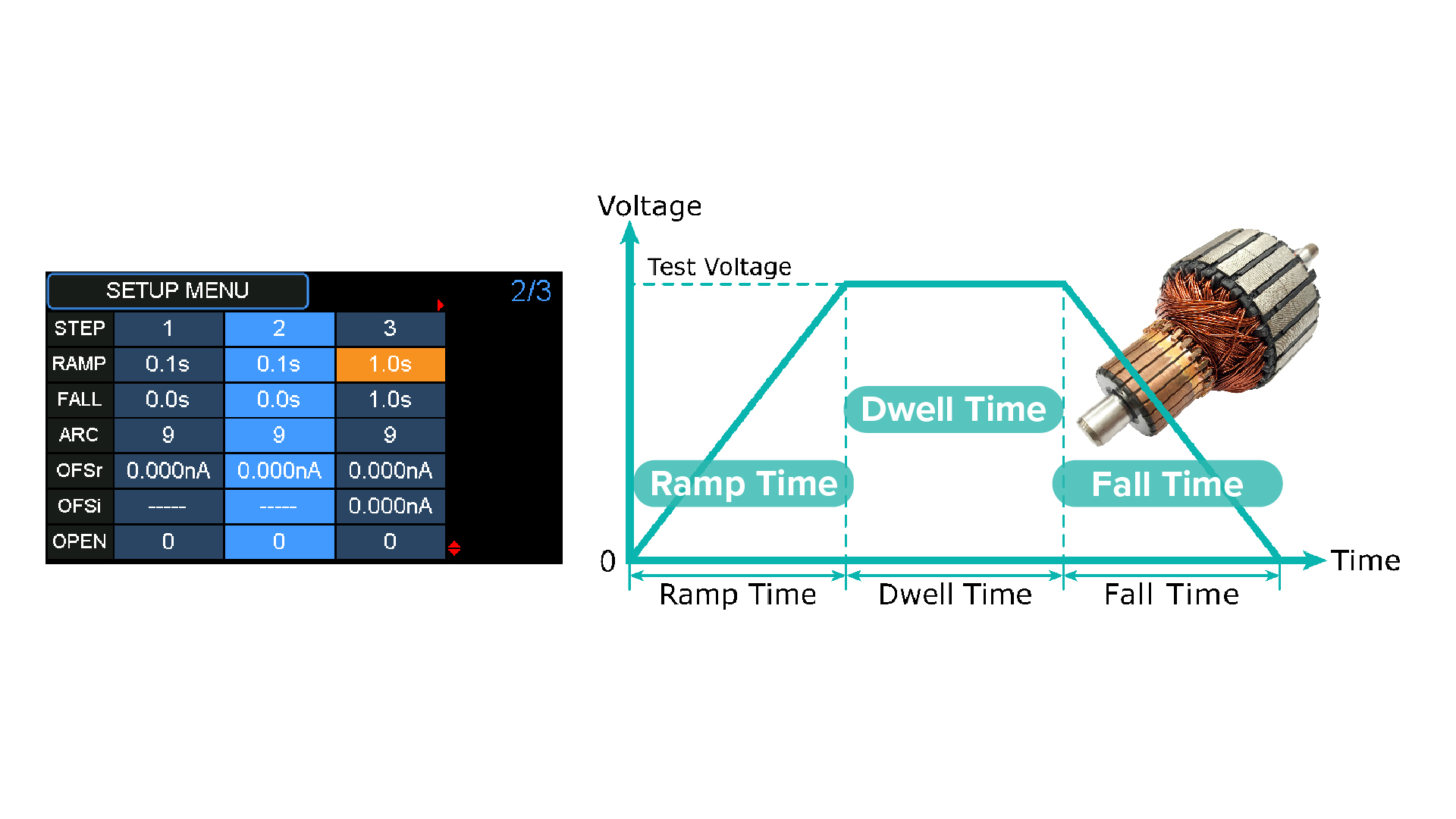

  •  Programmable Ramp / Dwell / Fall Time (0.1s~99.9s)

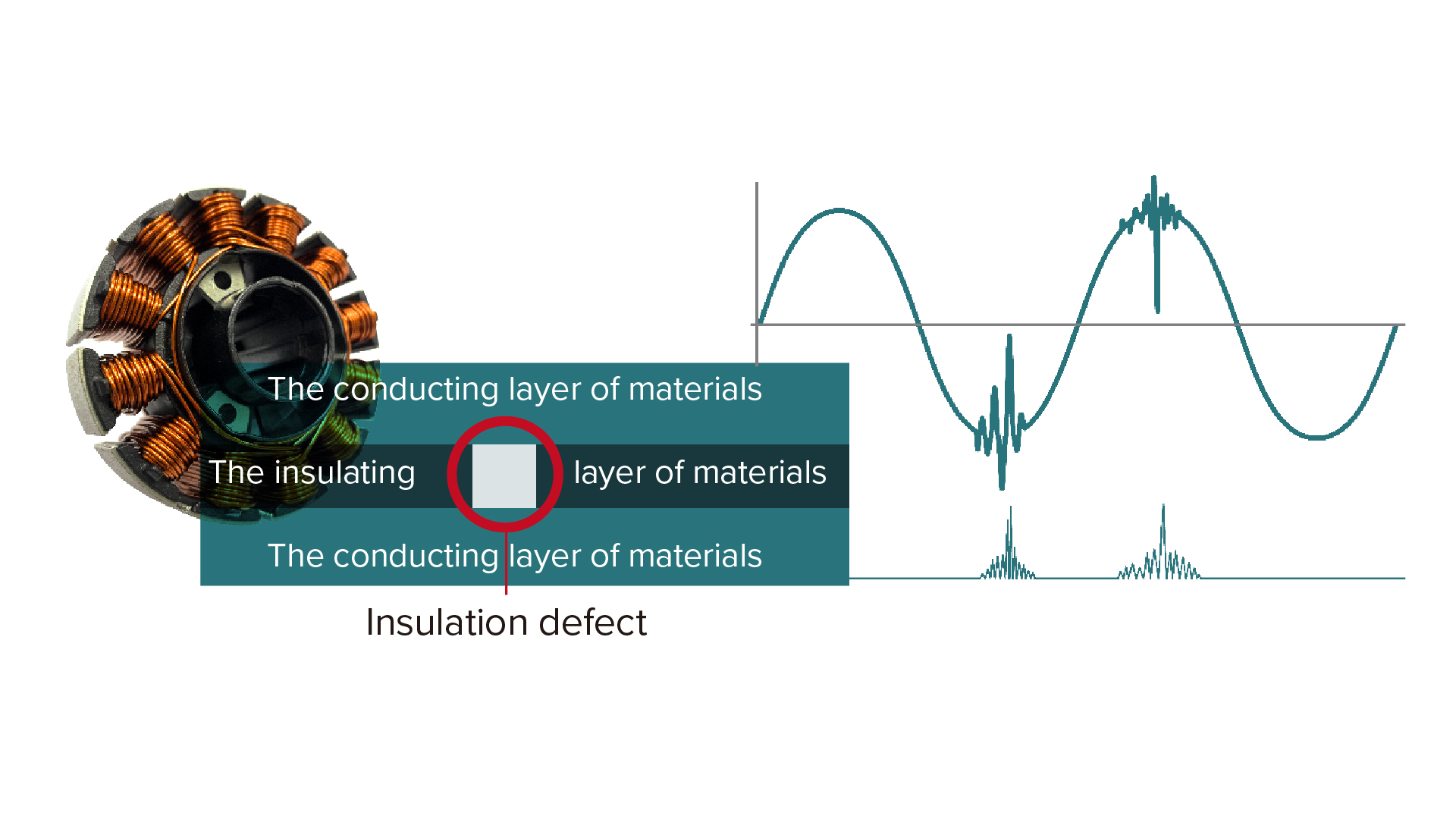

  •  Arc Detection Function
  •  True RMS measurement circui
  •  Safety Interlock Protection
  •  PC Connectivity and Remote Control Support

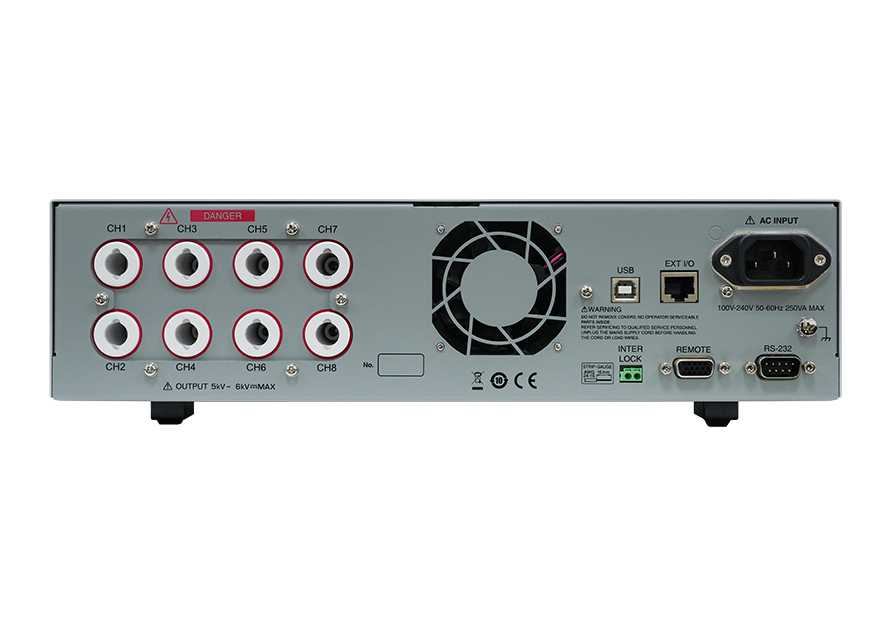

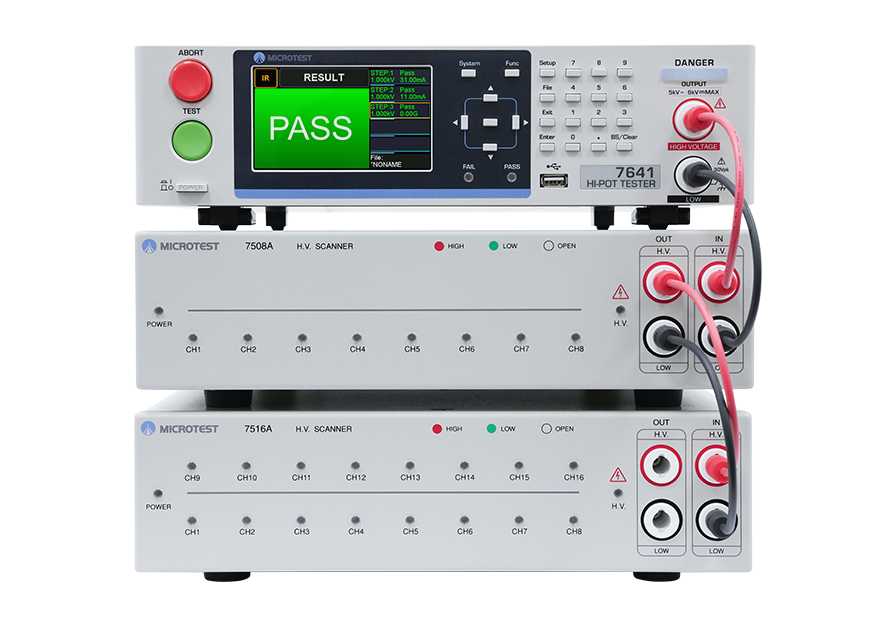

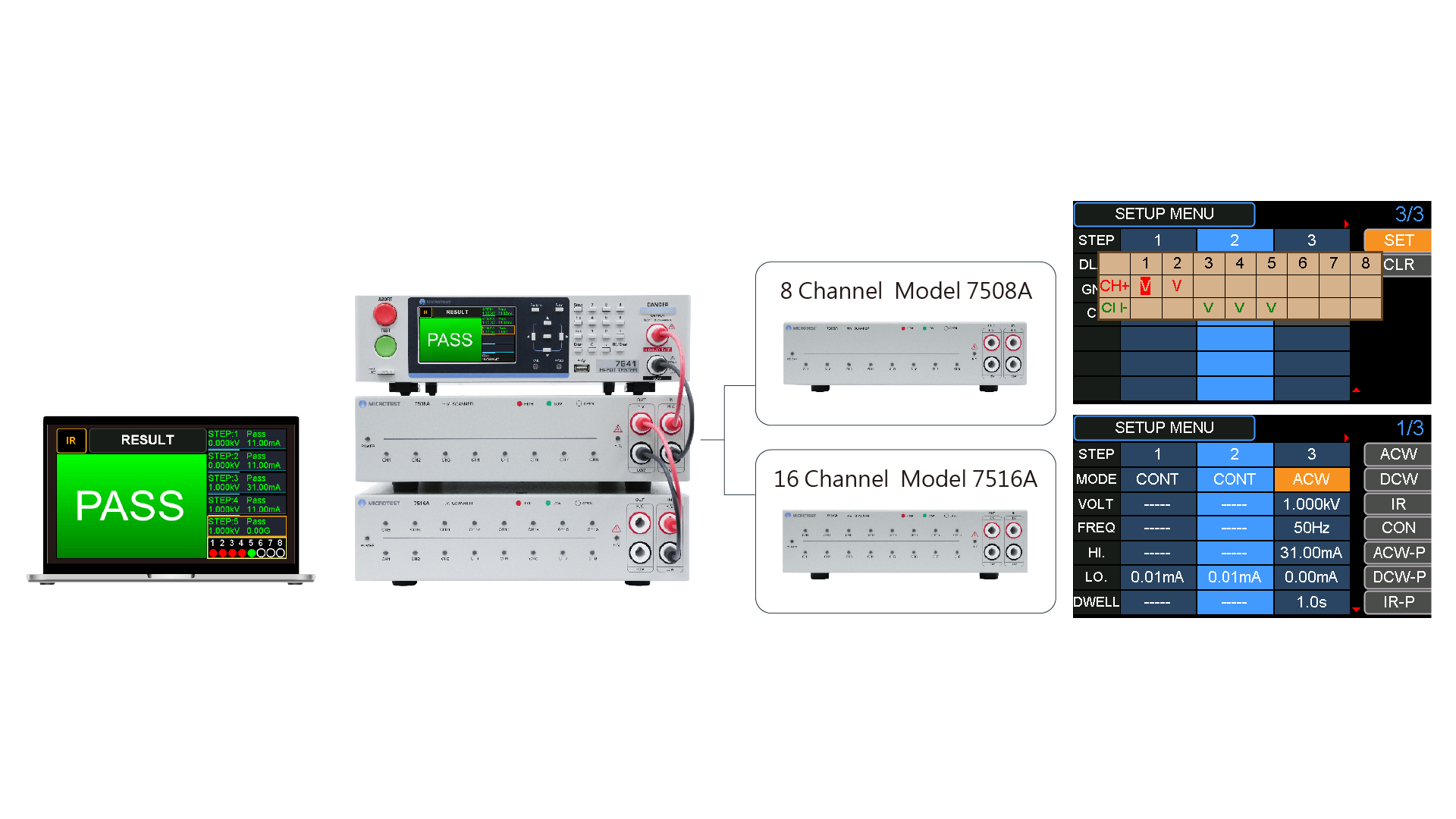

7640/7641 Hipot Tester is a 3-in-1 safety tester integrating AC Withstand Voltage, DC Withstand Voltage, and Insulation Resistance (IR) measurement functions. It provides AC hipot output up to 5kV with leakage current up to 30mA, and DC hipot output up to 6kV with leakage current up to 10mA. The insulation resistance test supports output voltage up to 6kV, with a measurement range from 200kΩ~100GΩ. For production line applications, the system supports multi-channel configurations: the 7641 offers up to 8 test channels per unit and can be expanded via 7508A / 7516A scanning boxes to a maximum of 72 channels. In addition, the instrument supports PC connectivity software and USB storage for test data.

Specifications

 Specification

Model 7641
Channel  8
AC Hipot
Output Voltage 10V~5000V
Voltage Resolution 1V
Voltage Accuracy ±(2% of setting +5V) no load
Output Frequency 50/60Hz
Rated Current (Max.) 30mA
Leakage Current 0~31mA
Lower Leakage Current Resolution 0.001mA
Lower Leakage Current Accuracy  ±(1% of reading +5uA)
Measuring Time  0.1~999s, 0 (Continuous)
Measuring Time Resolution  0.1s
Ramp, Dwell, Fall Time  0.1~99.9 sec
Arcing Detection  Level 0 for Off / Adjustable levels 1~9 (Level 1 is the most sensitive)
DC Hipot
Output Voltage 10V~6000V
Voltage Resolution 1V
Voltage Accuracy  ±(2% of setting +5V)
Rated Current (Max.)  10mA
Leakage Current 0~11mA
Lower Leakage Current Resolution  0.001mA
Lower Leakage Current Accuracy  ±(1% of reading +5uA)
Measuring Time  0.1~999s, 0 (Continuous)
Measuring Time Resolution 0.1s
Ramp, Dwell, Fall Time  0.1~99.9 sec
Arcing Detection  Level 0 for Off / Adjustable levels 1~9 (Level 1 is the most sensitive)
Insulation Resistance
Output Voltage 10V~6000V
Voltage Resolution 1V
Voltage Accuracy ±(2% of setting+5V)
Rated Current (Max.)  1mA
IR Upper Threshold  200k~100GΩ (Current measurement range 5nA ≦ i ≦ 1mA)
IR Resolution 0.001MΩ
IR Accuracy 50V { 200k~500MΩ, ±(5% of reading+30kΩ)/ 500M~1GΩ, ±(10% of reading+20MΩ)/ 1G~10GΩ, ±(25% of reading+100MΩ)}
100V { 200k~200MΩ, ±(2% of reading+30kΩ)/ 200M~1GΩ, ±(5% of reading+20MΩ)/ 1G~20GΩ, ±(25% of reading+100MΩ)}
500V { 500k~500MΩ, ±(2% of reading+30kΩ)/ 500M~10GΩ, ±(5% of reading+20MΩ)/ 10G~50GΩ, ±(20% of reading+100MΩ)}
≥ 1000V { 1M~1GΩ, ±(2% of reading+30kΩ)/ 1G~10GΩ, ±(5% of reading+20MΩ)/ 10G~100GΩ, ±(20% of reading+100MΩ)}
Measuring Time 0.1~999s, 0 (Continuous)
Measuring Time Resolution 0.1s
Ramp, Dwell, Fall Time 0.1~99.9 sec



General

Remote Control Test、Abort
Remote Output Signal Pass、Fail、HV output、Testing
Safety Switch  When testing, you need to short-circuit the INTER LOCK on the rear of the instrument to output the test voltage
Built-in Storage 7640(64 sets), 7641(32 sets)
USB Host Storage  Storage setting files and update firmware; the number of saved data sets depends on the USB capacity
List Mode  Each group contains up to 8 (7640)/ 16 (7641) steps
Interface RS-232、Remote、USB Host/Device、EXT.I/O
Power Supply Voltage：100Vac~240Vac/ Frequency：50/60Hz ±5%
Power Consumption 350VA
Display  480*272, 4.3" TFT LCD
Environment  Temperature：5℃~40℃, Humidity：20~80%RH
Dimension (W*H*D) 340×88×369.6mm(7640)/ 340×88×429.6mm(7641)
Weight 12Kg(7640)/ 14Kg(7641)
