Transformer Tester

A single unit provides comprehensive testing of essential parameters for transformers, including inductance value, leakage inductance value, DC resistance, AC resistance, quality factor, capacitance value, turns ratio, and checks for pin short circuits. Custom pneumatic test fixtures are available based on the transformer's (DUT) pin configuration, and it supports PC software connectivity.

MICROTEST 5260 series offers support for 20 sets of test channels, with measurement frequencies supported at (200kHz/500kHz/1MHz)

MICROTEST 5460 series supports 48 sets of test channels, with measurement frequencies supported at (200kHz/500kHz/1MHz)
Transformer Tester
All Products
Transformer Tester Transformer Testing Systems

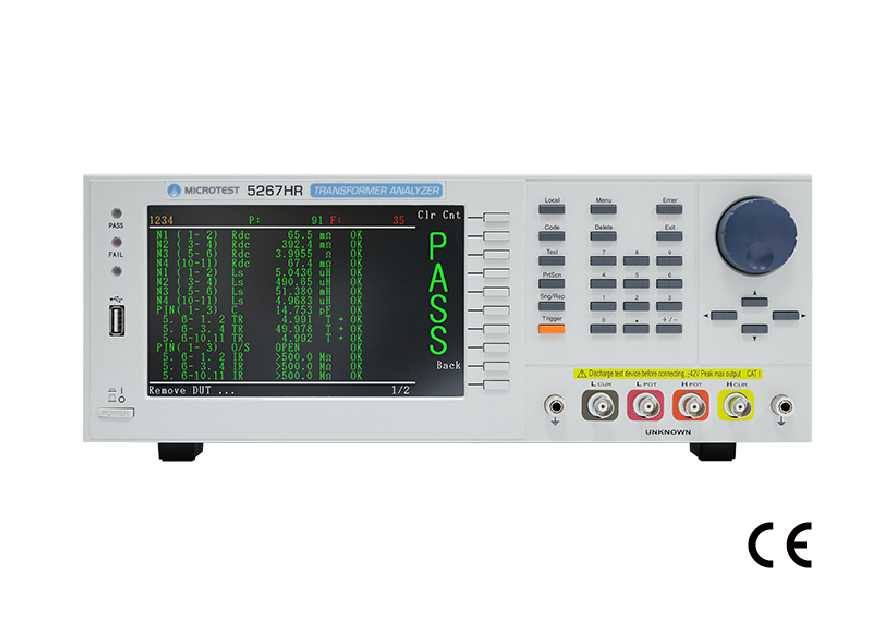

Transformer Tester 5260 Series|5265/5266/5267
Transformer Tester 5260 Series
5265/5266/5267
  •  Test Frequency: 10Hz-200kHz/500kHz/1MHz
  • 20 Channels
  • Built-in Meter Mode
  • Simultaneously display four parameters
  • Basic accuracy up to ±0.1%
  • Open circuit/short circuit function
  • RS-232、Handler、LAN、USB Host 、EXT.I/O
  • Pneumatic fixture F5620 built-in 100mA DC Bias
  • USB Host storages can storage setting files, data and capture the screen
MICROTEST 5260 Series Transformer Tester is a comprehensive device that enables measurement of important parameters for transformer products. It includes inductance, leakage inductance, DC resistance, AC resistance, quality factor, capacitance, turns ratio, and checks for pin short circuits, among other items. The measurement frequency range is from 10Hz to 200k/500k/1MHz. The tester has a built-in LCR meter measurement mode and is equipped with the F5620 pneumatic testing fixture. It provides 20 testing channels and supports 100mA DC bias testing. Customized testing fixture services are available to meet specific customer needs.
Inquiry Compare
Transformer Tester 5460 Series|5465/5466/5467
Transformer Tester 5460 Series
5465/5466/5467
  •  Test Frequency: 10Hz-200kHz/500kHz/1MHz
  • 48 Channels
  • Built-in Meter Mode
  • Simultaneously display four parameters
  • Basic accuracy up to ±0.1%
  • Open circuit/short circuit function
  • RS-232、Handler、LAN、USB Host 、EXT.I/O
  • Pneumatic fixture F5620 built-in 100mA DC Bias
  • USB Host storages can storage setting files, data and capture the screen
MICROTEST 5460 Series Transformer Tester is an all-in-one device designed for measuring important parameters of transformer products. It enables measurements of parameters such as inductance, leakage inductance, DC resistance, AC resistance, quality factor, capacitance, turns ratio, and pin short circuit detection. The measurement frequency range spans from 10Hz to 200k/500k/1MHz. The tester is equipped with built-in support for LCR meter measurement mode and comes with the F5468 pneumatic testing fixture. It provides 48 testing channels and supports 100mA DC bias testing. Customization services are available to tailor the tester to meet specific customer requirements.
Inquiry Compare
