F423903 SMD Tweezers Test Leads
F423903 SMD Tweezers Test Leads

  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：2-Terminal
  • Cable Length(approx.)：1.5m (RG178)
  • Weight (approx.)： 195g
  • Applicable Models： 6363-6367
  • Frequency：DC to 1 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：≤ 12mm
Inquiry Compare
F423904 SMD Tweezers Test Leads
F423904 SMD Tweezers Test Leads

  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：2-Terminal
  • Cable Length(approx.)：1.5m (RG178)
  • Weight (approx.)： 131g
  • Applicable Models： 6363-6367
  • Frequency：DC to 1 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：≤ 12mm
Inquiry Compare
F423905 SMD Test Fixture
F423905 SMD Test Fixture

  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：2-Terminal
  • Dimensions (approx.)：118x48x52mm (W/H/D)
  • Weight (approx.)： 235g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 10 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.10mm
Inquiry Compare

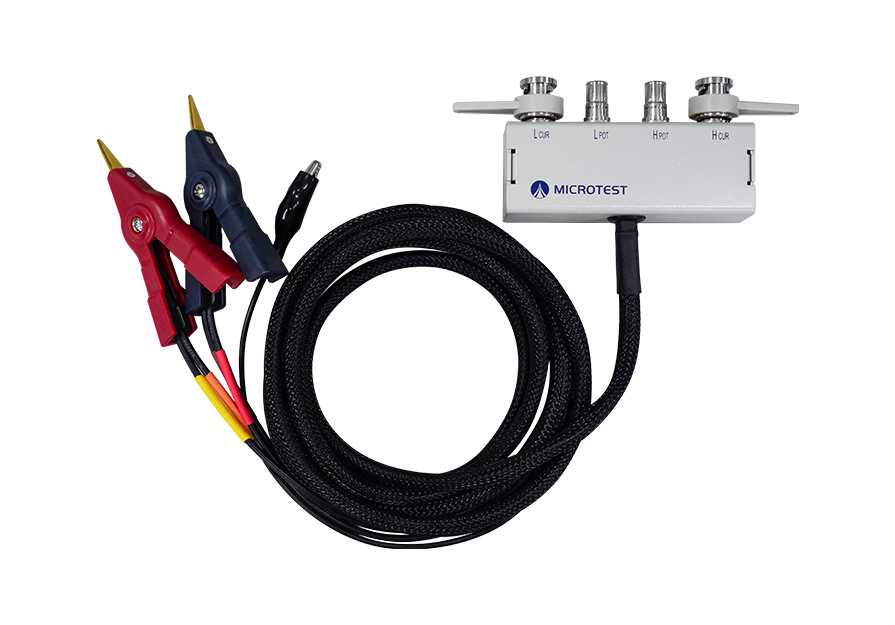

FX-LR0007 Kelvin Test Clip Cable
FX-LR0007 Kelvin Test Clip Cable

  • Terminal Connector ：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Cable Length(approx.)：100cm(RG174)
  • Weight (approx.)： 180g
  • Applicable Models ： 6363~6367/6630/6632/6621
  • Frequency：DC to 3MHz
  • Max. Voltage： ±42Vpeak max.(AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.15mm
Inquiry Compare
FX-LR0008 Kelvin Test Clip Cable
FX-LR0008 Kelvin Test Clip Cable

  • Terminal Connector： 4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Cable Length(approx.)：200cm(RG174)
  • Weight (approx.)：240g
  • Applicable Models ：6363~6367/6630/6632/6621
  • Frequency：DC to 1 MHz
  • Max. Voltage：±42Vpeak max.(AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.15mm
Inquiry Compare
F423906A Kelvin Clip Leads
F423906A Kelvin Clip Leads

  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Cable Length(approx.)：100cm (RG174)
  • Weight (approx.)： 178g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 1 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.6mm
Inquiry Compare
F423906B Kelvin Clip Leads
F423906B Kelvin Clip Leads

  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Cable Length(approx.)：50cm (RG174)
  • Weight (approx.)： 178g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 1 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.6mm
Inquiry Compare
F423503 DIP Test Fixture
F423503 DIP Test Fixture

  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Dimensions (approx.)：105x25x68mm (W/H/D)
  • Weight (approx.)： 152g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 10 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.63mm、Min.3mm
Inquiry Compare
F423504 DIP Test Fixture
F423504 DIP Test Fixture

  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Cable Length(approx.)：1.2m (RG174)
  • Weight (approx.)： 905g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 1MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.64mm
Inquiry Compare
