Fixtures

Various fixtures for different products.
Fixtures
All Products
Components Testing Fixture Material Testing Fixture Safety Testing Fixture Transformer Testing Fixture Cable Harness Testing Fixture Motor Coil Testing Fixture DC Bias Voltage Test Fixture
FX-0000C7 Dielectric Material Test Fixture
FX-0000C7 Dielectric Material Test Fixture

  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：2-Terminal
  • Dimensions (approx.)：115x155x126mm (W/H/D)
  • Weight (approx.)： 827g
  • Applicable Models： 6632、6630
  • Frequency：≤30MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：≤10mm
  • Electrode Diameter：38mm (Type A),5mm(Type B)
Inquiry Compare
FX-0000C8 Magnetic Material Test Fixture
FX-0000C8 Magnetic Material Test Fixture

  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Dimensions (approx.)：105x125x65mm (W/H/D)
  • Weight (approx.)： 738g
  • Applicable Models： 6632、6630
  • Frequency：≤30MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
Inquiry Compare
FX-000C20 Liquid Dielectric Material Test Fixture
FX-000C20 Liquid Dielectric Material Test Fixture

  • Terminal Connector：4-Terminal Pair, BNC
  • Dimensions (approx.)：115x129.5x159mm (W/H/D)
  • Weight (approx.)： 1650g
  • Applicable Models： 6632、6630
  • Frequency：≤30MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • Gap of electrodes：0.3/0.5/1/2/3/5 mm
  • Electrode Diameter：38mm
Inquiry Compare
F420001 External Voltage Bias Fixture
F420001 External Voltage Bias Fixture

  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Dimensions (approx.)：150x97x145mm (W/H/D)
  • Weight (approx.)： 829g
  • Applicable Models： 6632、6630
  • Frequency：DC to 1MHz
  • Max. Voltage： ±200V peak max.(AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.63mm、Min.3mm
Inquiry Compare

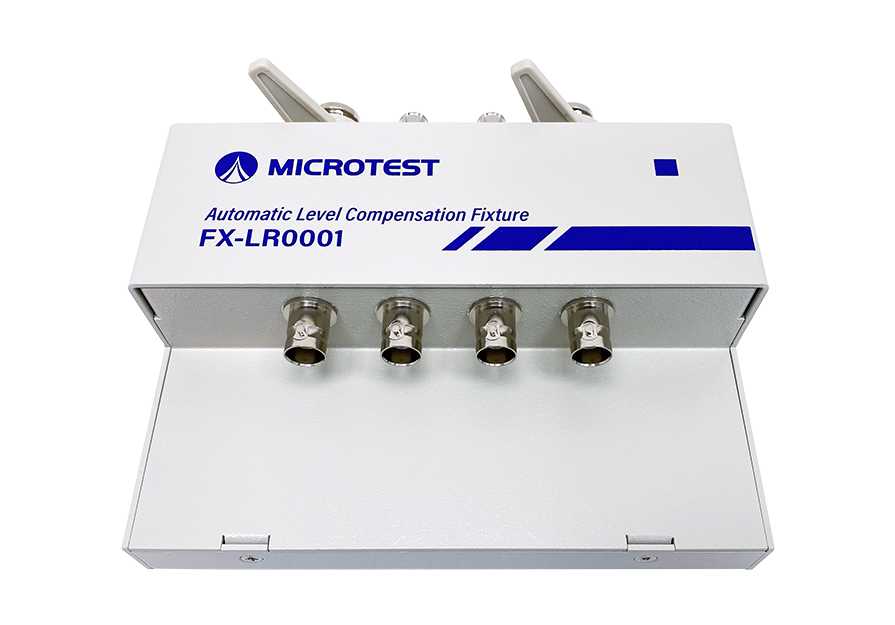

FX-LR0001 Automatic Level Compensation Fixture
FX-LR0001 Automatic Level Compensation Fixture

  • Measurement Frequency: 100Hz-100kHz
  • Output Voltage (ALC ON): AC 0.1-1Vrms
  • Maximum Output Current: 0.15A
  • Output Impedance (ALC + BOX ON): 10Ω
  • Output Impedance (ALC + BOX OFF): 25Ω/100Ω
  • Tested Component Size: ≤ 7mm
Inquiry Compare
F420003 External Voltage Bias Fixture
F420003 External Voltage Bias Fixture

  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Applicable Models： 6632、6630
  • Frequency：DC to 1MHz
  • Max. Voltage： ±40V peak max.(AC+DC)
  • Operating Temperature： 0°C to 55°C
Inquiry Compare
F420006 External Voltage Bias Fixture
F420006 External Voltage Bias Fixture

  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：2-Terminal
  • Dimensions (approx.)：180x150x115mm (W/H/D)
  • Applicable Models： 6632、6630
  • Frequency：DC to 1MHz
  • Max. Voltage： ±2000V peak max.(AC+DC)
  • Operating Temperature： 0°C to 55°C
Inquiry Compare

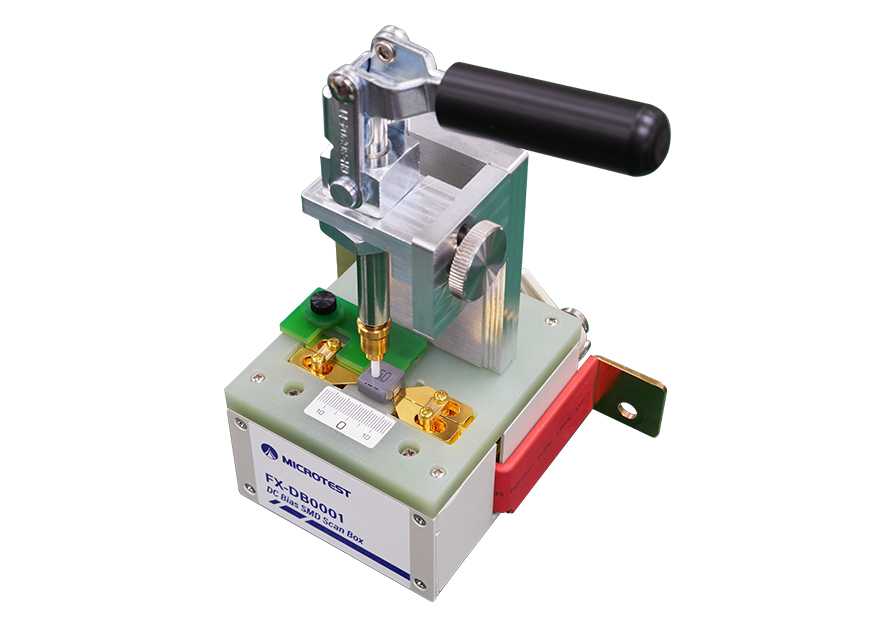

F6210 DC Bias Scan Box
F6210 DC Bias Scan Box

  • Applicable Models： 6225/6243/6223/6240/6220/6210
Inquiry Compare

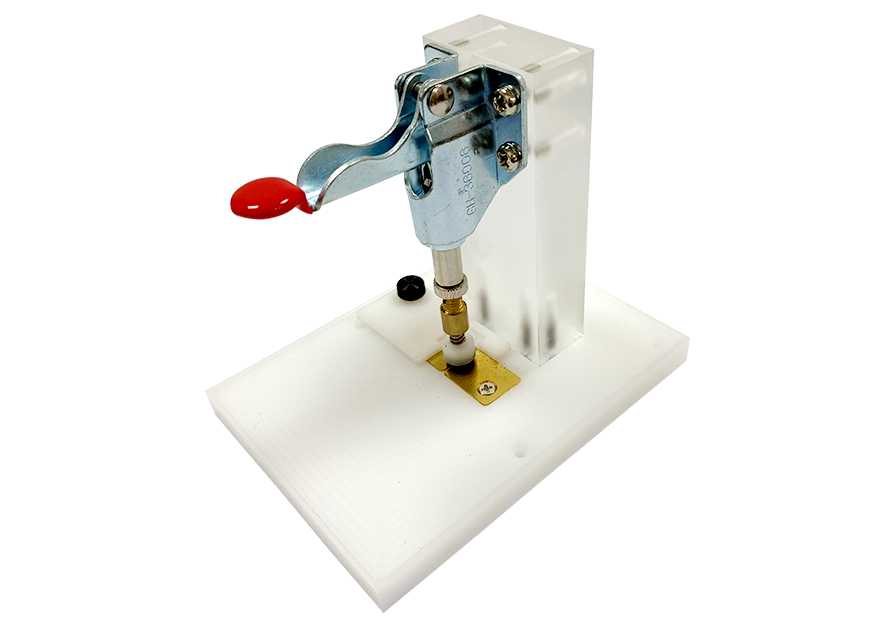

F6220 DC Bias SMD Fixture
F6220 DC Bias SMD Fixture

  • Applicable Models： 6225/6243/6223/6240/6220/6210
Inquiry Compare

Compare
