Cable Tester 8740 Series

Cable Tester 8740 Series|8740FA/8740NA/8740N

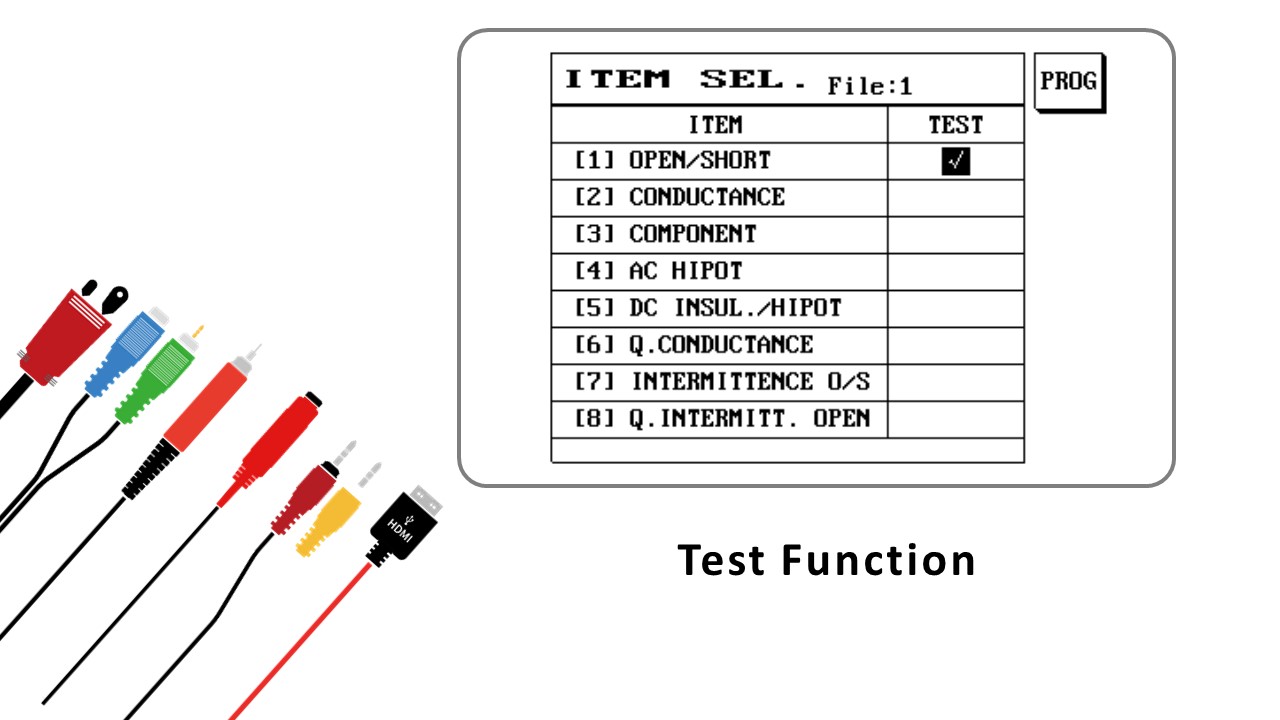

  • Test pin 128/256/512
  • Number of test file up to 500 sets

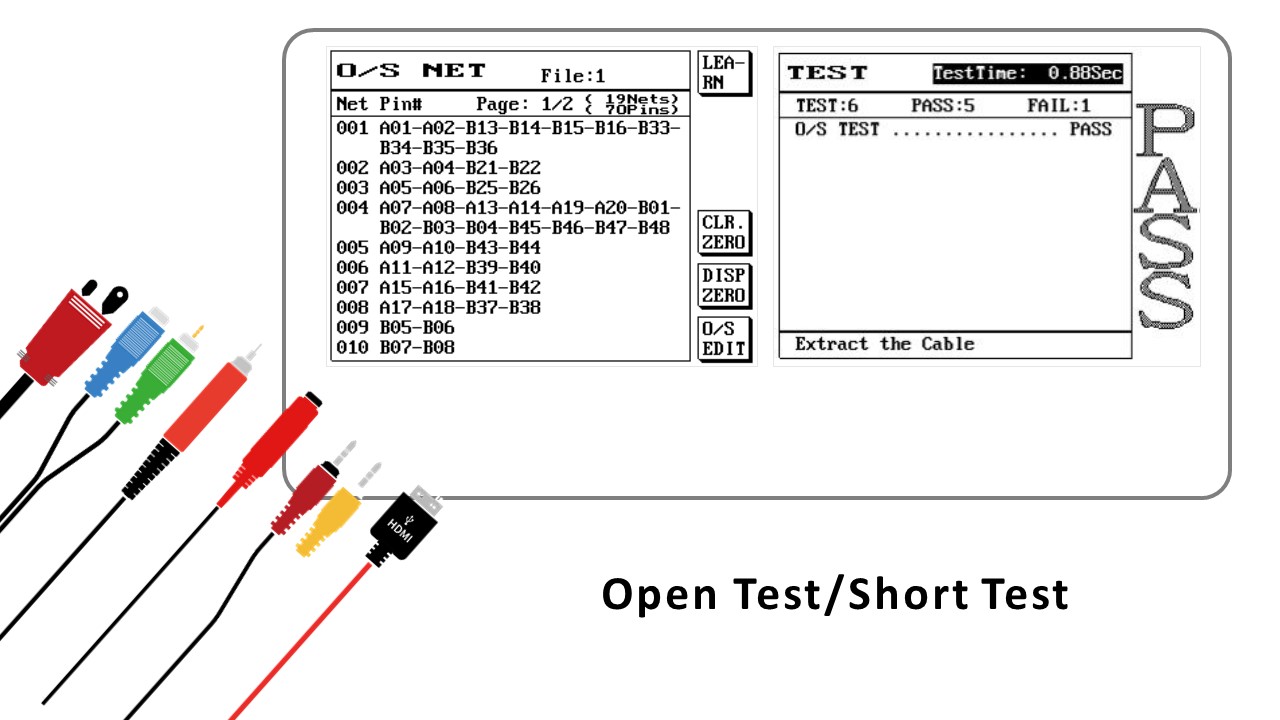

  • Open/Short
  • Cond. Resistance test
  • AC/DC Hipot Test
  • DC insulation
  • Quick conductance
  • Multiple DUT test
  • Support bar code scan and print function
  • Automatically identify the normal or reverse plugin of wire or connectors

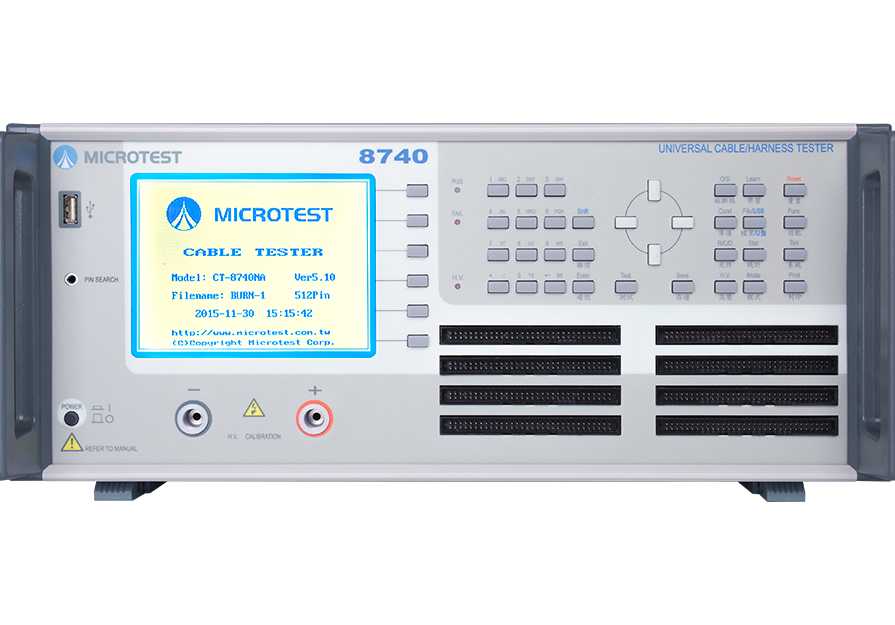

MICROTEST 8740 series Cable Harness Tester employs two-wire measurement technology and is suitable for products that do not require very low resistance measurements, considering the cost factors of the testing fixture. The testing capabilities include continuity impedance, open/short circuit, AC/DC safety withstand voltage, IR insulation, and component testing (resistor/capacitor/diode). The testing points can be selected from 128/256/512 options, with a maximum AC withstand voltage output of 1000V and a maximum DC withstand voltage output of 1500V. It supports PC connectivity software and BAR Code scanning, meeting the requirements for automated line testing in wire and connector production.



8740 Series
Model 8740FA  8740NA   8740N
AC Hi pot Test  100V-1000V 100V-700V   -
DC Hi pot Test  50V-1500V  50V-1000V  50V-1000V

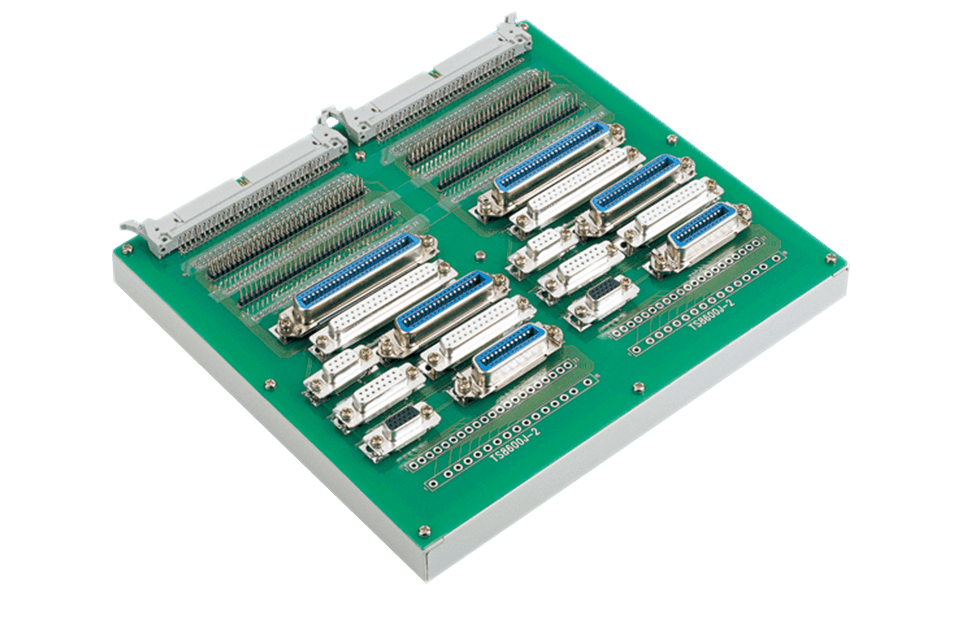

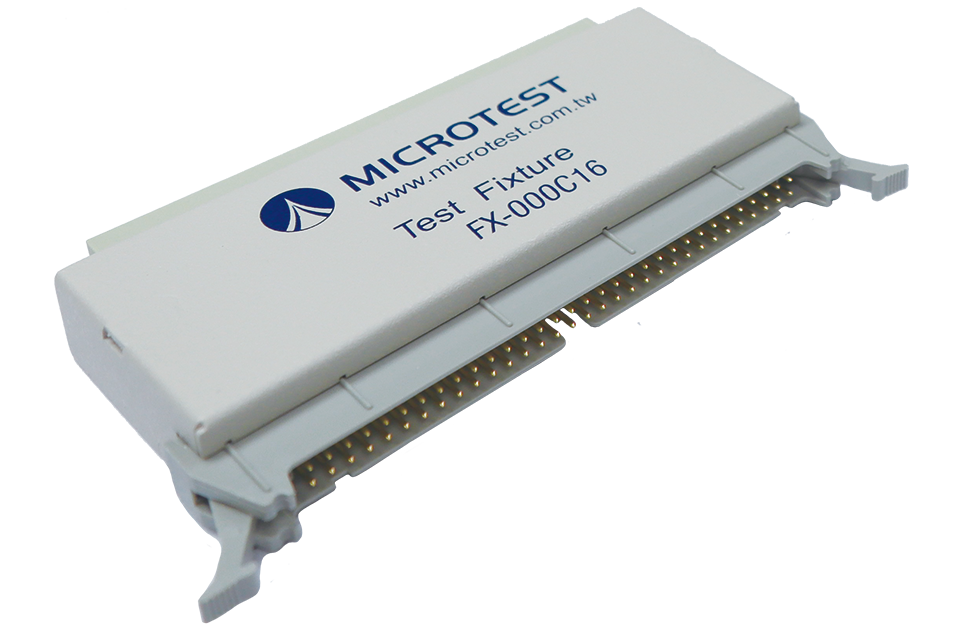

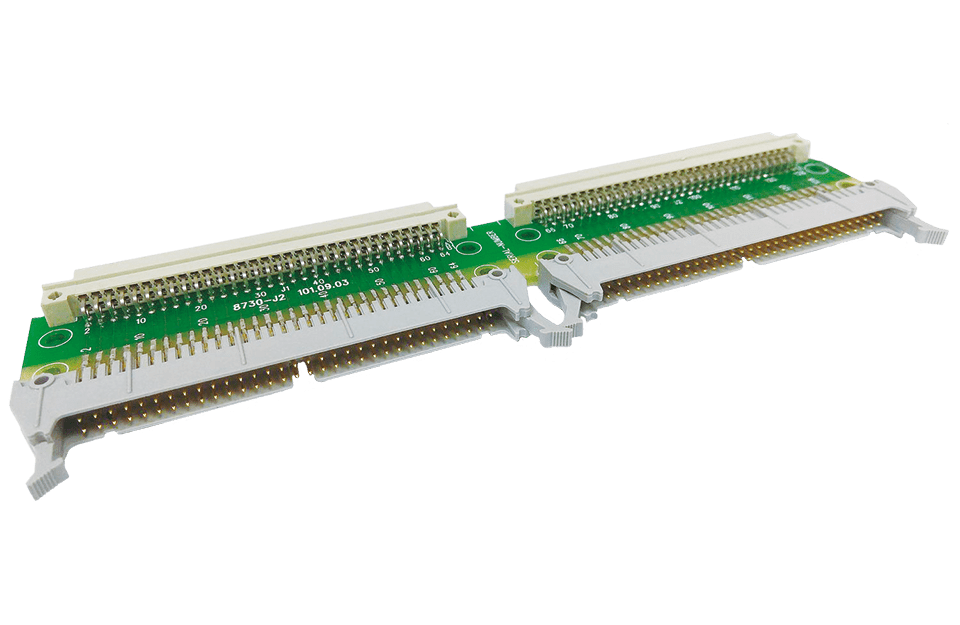

Test Pin    128/256/512

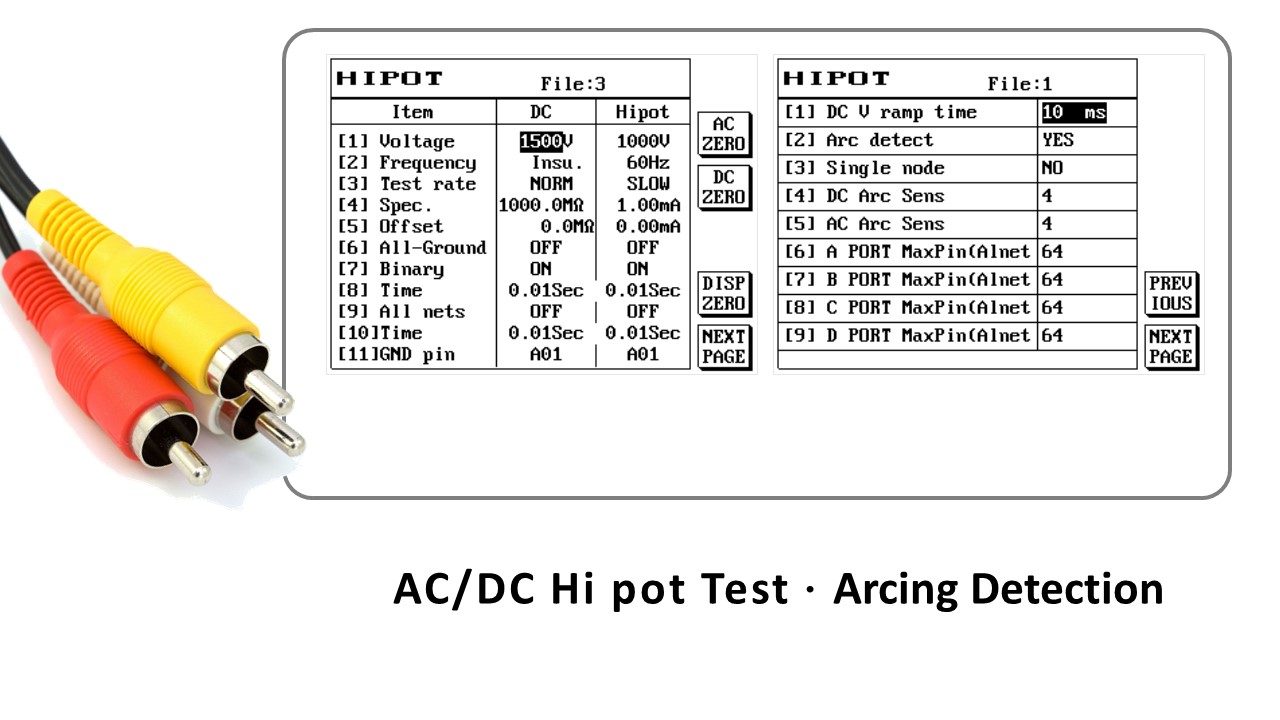

Safety Hi pot Test
AC Hipot Leakage Current 0.01mA -5mA
AC Arcing Detection 0-9
DC Hipot Leakage Current 0.1µA-1000µA
DC Arcing Detection 0-9

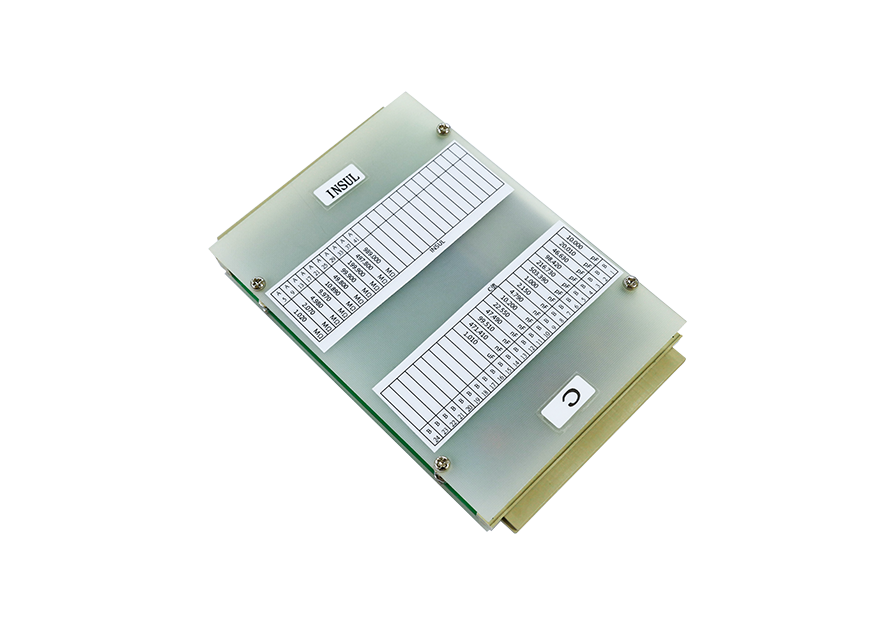

DC Hipot Insulation Resistance 1MΩ-1.2GΩ
Hipot Output Accuracy ±5%
Hipot Measurement Accuracy ±5%
Rated Output 5Vdc
Hipot Measurement Time 0.01秒 - 60秒
Wire Specifications Maximum allowable capacitance 5μF
Low Voltage Electrical Test

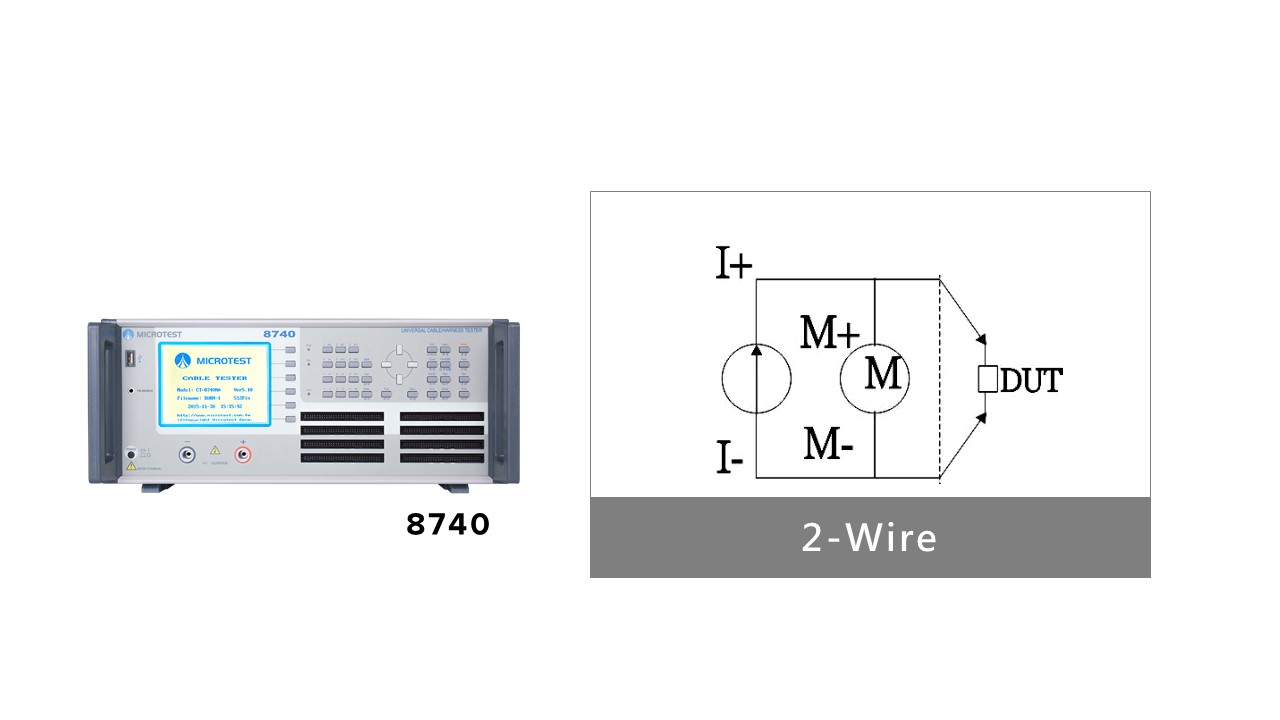

Measuring Mode 2-Wire Test
Conductance 100mΩ-52Ω
Intermittence Conductance 100mΩ-52Ω


Intermittence O/S

Quick Intermittence open circuit

O/S Determinal Judge
Single-Side Test

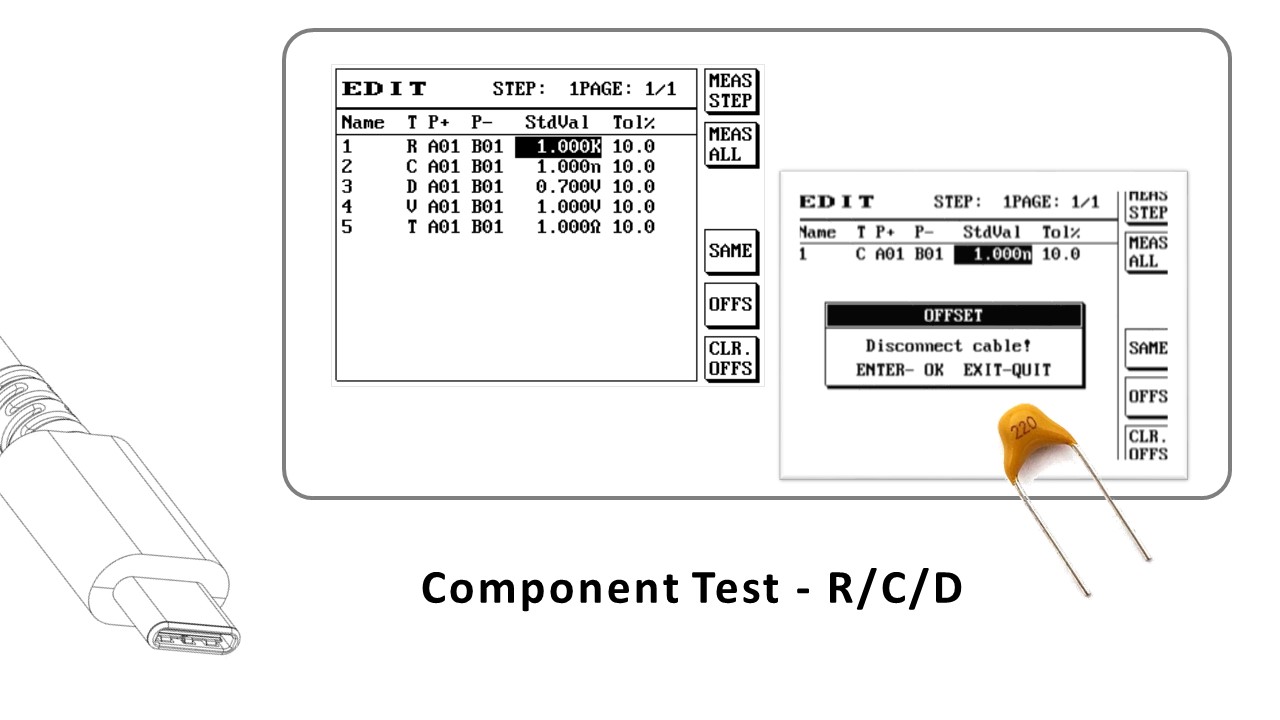

Component test
Resistance Measurement Range 100mΩ-2MΩ
Level Signal 2.4V (Fixed)
Current Signal 35mA
Capacitance Measurement Range 10pF-3µF
Level Signal 1.2V (Fixed)
Frequency Signal

AUTO Gear (Fixed)


Diode Measurement Range 0-6.8V
Other Function

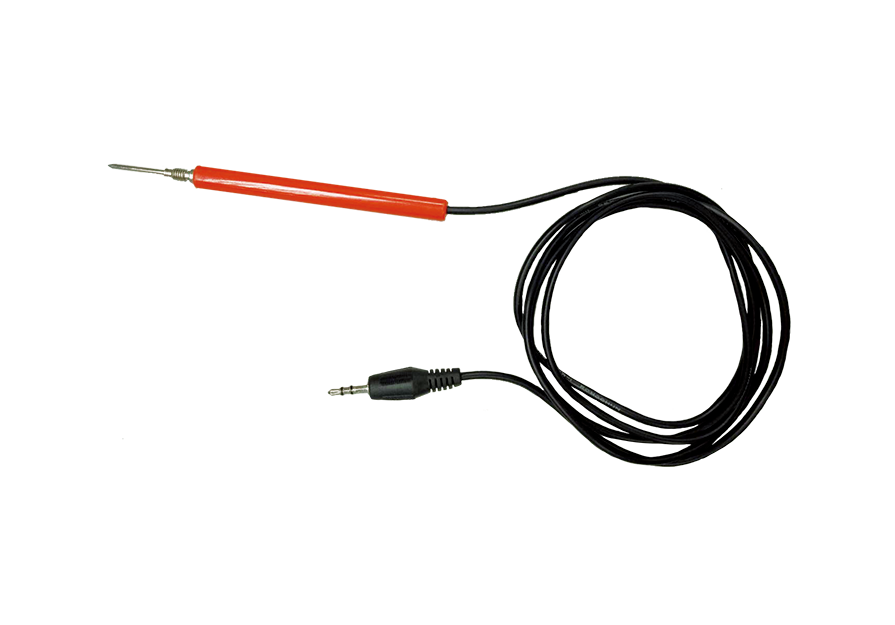

Advanced Functions Programmable continuous test / Pin search/Auto-diagnosis

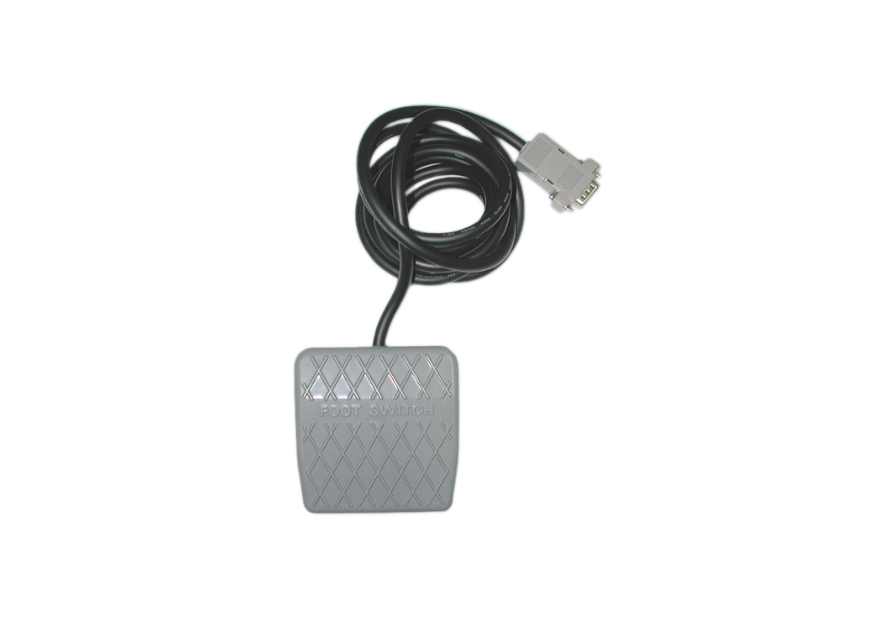

Test Scan Mode Auto, Manual, External Trigger
Measurement Signal Low Voltage Measurement Signal
Panel System/Rapid /Edit / Function
Indicator Pass/Fail HV LED red-green indicator lights / Screen Display /Sound



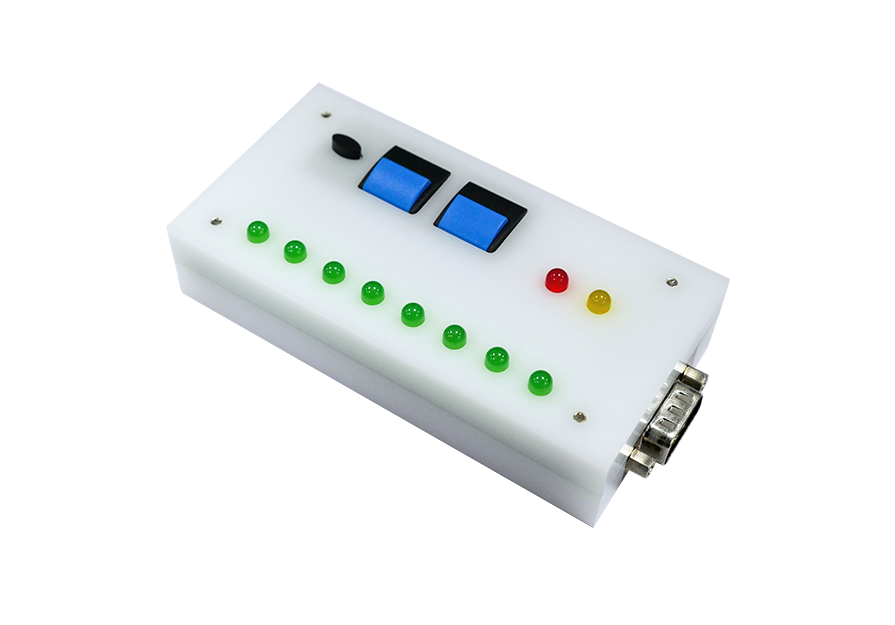

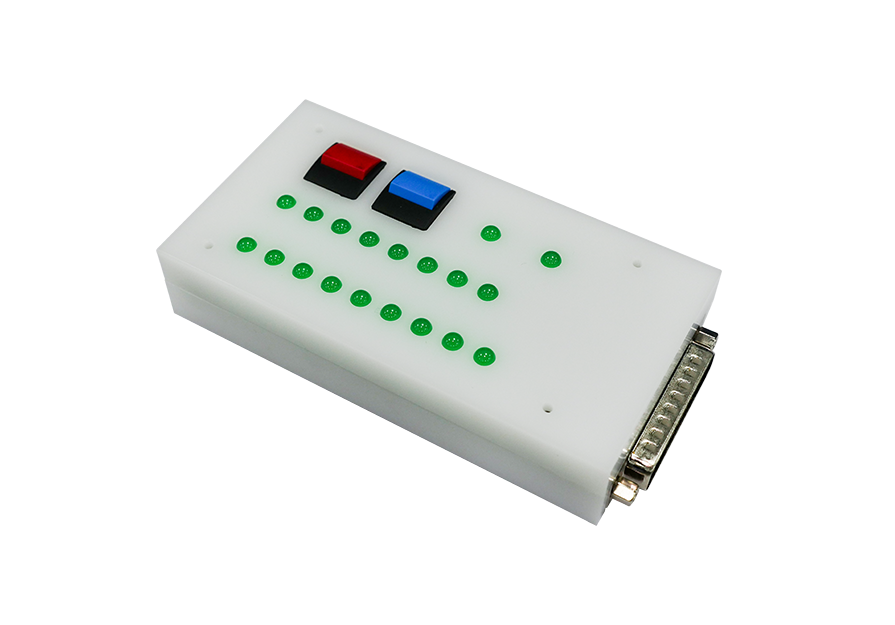

Operation Manual, Auto, Remote Control
Built-in Storage Number of test file up to 500 sets
Power Supply Fixed Voltage 115/230 Vac ±10%
Frequency 60/50Hz
Power consumption 300VA
Environment Temperature 0℃-40℃
Humidity RH≦75%
Display 320*240 dot-matrix display



128PIN 256PIN 512PIN
435x145x406 mm 435x145x406 mm 435x190x406 mm
Weight 8.44Kg 9.3Kg 14Kg

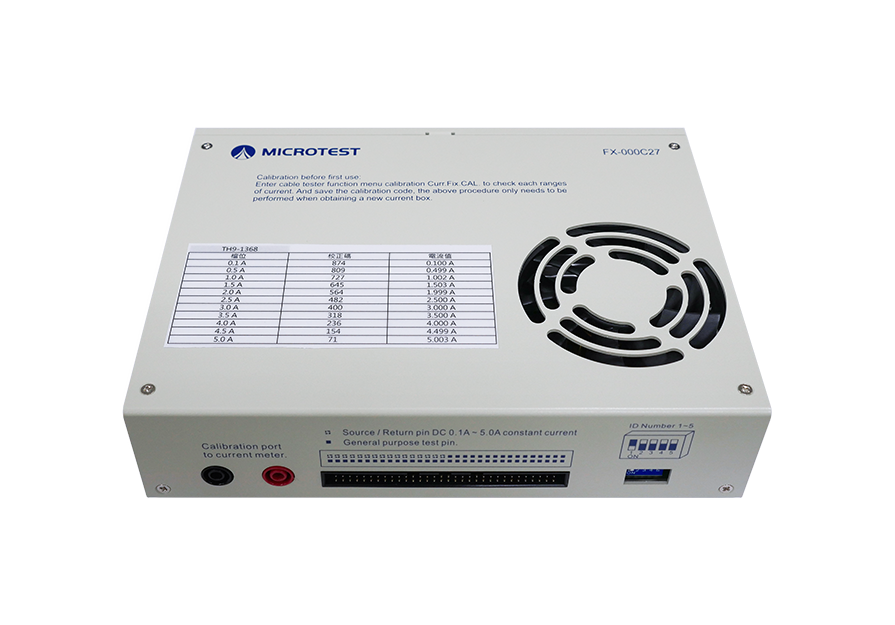

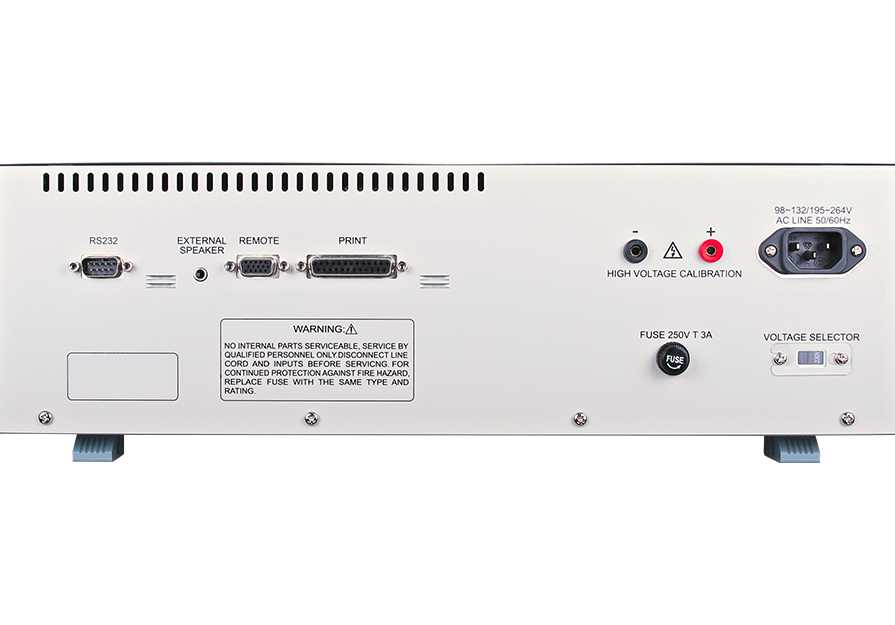

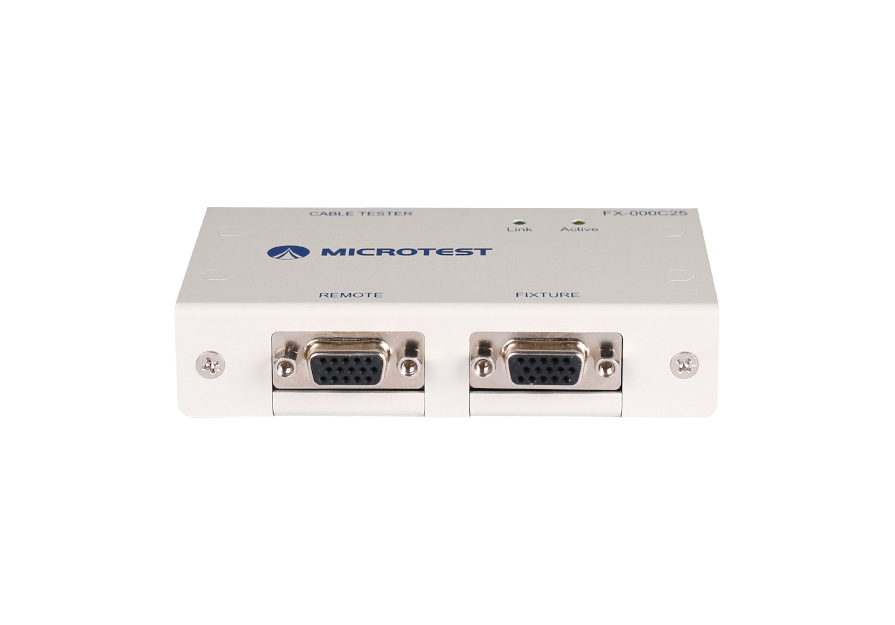

Interface RS-232, USB Host, Print, Remote
