DC Bias Current Source/System

MICROTEST DC Bias Source Test System provides precise verification of magnetic components' magnetic saturation current (Isat) and temperature rise current (Irms). It is equipped with a DC bias current source integrated with an LCR meter/Impedance Analyzer and can be configured as a desktop unit or integrated into a testing cabinet. Operation settings and test results are displayed on the LCR meter/Impedance Analyzer and can also be accessed through PC connection software.

The DC bias current output ranges up to a maximum of 320A/120A/60A/20A, with frequency responses of 100Hz-30MHz/10MHz/3MHz.

For research and development (R&D) or scientific research institutions, there is the option of the 6632+ / 6632S+ series, which includes a current curve sweep analysis feature.

For production lines, the 6350+ series is available as an option.
DC Bias Current Source/System
DC Bias Current Test System|6632+ Series
DC Bias Current Test System
6632+ Series
  • Current and frequency graphic scanning analysis
  • Frequency response 100Hz-30MHz /10MHz/3MHz
  • DC Bias Current Output Max.320A/120A/60A/20A
  • DCR Measurement function
  • Built-in the Permeability-μr
  • Long-term consecutive maximum power output
  • Direct Handler interfaces control through Impedance Analyzer
  • Support meter mode and list mode, sweep mode
Inquiry Compare
DC Bias Current Test System|6632S+ Series
DC Bias Current Test System
6632S+ Series
  • Current and frequency graphic scanning analysis
  • Frequency response 100Hz-30MHz /10MHz/3MHz
  • DC Bias Current Output Max.320A/120A/60A/20A
  • Equivalent Circuit Analysis-6632S
  • DCR Measurement function
  • Built-in the Permeability-μr
  • Long-term consecutive maximum power output
  • Direct Handler interfaces control through Impedance Analyzer
  • Support meter mode and list mode, sweep mode
Inquiry Compare
DC Bias Current Test System|6350+ Series
DC Bias Current Test System
6350+ Series
  • Frequency Response 100Hz-200k/500kHz
  • Supports maximum output DC bias current of 320A/120A
  • DCR measurement function
  • Can sustain maximum power output for long periods of time
  • Output impedance: 100Ω
  • Open/short circuit calibration function
  • Supports meter measurement mode/multi-step list testing
Inquiry Compare

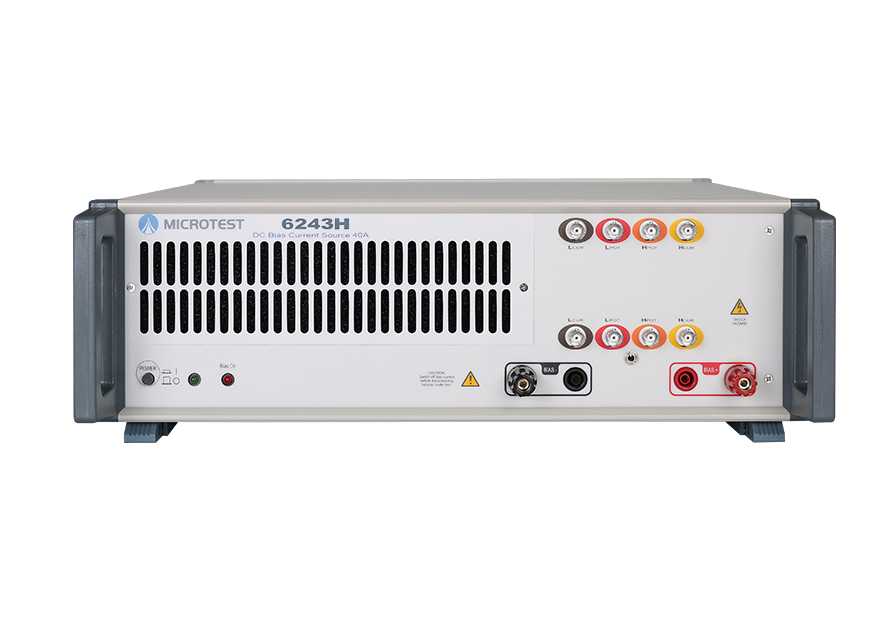

DC Bias Current Source|6243 (40A)
DC Bias Current Source
6243 (40A)

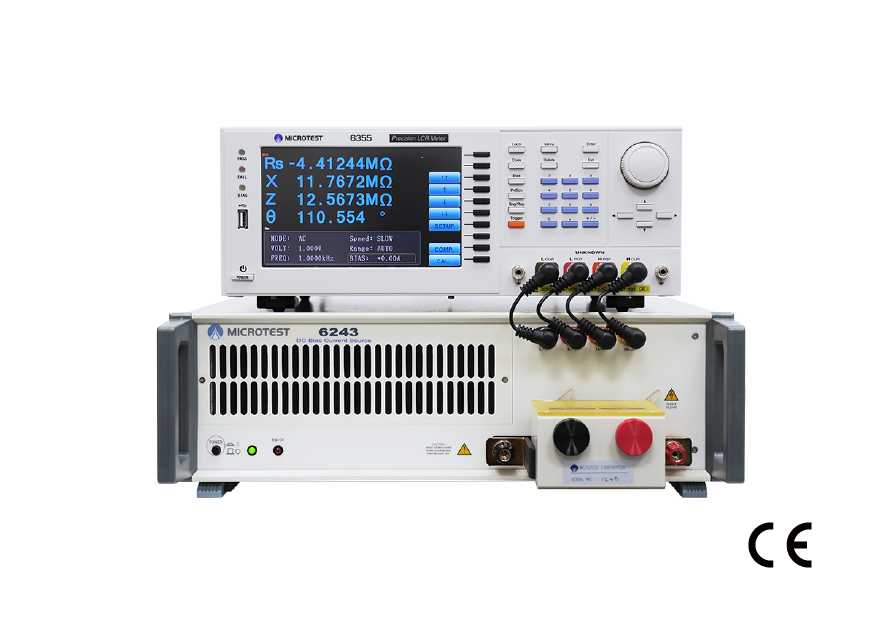

  •  Max current output: 320A (8 unit)
  • Each individual unit can output DC Bias Current 40A
  • Option LCR Meter/Impedance Analyzer
Inquiry Compare

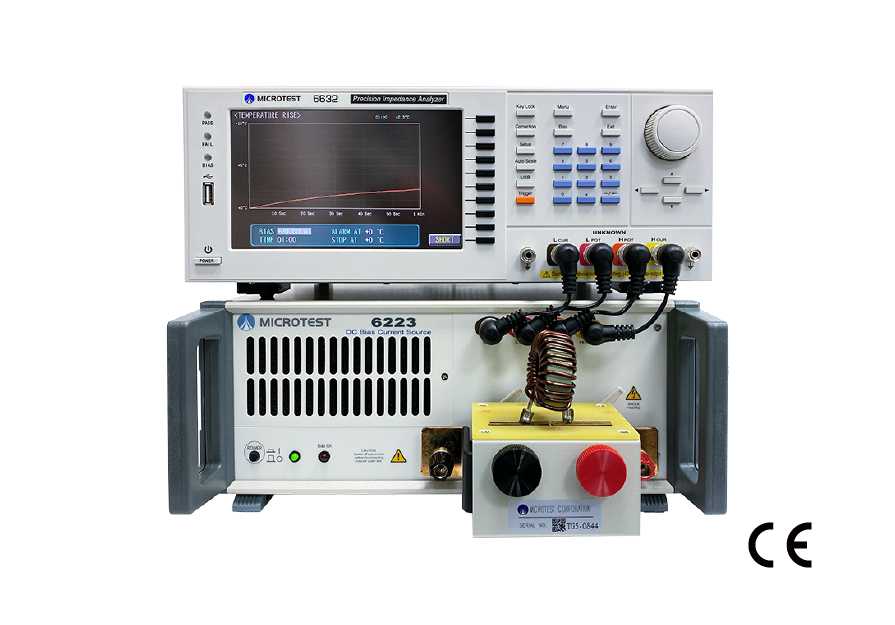

DC Bias Current Source|6223 (20A)
DC Bias Current Source
6223 (20A)
  • Max current output: 120A (6 unit)
  • Each individual unit can output DC Bias Current 20A
  • Option LCR Meter/Impedance Analyzer
Inquiry Compare

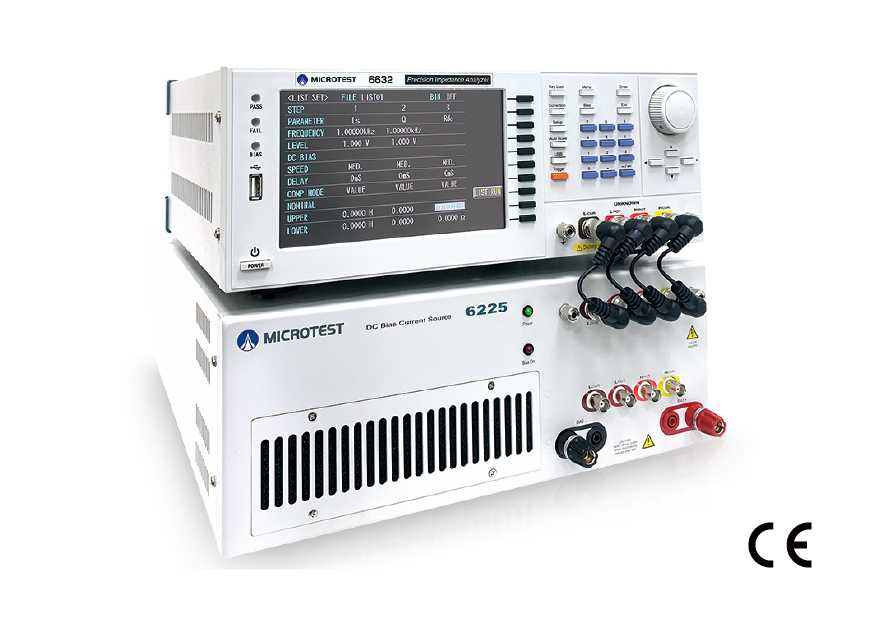

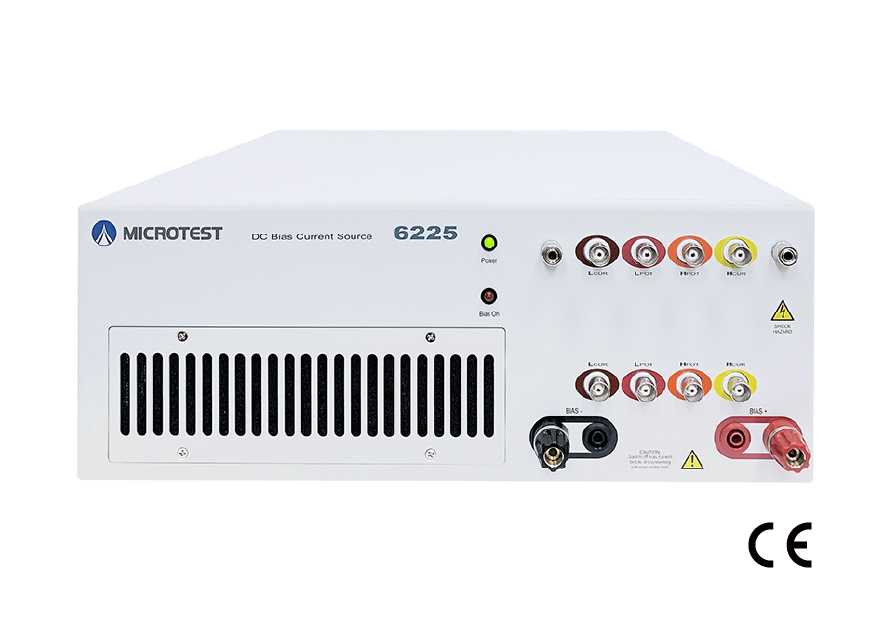

DC Bias Current Source|6225 (20A)
DC Bias Current Source
6225 (20A)
  • Max current output: 20A
  • Each individual unit can output DC Bias Current 20A
  • Option 6632 Impedance Analyzer
Inquiry Compare

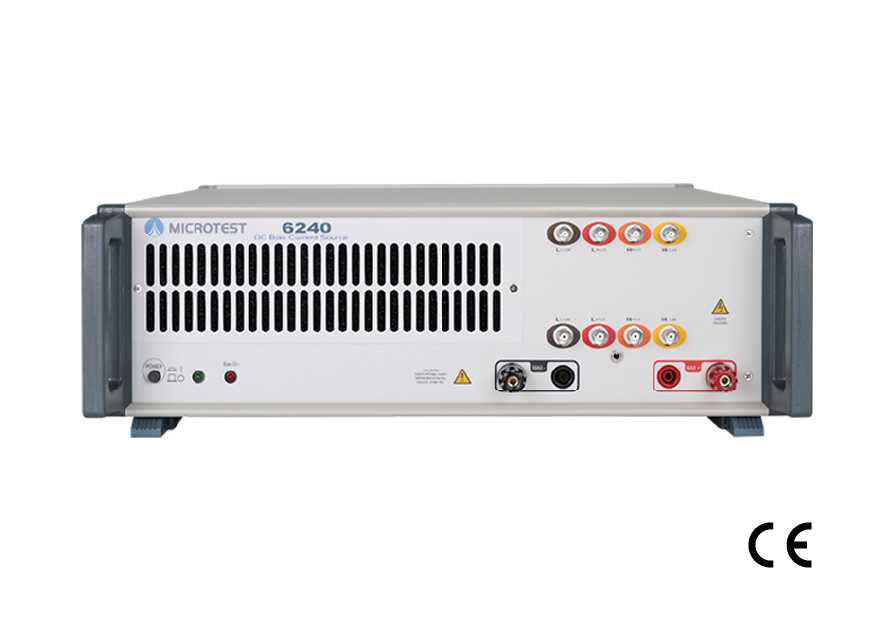

DC Bias Current Source| 6240 (40A)
DC Bias Current Source
6240 (40A)
  • Max current output: 320A (8 unit)
  • Each individual unit can output DC Bias Current 40A
  • Option LCR Meter/Impedance Analyzer
Inquiry Compare

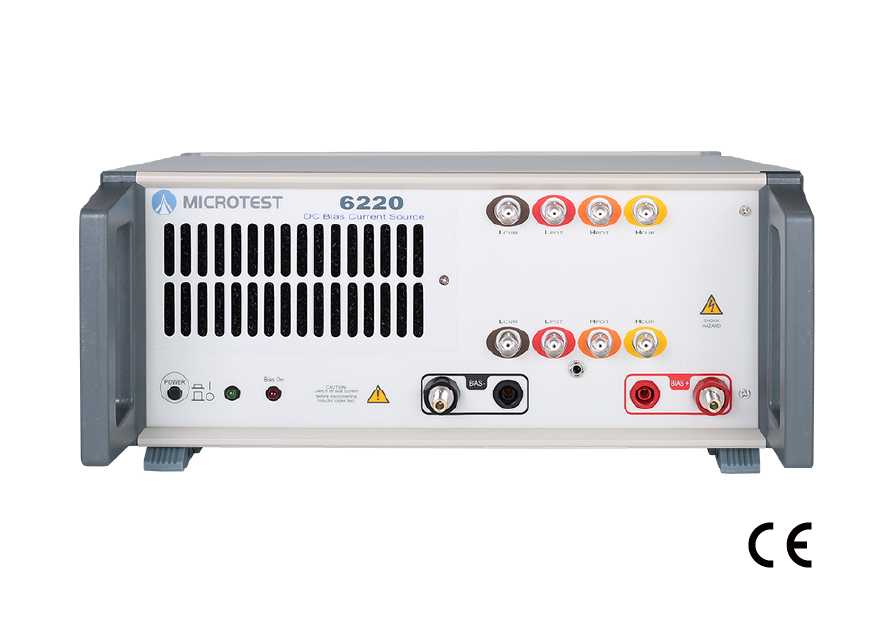

DC Bias Current Source|6220 (20A)
DC Bias Current Source
6220 (20A)
  • Max current output: 120A (6 unit)
  • Each individual unit can output DC Bias Current 20A
  • Option 6632 Impedance Analyzer
Inquiry Compare

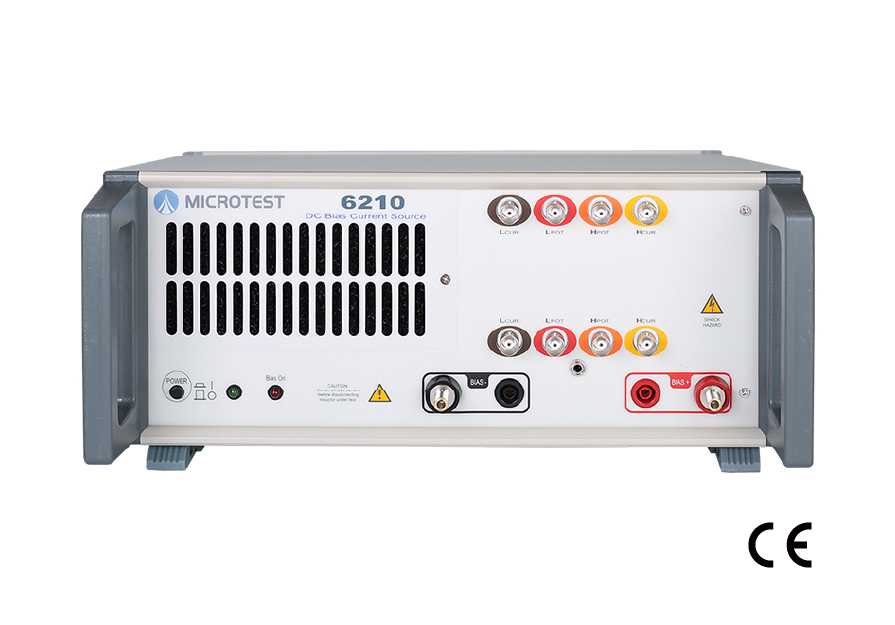

DC Bias Current Source|6210 (10A)
DC Bias Current Source
6210 (10A)
  • Max current output: 60A (6 unit)
  • Each individual unit can output DC Bias Current 10A
  • Option 6632 Impedance Analyzer
Inquiry Compare
