Transformer Testing Systems

MICROTEST Transformer Testing System integrates low-voltage electrical characteristics and safety testing into a single workstation. It supports measurement frequencies at (200kHz/500kHz/1MHz) and is equipped with 21 sets of channel scanning test fixtures, streamlining multi-station testing for significant labor savings.

2-in-1 (Transformer Low-Voltage Testing + AC/DC Withstand Voltage Insulation Testing)

3-in-1 (Transformer Low-Voltage Testing + AC/DC Withstand Voltage Insulation Testing + Coil Layer Short Circuit Testing)

9560 (Transformer Low-Voltage Testing + AC/DC Withstand Voltage Insulation Testing + Coil Layer Short Circuit Testing + AC Source)
Transformer Testing Systems
All Products
Transformer Tester Transformer Testing Systems
2-in-1 Transformer Testing System|Low Voltage+Safety
2-in-1 Transformer Testing System
Low Voltage+Safety
  • Low Voltage Electrical Test
  • Hi pot/ Insulation Test
  • 20 Channels
  • Test Frequency (200k/500k/1MHz)
  • AC Voltage Output 5000V
  • DC Voltage Output 6000V
  • Insulation Resistance 12000MΩ
Inquiry Compare
3-in-1 Transformer Testing System|Low Voltage+Safety+Impulse
3-in-1 Transformer Testing System
Low Voltage+Safety+Impulse
  • Low Voltage Electrical Test
  • Hi pot/ Insulation Test
  • Impulse Test (Layer Short Circuit)
  • 20 Channels
  • Test Frequency (200k/500k/1MHz)
  • AC Voltage Output 5000V
  • DC Voltage Output 6000V
  • Insulation Resistance 12000MΩ
Inquiry Compare

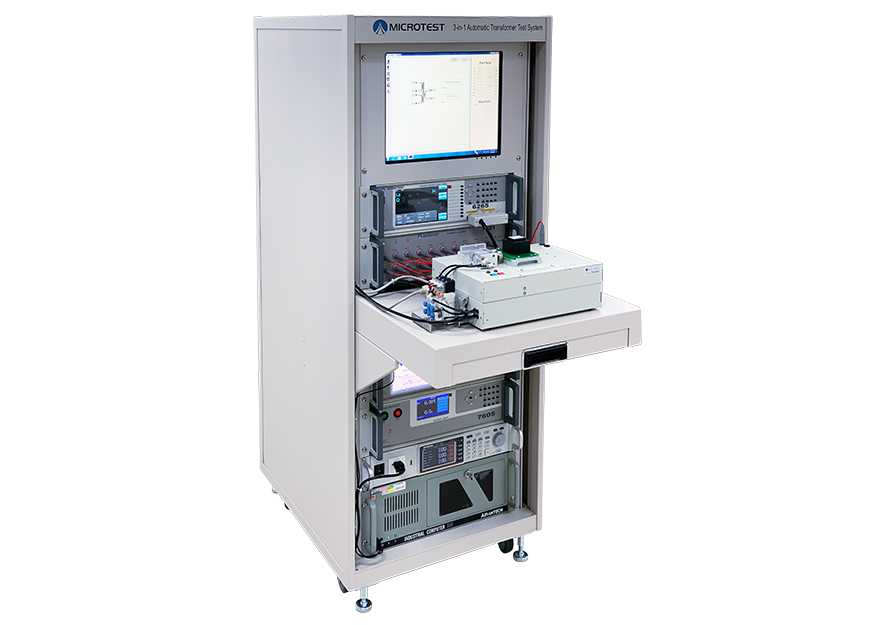

Automatic Transformer Test System| 9560 (3-in1+AC Source)
Automatic Transformer Test System
9560 (3-in1+AC Source)
  • Low Voltage Electrical Test
  • Hi pot/ Insulation Test
  • Impulse Test (Layer Short Circuit)
  • 21 Channels
  • Test Frequency (200k/500k/1MHz)
  • AC Voltage Output 5000V
  • DC Voltage Output 6000V
  • Insulation Resistance 12000MΩ
  • Excitation Current /Open- circuit voltage /The no-load power
Inquiry Compare
