DC Bias Current Source

DC Bias Current Source, when coupled with an LCR Meter or Impedance Analyzer, allows for the analysis of saturation characteristics in components such as inductors, coils, ferrite cores, and iron cores. It enables precise verification of magnetic saturation current (Isat) and temperature rise current (Irms).

Model 6243H: Single unit output of 40A, stackable up to 16 units, with a maximum combined output of 640A, and a frequency response of 100Hz-10MHz.

Model 6243: Single unit output of 40A, stackable up to 8 units, with a maximum combined output of 320A, and a frequency response of 100Hz-10MHz.

Model 6223: Single unit output of 20A, stackable up to 6 units, with a maximum combined output of 120A, and a frequency response of 100Hz-10MHz.

Model 6240A: Single unit output of 40A, stackable up to 8 units, with a maximum combined output of 320A, and a frequency response of 100Hz-3MHz.

Model 6220: Single unit output of 20A, stackable up to 6 units, with a maximum combined output of 120A, and a frequency response of 100Hz-3MHz.

Model 6210: Single unit output of 10A, stackable up to 6 units, with a maximum combined output of 60A, and a frequency response of 100Hz-3MHz.
DC Bias Current Source

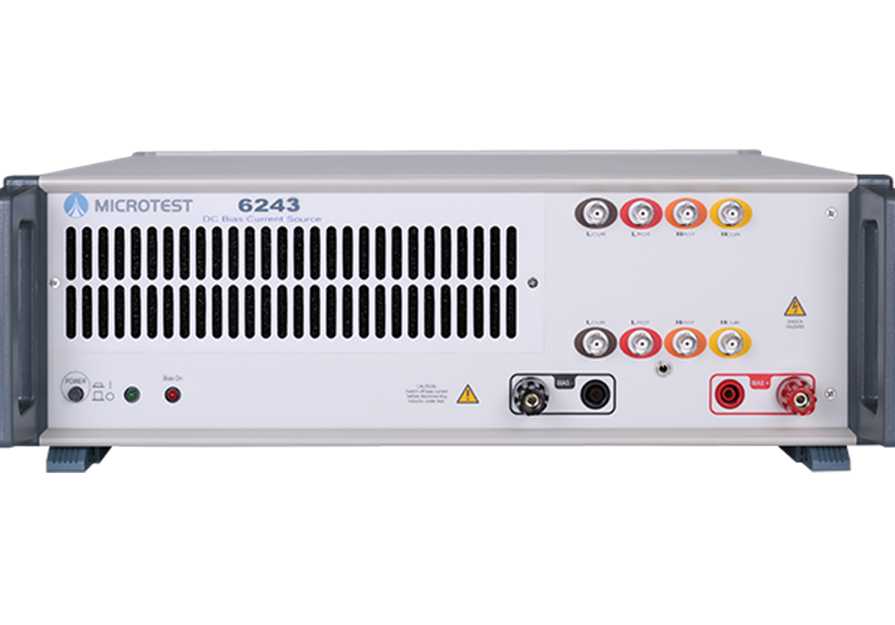

DC Bias Current Source|6243H/6243 (40A)
DC Bias Current Source
6243H/6243 (40A)
  • Up to 10MHz
  • Each individual unit can output DC Bias Current 40A (Max.640A)
  • Control by the LCR Meter or Impedance Analyzer
Inquiry Compare
DC Bias Current Source|6223 (20A)
DC Bias Current Source
6223 (20A)
  • Up to 10MHz
  • Each individual unit can output DC Bias Current 20A (Max.120A)
  • Control by the LCR Meter or Impedance Analyzer
Inquiry Compare
DC Bias Current Source|6225 (20A)
DC Bias Current Source
6225 (20A)
  • Up to 30MHz
  • Each individual unit can output DC Bias Current 20A (Max.20A)
  • Control by the LCR Meter or Impedance Analyzer
Inquiry Compare
DC Bias Current Source| 6240A (40A)
DC Bias Current Source
6240A (40A)
  • Up to 3MHz
  • Each individual unit can output DC Bias Current 40A (Max.320A)
  • Control by the LCR Meter or Impedance Analyzer
Inquiry Compare
DC Bias Current Source|6220 (20A)
DC Bias Current Source
6220 (20A)
  • Up to 1MHz
  • Each individual unit can output DC Bias Current 10A (Max.60A)
  • Control by the LCR Meter or Impedance Analyzer
Inquiry Compare
DC Bias Current Source|6210 (10A)
DC Bias Current Source
6210 (10A)
  • Up to 1MHz
  • Each individual unit can output DC Bias Current 10A (Max.60A)
  • Control by the LCR Meter or Impedance Analyzer
Inquiry Compare
