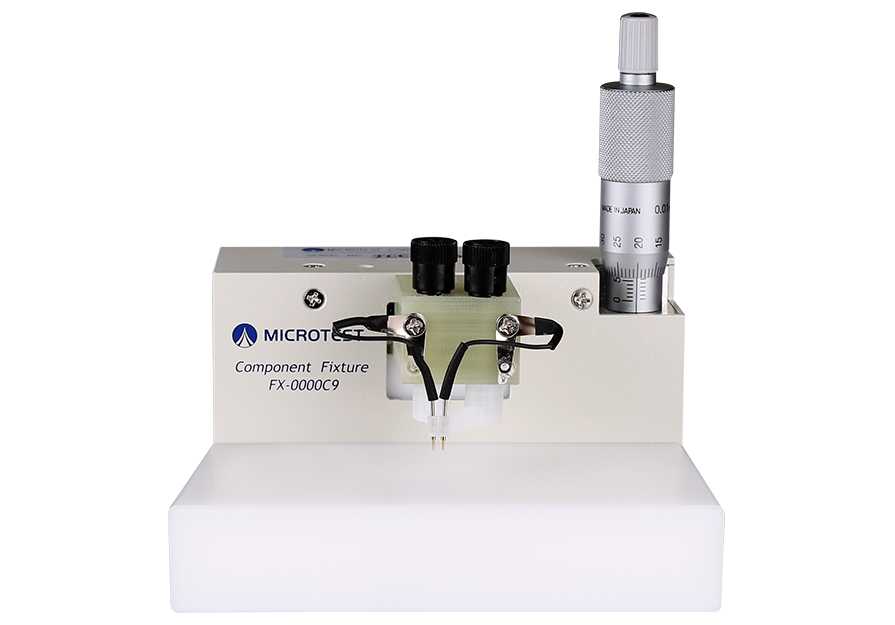

FX-0000C9 Test Fixture
FX-0000C9 Test Fixture
  • Terminal Connector:4-Terminal Pair, BNC
  • DUT Connection:2-Terminal
  • Dimensions (approx.):115x135x126mm (W/H/D)
  • Weight (approx.): 651g
  • Applicable Models: 6632、6630
  • Frequency:DC to 30 MHz
  • Max. Voltage: ±42 V peak max. (AC+DC)
  • Operating Temperature: 0°C to 55°C
  • DUT Size:≤10mm
Inquiry Compare

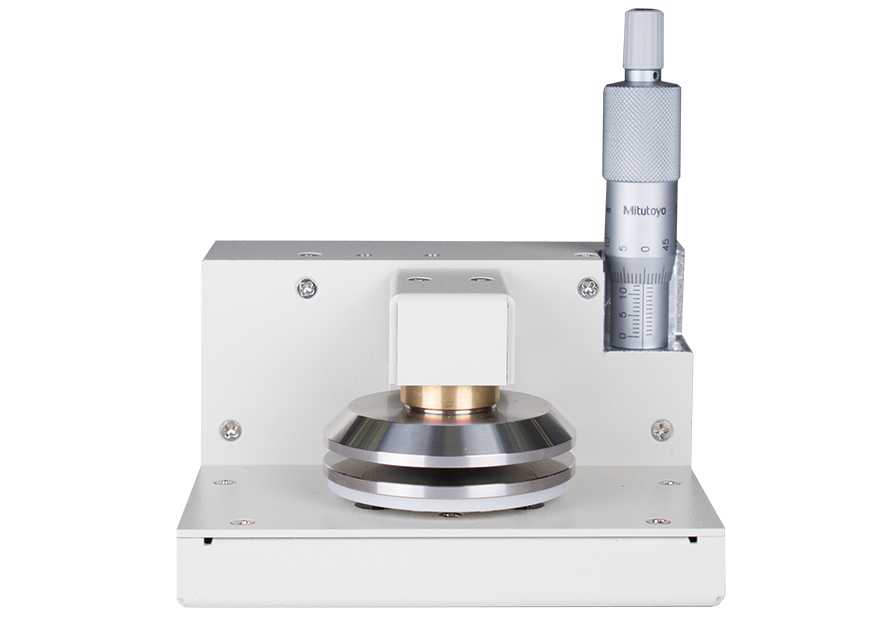

FX-0000C7 Dielectric Material Test Fixture
FX-0000C7 Dielectric Material Test Fixture
  • Terminal Connector:4-Terminal Pair, BNC
  • DUT Connection:2-Terminal
  • Dimensions (approx.):115x155x126mm (W/H/D)
  • Weight (approx.): 827g
  • Applicable Models: 6632、6630
  • Frequency:≤30MHz
  • Max. Voltage: ±42 V peak max. (AC+DC)
  • Operating Temperature: 0°C to 55°C
  • DUT Size:≤10mm
  • Electrode Diameter:38mm (Type A),5mm(Type B)
Inquiry Compare

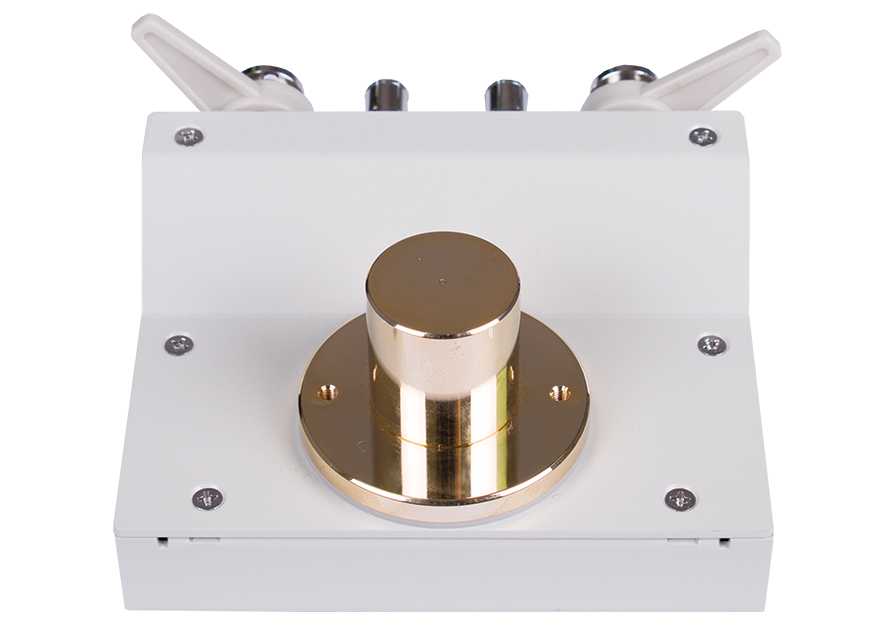

FX-0000C8 Magnetic Material Test Fixture
FX-0000C8 Magnetic Material Test Fixture
  • Terminal Connector:4-Terminal Pair, BNC
  • DUT Connection:4-Terminal
  • Dimensions (approx.):105x125x65mm (W/H/D)
  • Weight (approx.): 738g
  • Applicable Models: 6632、6630
  • Frequency:≤30MHz
  • Max. Voltage: ±42 V peak max. (AC+DC)
  • Operating Temperature: 0°C to 55°C
Inquiry Compare

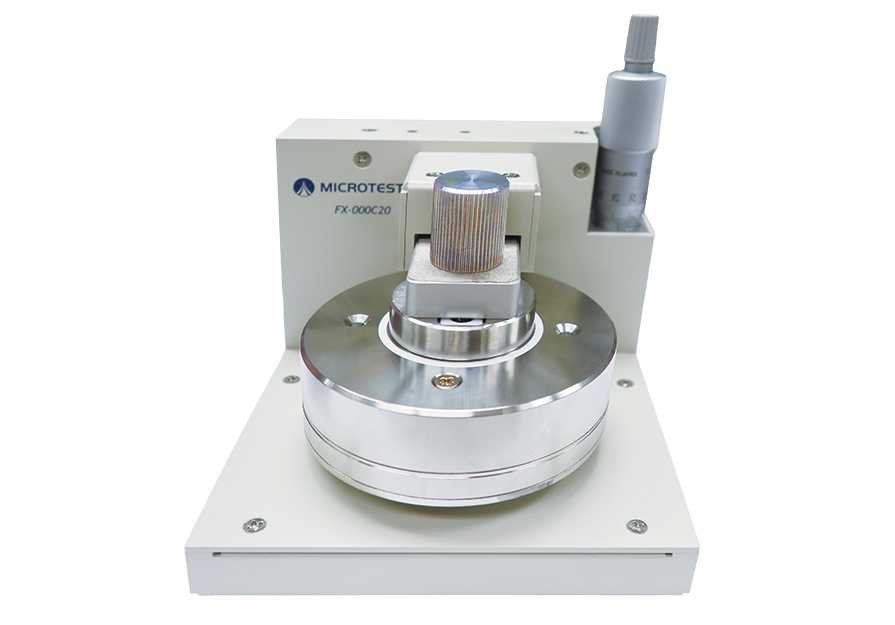

FX-000C20 Liquid Dielectric Material Test Fixture
FX-000C20 Liquid Dielectric Material Test Fixture
  • Terminal Connector:4-Terminal Pair, BNC
  • Dimensions (approx.):115x129.5x159mm (W/H/D)
  • Weight (approx.): 1650g
  • Applicable Models: 6632、6630
  • Frequency:≤30MHz
  • Max. Voltage: ±42 V peak max. (AC+DC)
  • Operating Temperature: 0°C to 55°C
  • Gap of electrodes:0.3/0.5/1/2/3/5 mm
  • Electrode Diameter:38mm
Inquiry Compare
