DC Bias Voltage Test Fixture

External Voltage Bias Fixture
DC Bias Voltage Test Fixture

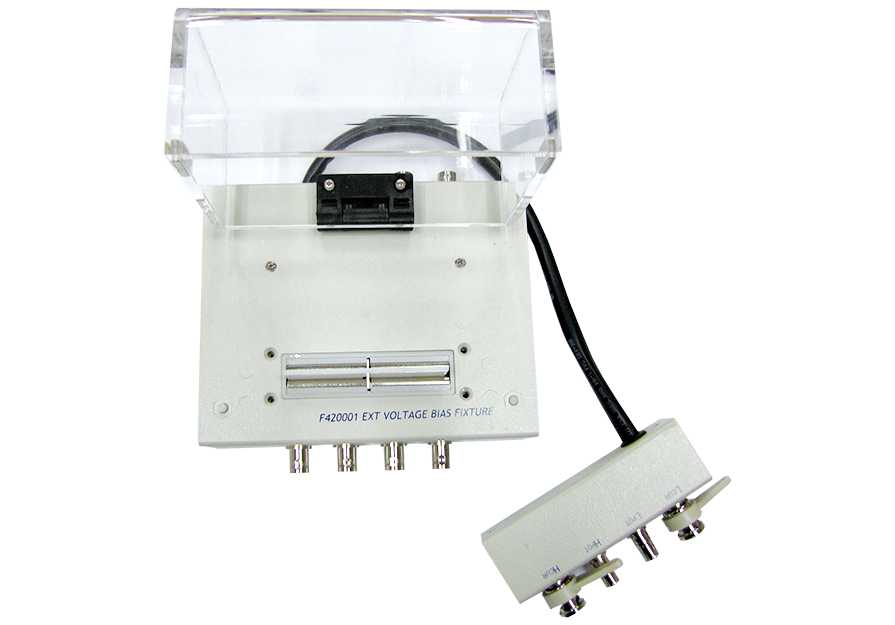

F420001 External Voltage Bias Fixture
F420001 External Voltage Bias Fixture
  • Terminal Connector:4-Terminal Pair, BNC
  • DUT Connection:4-Terminal
  • Dimensions (approx.):150x97x145mm (W/H/D)
  • Weight (approx.): 829g
  • Applicable Models: 6632、6630
  • Frequency:DC to 1MHz
  • Max. Voltage: ±200V peak max.(AC+DC)
  • Operating Temperature: 0°C to 55°C
  • DUT Size:Max.63mm、Min.3mm
Inquiry Compare
F420003 External Voltage Bias Fixture
F420003 External Voltage Bias Fixture
  • Terminal Connector:4-Terminal Pair, BNC
  • DUT Connection:4-Terminal
  • Applicable Models: 6632、6630
  • Frequency:DC to 1MHz
  • Max. Voltage: ±40V peak max.(AC+DC)
  • Operating Temperature: 0°C to 55°C
Inquiry Compare
F420006 External Voltage Bias Fixture
F420006 External Voltage Bias Fixture
  • Terminal Connector:4-Terminal Pair, BNC
  • DUT Connection:2-Terminal
  • Dimensions (approx.):180x150x115mm (W/H/D)
  • Applicable Models: 6632、6630
  • Frequency:DC to 1MHz
  • Max. Voltage: ±2000V peak max.(AC+DC)
  • Operating Temperature: 0°C to 55°C
Inquiry Compare

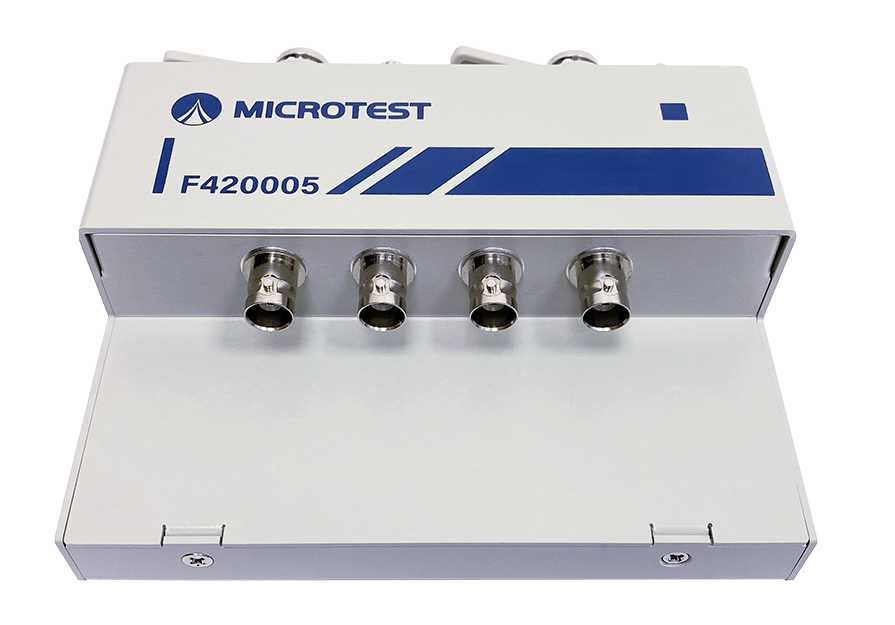

F420005 External Voltage Bias Fixture
F420005 External Voltage Bias Fixture
  • Terminal Connector:4-Terminal Pair, BNC
  • DUT Connection:4-Terminal
  • Dimensions (approx.):145x102x46mm(W/H/D)
  • Weight (approx.):396g
  • Applicable Models: 6632
  • Frequency:≤ 30 MHz
  • DC Bias Voltage/Current: ±40V / 100mA
  • Operating Temperature: 10° C to 40° C
Inquiry Compare
