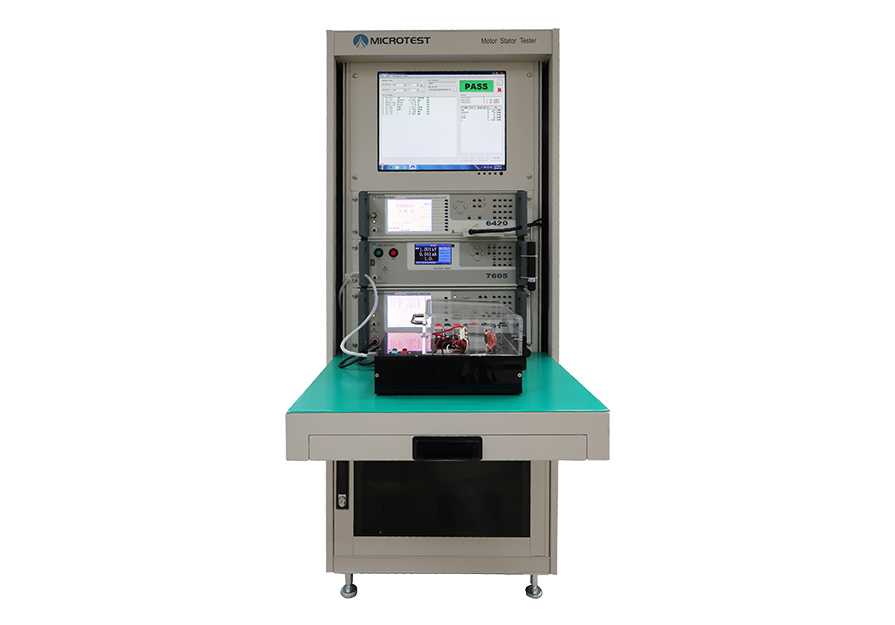

Motor Stator Testing System

MICROTEST MT-6917/MT-6913/MT-6910 Stator Testing System provides a one-stop testing system for motor stators, utilizing four-wire technology to measure DC resistance. It supports rotation (polarity) testing and integrates AC/DC withstand voltage, insulation impedance, interturn short circuit, and inductance measurement into one workstation. Customized test fixtures can be designed based on the customer's stator coil requirements.

MT-6917 supports 17 sets of test channel
MT-6913 supports 13 sets of test channel
MT-6910 supports 8 sets of test channel
Motor Stator Testing System
Motor Stator Testing System|MT-6917 (17 Channel)
Motor Stator Testing System
MT-6917 (17 Channel)
  • 17 Channels
  • Hipot/Leakage Current
  • Insulation Resistance
  • Winding Layer short Test
  • Three-Phase Current Balance Test(Option)
  • Steering test
  • Inductance Test
  • It can test multiple sets of DUTs simultaneously
  • 4-Wire DC Resistance measurement will be more accurate than others
  • The Impulse/Surge with waveform comparison is a non-destructive analysis
  • Chinese/English screen could be switched arbitrarily
Inquiry Compare
Motor Stator Testing System|MT-6913 (13 Channel)
Motor Stator Testing System
MT-6913 (13 Channel)
  • 13 Channels
  • Hipot/Leakage Current
  • Insulation Resistance
  • Winding Layer short Test
  • Steering test
  • Inductance Test
  • It can test multiple sets of DUTs simultaneously
  • 4-Wire DC Resistance measurement will be more accurate than others
  • The Impulse/Surge with waveform comparison is a non-destructive analysis
  • Chinese/English screen could be switched arbitrarily
Inquiry Compare
Motor Stator Testing System|MT-6910 (8 Channel)
Motor Stator Testing System
MT-6910 (8 Channel)
  • Hipot/Leakage Current
  • Insulation Resistance
  • Winding Layer short Test
  • Three-Phase Current Balance Test(Option)
  • Steering test
  • Inductance Test
  • It can test multiple sets of DUTs simultaneously
  • 4-Wire DC Resistance measurement will be more accurate than others
  • The Impulse/Surge with waveform comparison is a non-destructive analysis
  • Chinese/English screen could be switched arbitrarily
Inquiry Compare
