Motor Stator Testing System
MT-6910 (8 Channel)

Motor Stator Testing System|MT-6910 (8 Channel)
Features
  • Hipot/Leakage Current
  • Insulation Resistance
  • Winding Layer short Test
  • Three-Phase Current Balance Test(Option)
  • Steering test
  • Inductance Test
  • It can test multiple sets of DUTs simultaneously
  • 4-Wire DC Resistance measurement will be more accurate than others
  • The Impulse/Surge with waveform comparison is a non-destructive analysis
  • Chinese/English screen could be switched arbitrarily

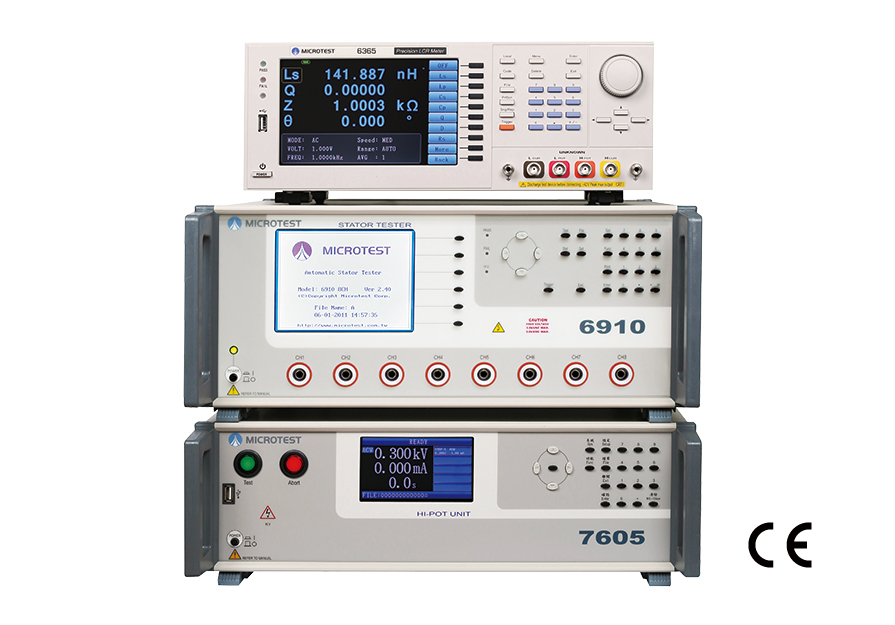

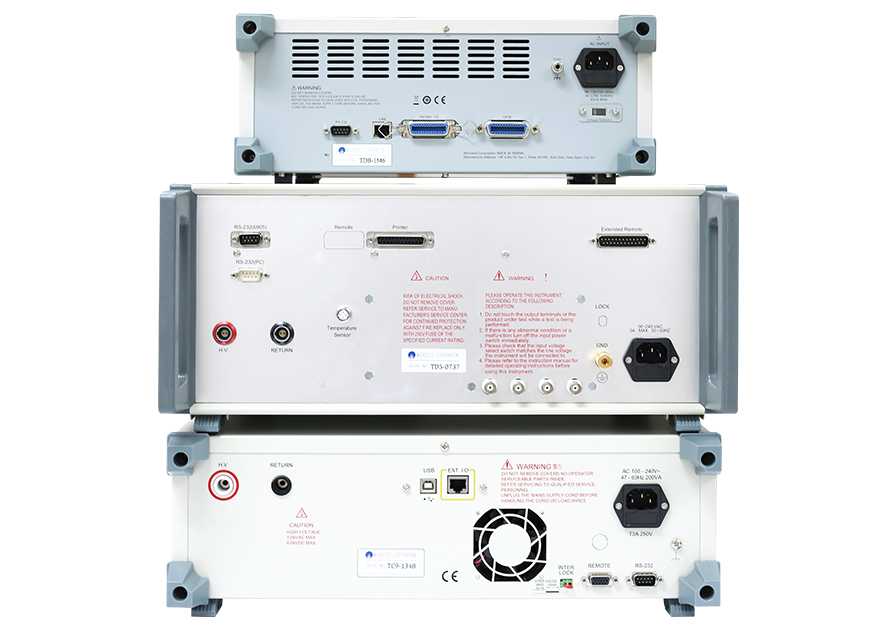

MICROTEST MT-6910 Motor Stator Testing System integrates the Interlayer Short-Circuit Tester (6910), the High Voltage Withstand Tester (7605), and the LCR Tester (6365), with the 6910 serving as the main controller. It is capable of setting up all measurement parameters and provides 8 test channels. The external PC software allows for real-time data retrieval from the 6910, generating reports, or directly uploading test results to a database.

This all-in-one integrated system covers safety compliance, high-voltage insulation, and coil interlayer short-circuit testing for motor stators. It can measure motor stator polarity (rotation test) using precise four-wire resistance measurement technology. Additionally, it supports three-phase current balance testing (optional). The system can be equipped with PC connectivity software for data storage and can be configured with PLC control. Customized test fixtures can be provided for specific customer stators. Furthermore, it offers an optional LCR Meter for measuring the stator's inductance values with a test frequency range of 10Hz to 200kHz, supporting three-phase balanced inductance testing.

Specifications

Selection

MICROTEST stator testing solution can be tailored into a complete testing system based on different requirements. Firstly, you can evaluate whether to opt for a rack-mounted or desktop configuration, as well as whether to incorporate PC connectivity.



System Benchtop Rack







Evaluate whether to include PC connectivity software.
Function Operate directly on the instrument  PC Link
Production Traceability Management - Implementing Bar Code/Label Printer/Laser Engraver /
Store test file sets

100 sets (existing instruments)

Unlimited (according to PC memory)

Sharing test files between devices

Unable to share, recreate the file

Share through PC software

Accessing test data /

Transfer test data to the PC via the RS-232 interface

Uploading test data to a cloud database /
User Permission Management" or "User Access Control

/



Supports permission management, configuration through Engineering Mode

CPK Report

/





Customized CPK Report According to Customer Requirements /



SPEC

 Model  MT-6917  MT-6913  MT-6913L  MT-6910
 Test Channel  17 13  13
 DCR Range  0.1mΩ-100kΩ  0.1mΩ-100kΩ  0.1mΩ-150Ω  0.1mΩ-100kΩ
DCR Accuracy

Low Resistance

0.1mΩ-1Ω

±(0.2%±1mΩ)

Low Resistance

0.1mΩ-1Ω

±(0.2%±1mΩ)

Low Resistance

0.1mΩ-200mΩ

±(0.1%±0.5mΩ)

Low Resistance

0.1mΩ-1Ω

±(0.2%±1mΩ)

High Resistance

1Ω-100KΩ

±0.1%





High Resistance

1Ω-100KΩ

±0.1%





High Resistance

200mΩ-1Ω

±(0.1%±2mΩ

1Ω-150Ω

±0.5%

High Resistance

1Ω-100KΩ

±0.1%







SPEC

Model MT-6910
DC Resistance Test
DCR Range 0.1mΩ-100kΩ
Measuring Mode 4-Wire
Safety Hi pot Test
AC Output Voltage 100V-5000V
AC Leakage Current 0.001mA-10mA
AC Arcing Detection Detect gears from 0-9
DC Output Voltage 100V-6000V
DC Leakage Current 0.001mA-5mA
DC Arcing Detection Detect gears from 0-9
IR Output Voltage 100V-1000V
Insulation Resistance 1-9999MΩ
Measuring Time 0.1-99.9s Continuously adjustable
Voltage Accuracy ±(3% of setting+5V)
Impulse Winding Test
Impulse Voltage (programmable) 200V-5000V
Impulse Voltage Accuracy ±2%
Total area comparison

When layer short happened, the loss of power on coil increase, the resonance damping coefficient increase, resonance amplitude decrease, the total area decrease. These are the basic parameters we check layer short.

By calculating and comparing the deference of area between golden sample and DUT.
Show by percentage
Analysis the power loss by this data.

Differential area comparison

Add up the difference between normal wave and DUT wave call “ Area differential”.
When layer short happened, the inductance reduce(similar the transformer). The wave phase change and the area differential also change. This will show “fail” on the instrument.
However, the parameter might cause deviation because of the deviation of inductance, resonance phase shift. (Silicon steel product such as motor and traditional transformer is not suitable)

By calculating and comparing the deference of area between golden sample and DUT. To determine the degree of waveform overlap.
Compare the inductance by this.

Wave comparison Set a acceptable wave range, if the DUT’s wave is in this range shows “pass” otherwise, “fail”
This parameter can judge both amplitude and phase of resonance wave. This can increase the detection capability of layer short.
Corona comparison In pulse test, the insulation defect will cause discharge and create corona. This function is able to count the times that corona happened base on the degree of deviation.
Detect the discharge phenomenon on the coil.
Flat comparison If the layer short happened, the waveform will tremble. Therefore, the instrument will quantize and compared it.
Inductance Measurement (Option LCR Meter 6365)
Inductance Ranges 0.1nH - 99.999KH
Test Frequency 10Hz-200kHz
Frequency Output Accuracy ±0.01%
Frequency Resolution 5 Digits
AC Drive Level 10mV to 2Vrms (1m Vrms resolution)
Basic Accuracy ±0.1%
Three-phase Inductance Balance Test

Comparison Mode

  • The absolute value of the difference between the two sets of coil inductance



  • The ratio of the absolute value of the difference between the two sets of coil inductance to the standard value



  • The ratio of the absolute value of the difference between the inductance of the two sets
    of coils and the average value of the measured resistance of the three sets of coils



SYSTEM

Test fixture According to the test requirements
Indicator Pass/Fail Screen Diaplay/Sound
Built-in Storage Storage of 100 rewritable data sets
Operation Manual, RS-232
Power Supply Voltage 90-132Vac or 198-264Vac
Frequency 50/60Hz
Power consumption 300VA
Environment Temperature 10℃-40℃
Humidity 20-90%RH
Display 6910 5.7" dot-matrix display (320*240)
6505 4.3" TFT LCD (480*272)
6365 7.0" TFT (800*480)

Dimension

(W*H*D)

6910 435x190x522mm
7605 435x145x522mm
6365 435x145x522mm
Weight 6910 15 Kg
7605 14 Kg
6365 3 Kg
Interface RS-232
