F423906B Kelvin Clip Leads

F423906B Kelvin Clip Leads
Features





  • Terminal Connector:4-Terminal Pair, BNC
  • DUT Connection:4-Terminal
  • Cable Length(approx.):50cm (RG174)
  • Weight (approx.): 178g
  • Applicable Models: 6363~6367、6632、6630
  • Frequency:DC to 1 MHz
  • Max. Voltage: ±42 V peak max. (AC+DC)
  • Operating Temperature: 0°C to 55°C

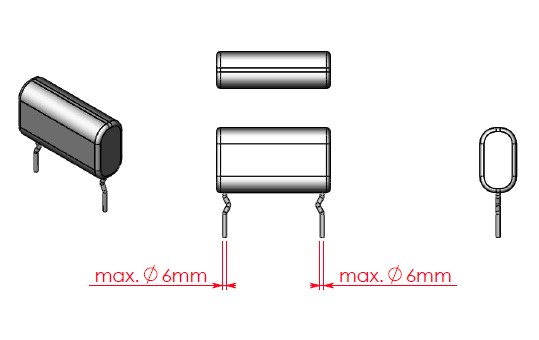

  • DUT Size:Max.6mm

Specifications

  • Size

  • Frequency
100kHz 1MHz 3MHz 5MHz 10MHz 20MHz 30MHz 50MHz
