FX-000C19 DIP Test Fixture
Features
Datasheet
Inquiry
Terminal Connector:4-Terminal Pair, BNC
DUT Connection:4-Terminal
Dimensions (approx.):96x34x49mm (W/H/D)
Weight (approx.): 170g
Applicable Models: 6363~6367、6632、6630
Frequency:DC to 50 MHz
Max. Voltage: ±42 V peak max. (AC+DC)
Operating Temperature: 0°C to 55°C
DUT Size:Max.4mm
Application
Accessories
Download
Video
Specifications

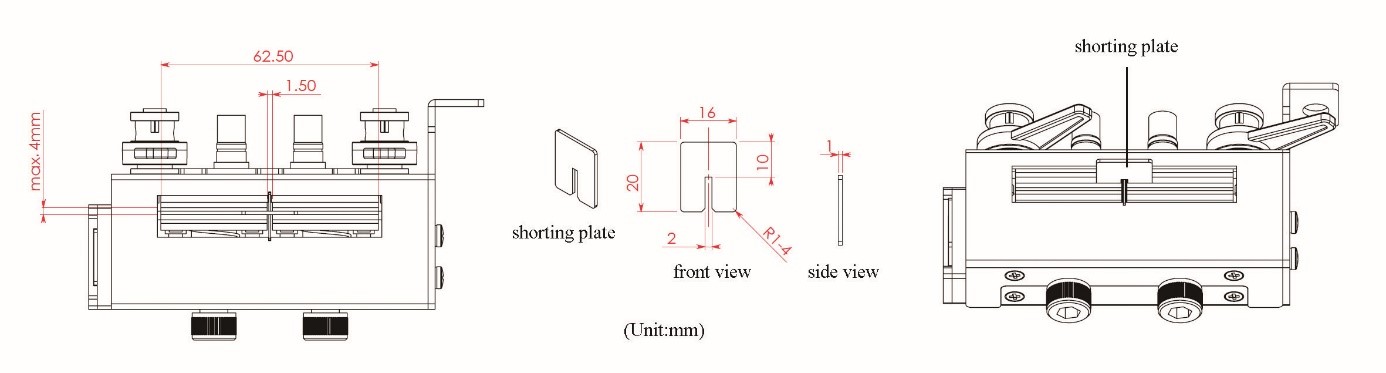

Size
Frequency
100kHz
1MHz
3MHz
5MHz
10MHz
20MHz
30MHz
50MHz
Search
Contact Us
×
Country
Application
×
Application

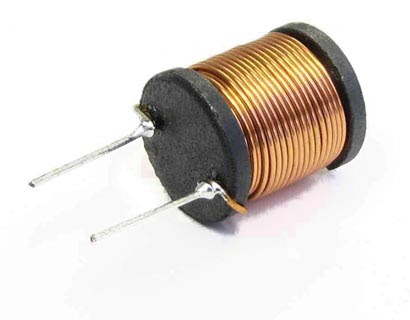

DIP
Accessories
×
Selection
6363 / 6364 / 6365 / 6366 / 6367 / 6365A / 6365B
6630
6632
