Wireless Charger Automatic Test System
9901

Wireless Charger Automatic Test System|9901
Features
Datasheet Inquiry
  • Support PD 2.0, QC 2.0/3.0 protocols
  • Support FOD test (foreign object detection)
  • Provide statistical analysis report function
  • Suitable for DC-DC power supply product test (power 150W)
  • Provide a variety of expansion cards to quickly upgrade to more test functions
  • Equipped with double switching test fixture to switch left and right for highly efficient tests

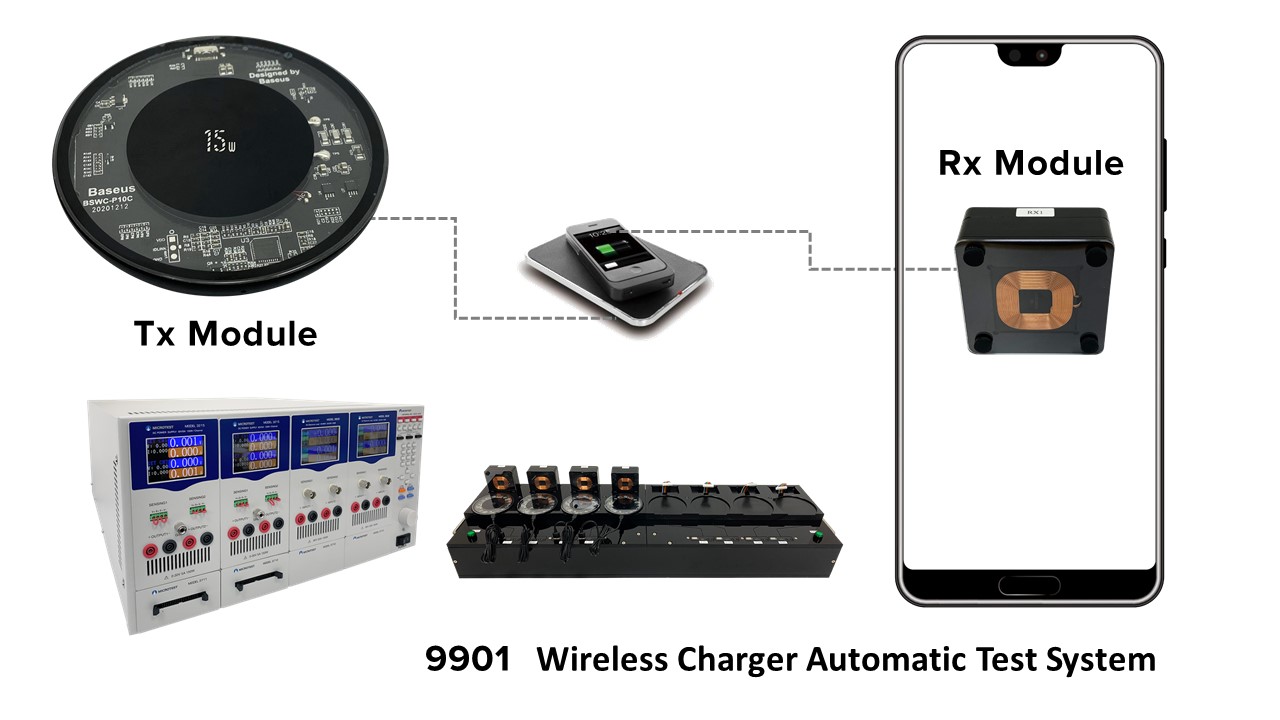

The MICROTEST 9901 wireless charger automatic testing system offers a high cost-performance ratio, making it suitable for production lines to quickly adapt to automated testing. It is designed for testing finished or semi-finished modules of wireless chargers with a power rating of up to 150W. The system supports PD/QC protocols and Foreign Object Detection (FOD). It provides up to 44 channels for testing and comes with dual-cut testing fixtures.

The system covers essential testing items for wireless chargers, including no-load standby power measurement (voltage/current/power), output load and efficiency testing (voltage/current/efficiency/power), and protection testing (overvoltage/overcurrent/under voltage protection, output short circuit protection, FOD detection).

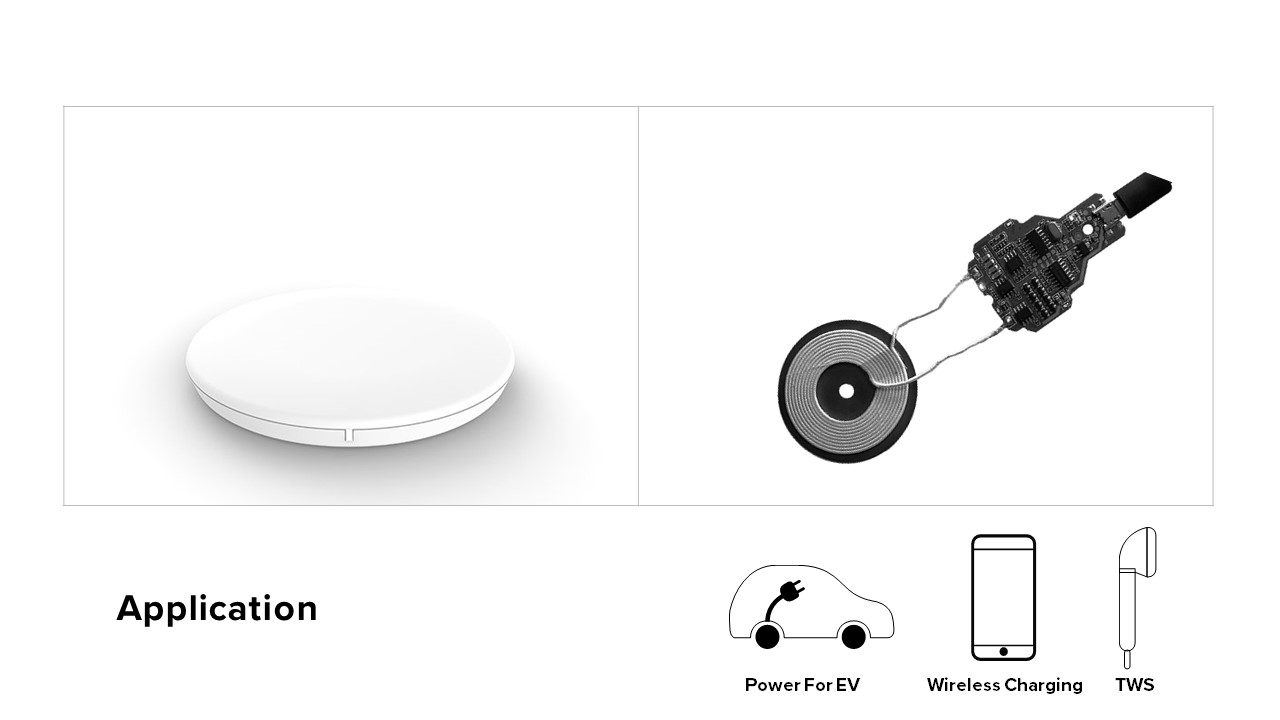

Application
Accessories
Download
Video

Specifications

SPEC

9901 Wireless Charger Automatic Test System

DC Source

Power supply on

transmitting side (Tx)

 Measuring Range - voltage 0-30V
Voltage Accuracy ±(0.1% of setting +20mV)
Voltage Resolution 0.01V
Measuring Range - current 0-5A
Current Accuracy ±(0.1% of setting +20mA)
Current Resolution 0.001A
QC protocol - programmable Compliant to QC 2.0, 3.0 protocols
PD protocol - programmable Compliant to PD 2.0 protocol
PD protocol - programmable 30mVp-p

DC Load

Loads on receiving side (Rx)

 Measuring Range - voltage 0-80V
Voltage Accuracy ±(0.025%+0.025%FS)
Voltage Resolution 0.02V
Measuring Range - current 0-20A
Current Accuracy 0.05%+0.05%FS
Current Resolution

High positions: 0.005A,

Low positions: 0.0005A
Power 150W
Test modes CC/CV/CR/CP
Wireless charger test items
  • Displacement sensing test of wireless charger
  • Foreign object detection test (FOD)
  • Voltage test of wireless charger
  • Current test of wireless charger
  • Power test of wireless charger
  • Standby power test of wireless charger
  • Voltage/Current/Power tests for the protocols of wireless charger
  • Induced current test on receiving side when applying load on receiving side
  • Induced current test on receiving side when applying load on receiving side
  • Induced power test on receiving side when applying load on receiving side
  • Efficiency test of wireless charger
  • Fast charging voltage test of the receiver
  • Output short-circuit test and recovery test of wireless charger
  • Output over-current test and recovery test of wireless charger
  • Input over-voltage protection test of wireless charger
  • Input under-voltage protection test of wireless charger
  • Barcode function
  • Connect to MES system

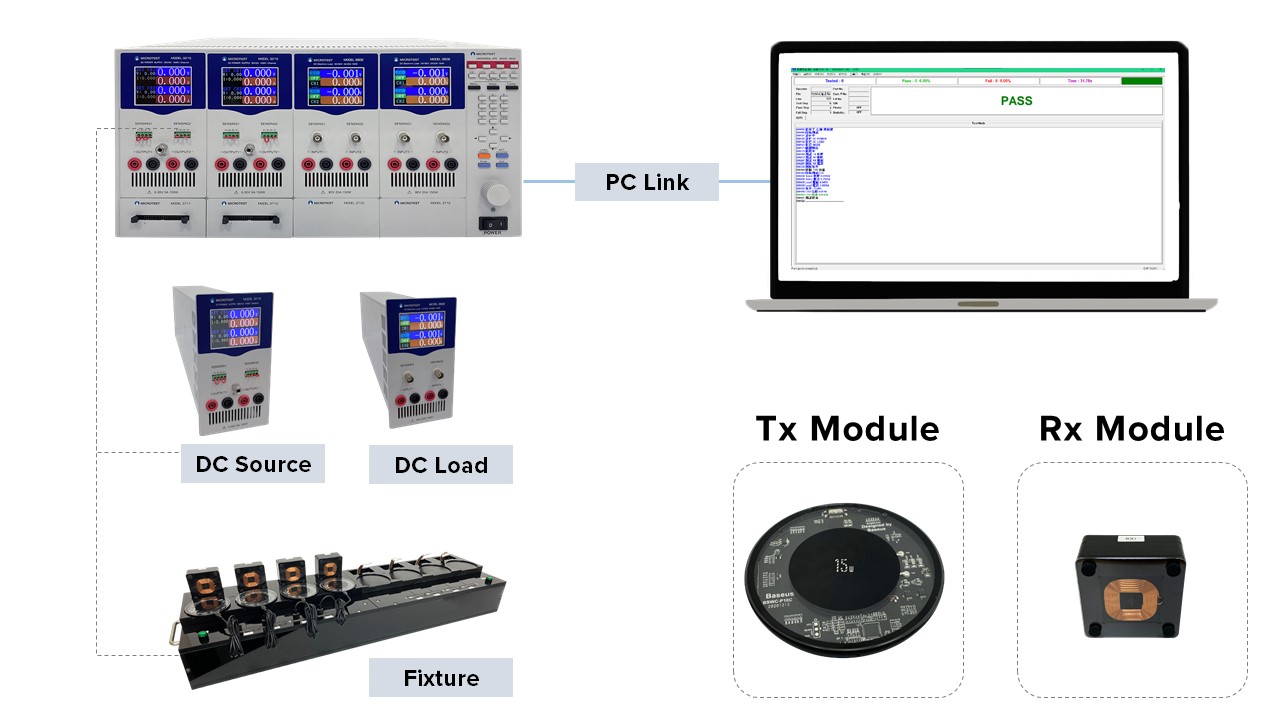

System Configurations

9901 Wireless Charger Automatic Test System (4 channels)
Instrument Model Quantity SPEC

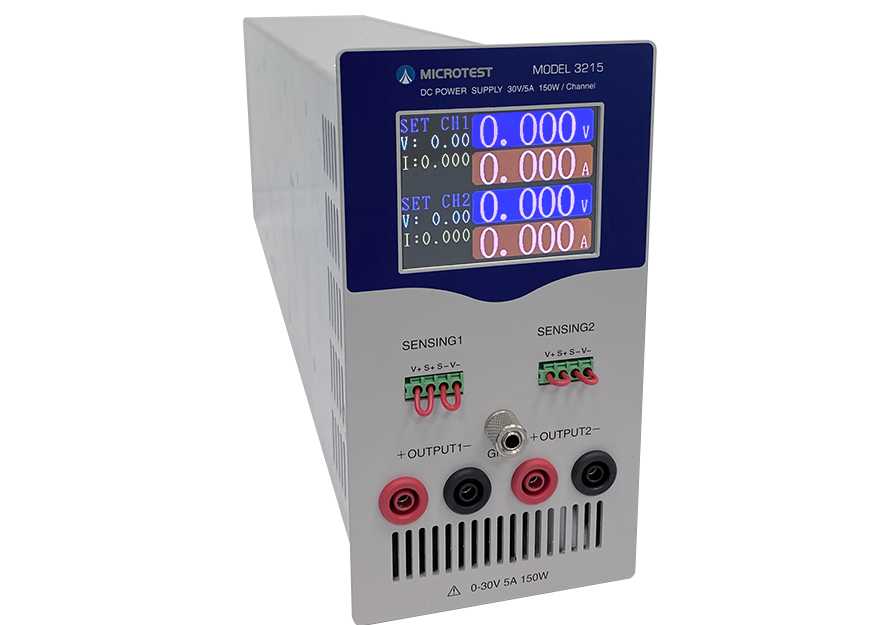

Programmable DC power supply 3215 2 Power: 150W, Voltage: 0-30V, Current: 0-5A

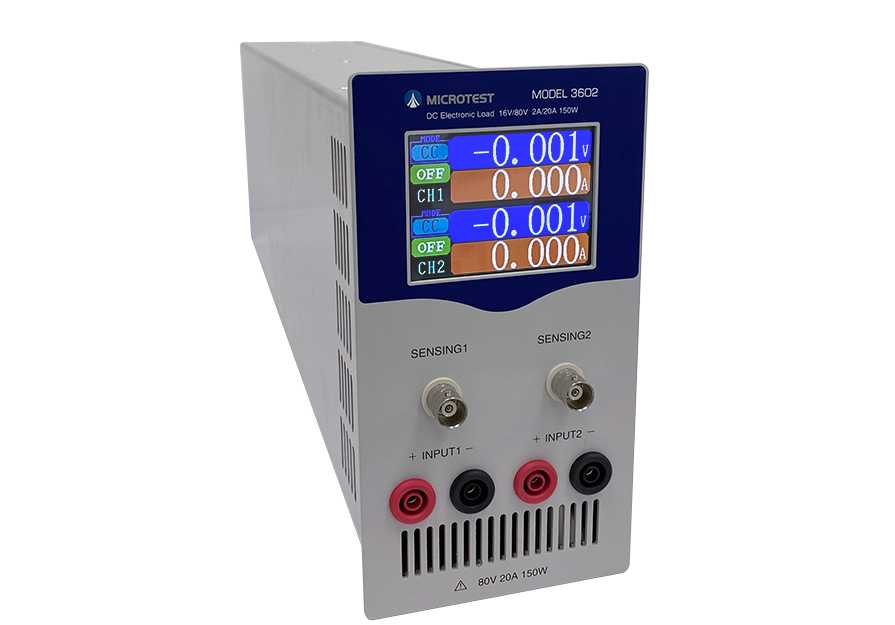

Programmable DC electronic load 3602 2
  • Power

         150W, Voltage: 0-80V/Current: 0-20A

  • With CC/CV/CR/CP test modes
Industrial computer/NB Types can be selected 1 Select based on customer’s needs

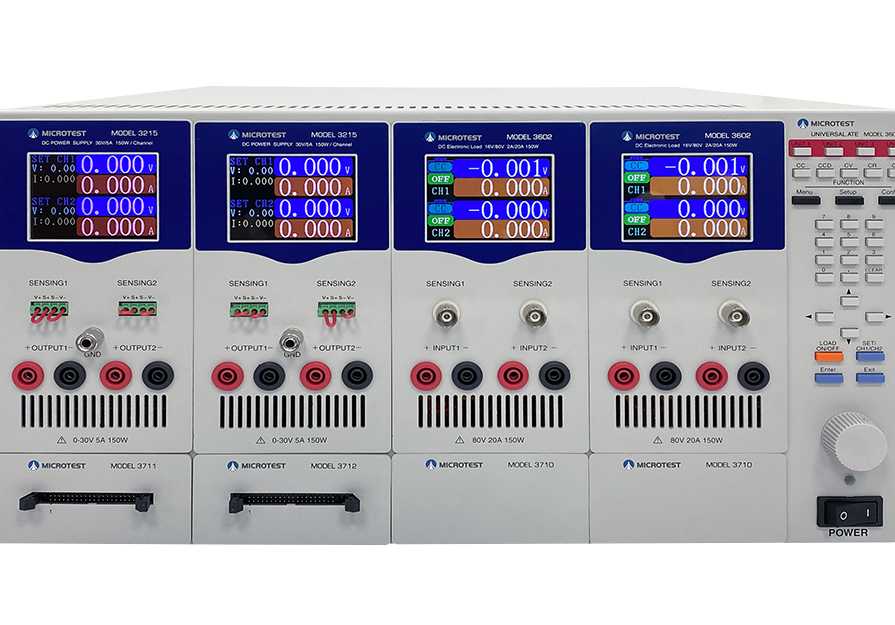

Modular chassis for instruments 3600 1 Height: 5U
Test software PT960F 1 Dedicated software for wireless charger products automatic testing
Function expansion card 3711 1 Function expansion for QC/PD and other protocols

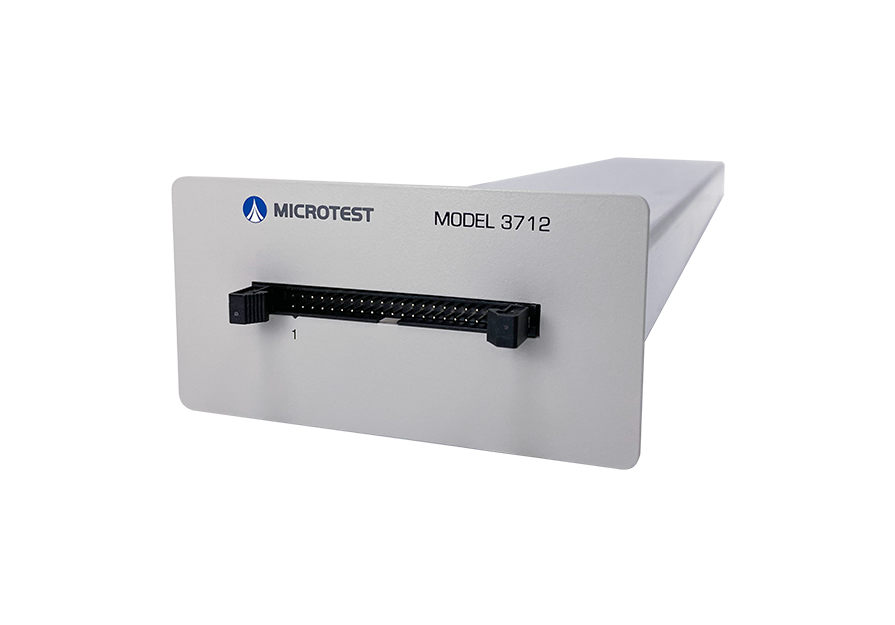

Control card 3712 1 Control indicators, FOD test

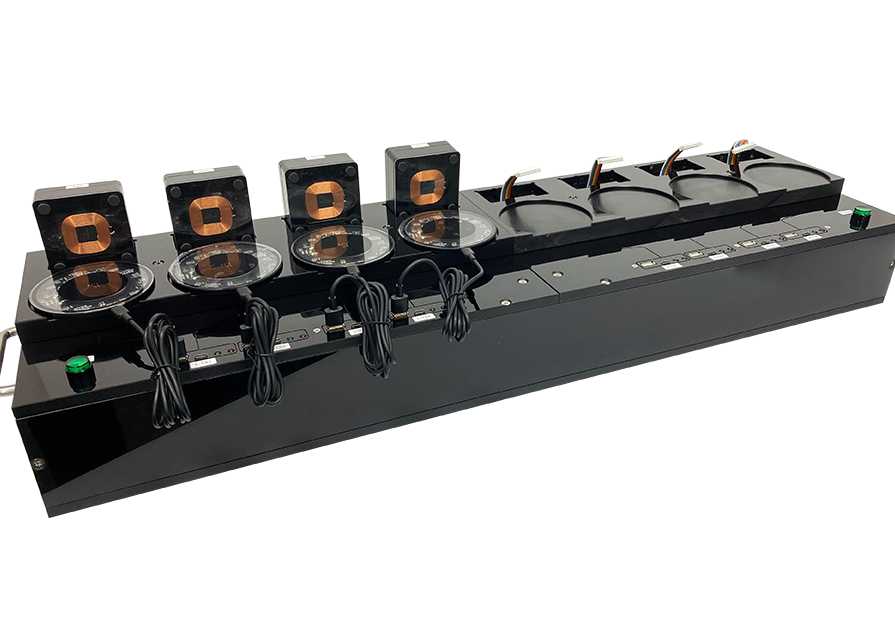

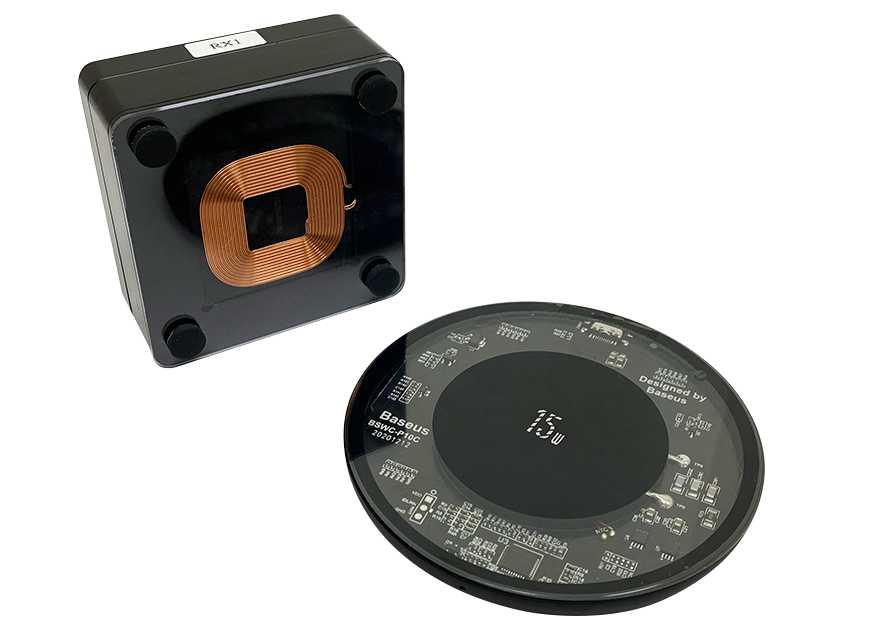

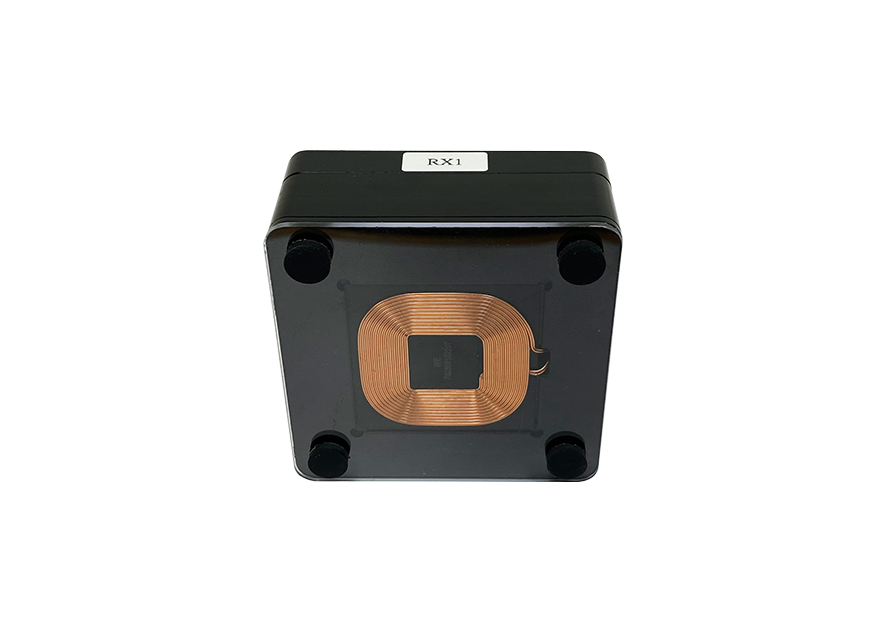

Test fixtures Customized 1 Test fixtures for wireless charging modules/wireless chargers
System cabinet/desktop 9901/3600 1 Including power supply jack and related communication cables



SYSTEM

Storge By PC
Power Supply Voltage (fixed) 90-264Vac
Frequency 50-60Hz±5%
  Power consumption 300VA
  Environment Temperature 0℃-40℃
Humidity 0-80%RH
Display LCD (320*240) (3215/3602)
  Dimension (W*H*D) 432x234.6x533 mm (3600)
  Weight 31 Kg (4 Channels,3600)

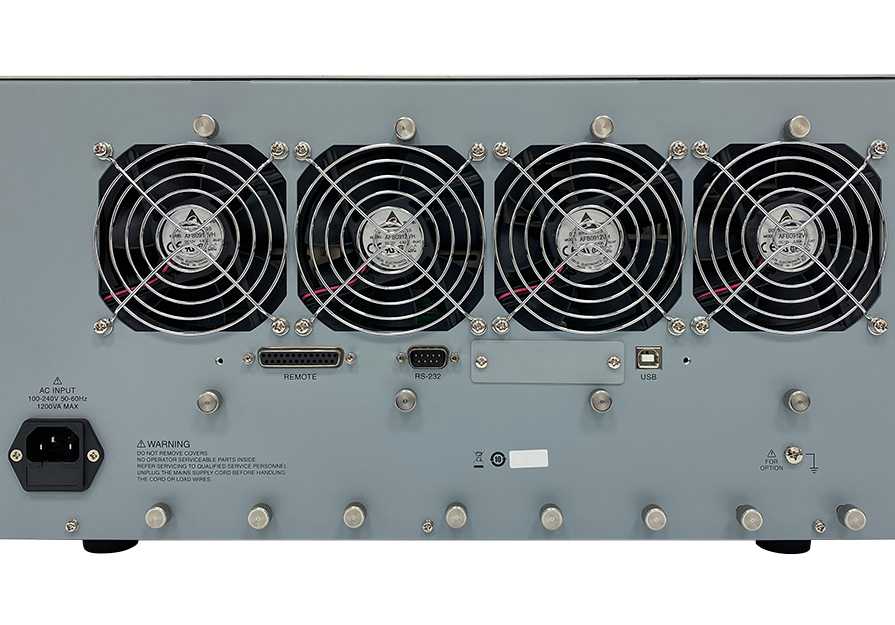

Interface RS-232, USB Device
