FX-0000C9 Test Fixture
FX-0000C9 Test Fixture
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：2-Terminal
  • Dimensions (approx.)：115x135x126mm (W/H/D)
  • Weight (approx.)： 651g
  • Applicable Models： 6632、6630
  • Frequency：DC to 30 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：≤10mm
Inquiry Compare
FX-000C10 Bottom Electrode SMD Test Fixture
FX-000C10 Bottom Electrode SMD Test Fixture
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：2-Terminal
  • Dimensions (approx.)：91x80x98mm (W/H/D)
  • Weight (approx.)： 237g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 30 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：≤9x9x5mm (W/H/D)
Inquiry Compare

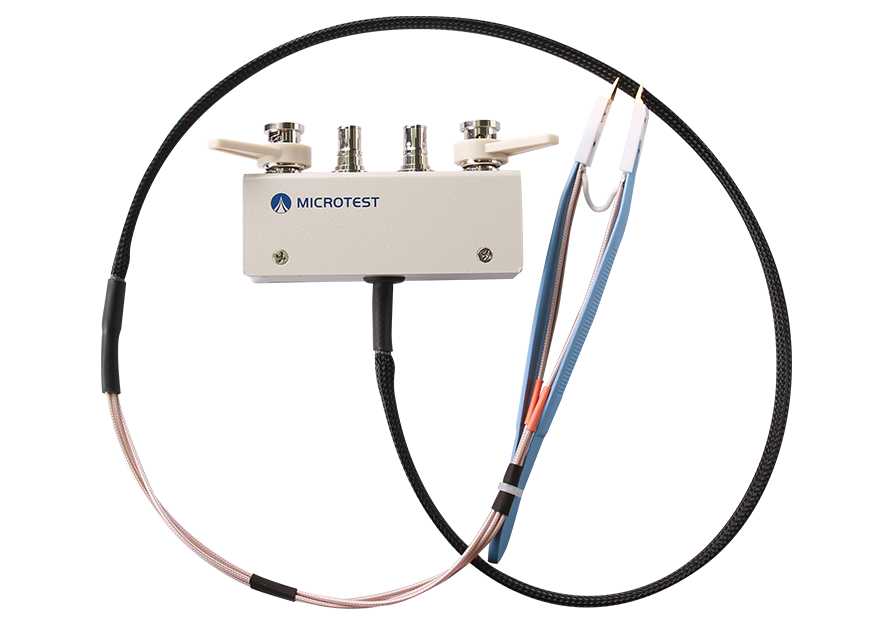

FX-000C11 SMD Tweezers Test Leads
FX-000C11 SMD Tweezers Test Leads
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Weight (approx.)：1m (RG178)
  • Weight (approx.)： 170g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 10 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：≤10mm
Inquiry Compare

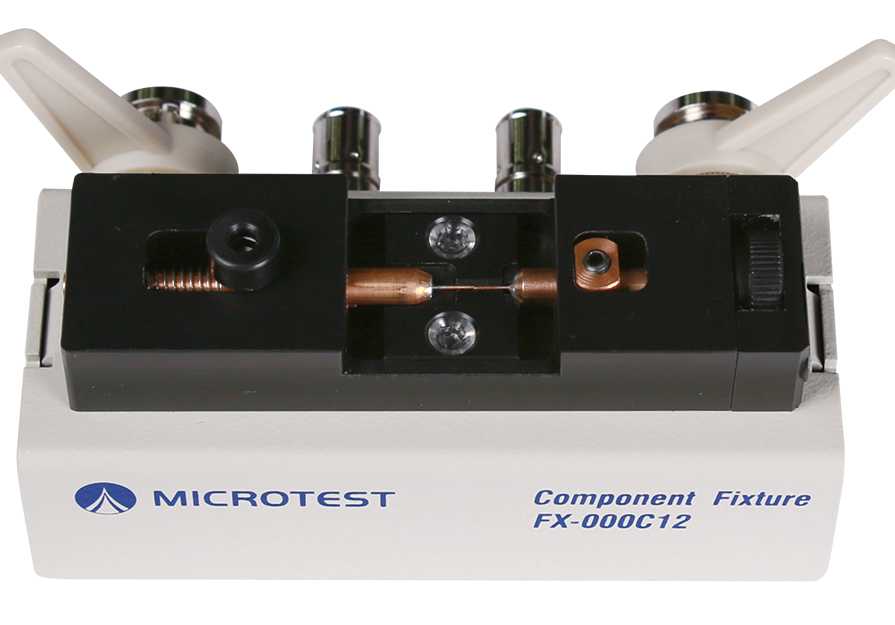

FX-000C12 SMD Test Fixture
FX-000C12 SMD Test Fixture
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：2-Terminal
  • Dimensions (approx.)：91x42x57mm (W/H/D)
  • Weight (approx.)： 148g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 30 MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：≤7mm
Inquiry Compare

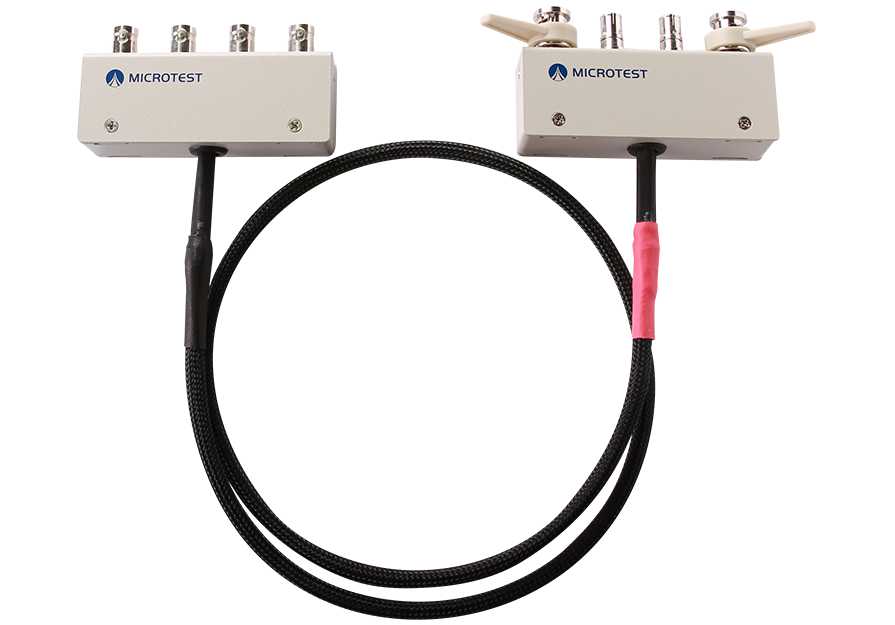

F663001 A/B/C BNC Test Leads
F663001 A/B/C BNC Test Leads
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Cable Length(approx.)：0.5m/1m/2m (A/B/C, RG174)
  • Weight (approx.)： 152g
  • Applicable Models： 6363~6367、6632、6630
  • Frequency：DC to 20MHz/10MHz/5MHz (A/B/C)
  • Max. Voltage：±200V peak max.(AC+DC)
  • Operating Temperature： 0°C to 55°C
Inquiry Compare
FX-0000C7 Dielectric Material Test Fixture
FX-0000C7 Dielectric Material Test Fixture
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：2-Terminal
  • Dimensions (approx.)：115x155x126mm (W/H/D)
  • Weight (approx.)： 827g
  • Applicable Models： 6632、6630
  • Frequency：≤30MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：≤10mm
  • Electrode Diameter：38mm (Type A),5mm(Type B)
Inquiry Compare
FX-0000C8 Magnetic Material Test Fixture
FX-0000C8 Magnetic Material Test Fixture
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Dimensions (approx.)：105x125x65mm (W/H/D)
  • Weight (approx.)： 738g
  • Applicable Models： 6632、6630
  • Frequency：≤30MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
Inquiry Compare
FX-000C20 Liquid Dielectric Material Test Fixture
FX-000C20 Liquid Dielectric Material Test Fixture
  • Terminal Connector：4-Terminal Pair, BNC
  • Dimensions (approx.)：115x129.5x159mm (W/H/D)
  • Weight (approx.)： 1650g
  • Applicable Models： 6632、6630
  • Frequency：≤30MHz
  • Max. Voltage： ±42 V peak max. (AC+DC)
  • Operating Temperature： 0°C to 55°C
  • Gap of electrodes：0.3/0.5/1/2/3/5 mm
  • Electrode Diameter：38mm
Inquiry Compare
F420001 External Voltage Bias Fixture
F420001 External Voltage Bias Fixture
  • Terminal Connector：4-Terminal Pair, BNC
  • DUT Connection：4-Terminal
  • Dimensions (approx.)：150x97x145mm (W/H/D)
  • Weight (approx.)： 829g
  • Applicable Models： 6632、6630
  • Frequency：DC to 1MHz
  • Max. Voltage： ±200V peak max.(AC+DC)
  • Operating Temperature： 0°C to 55°C
  • DUT Size：Max.63mm、Min.3mm
Inquiry Compare
